034 Motorsport 190mm crank pulley for B8 3.0T

This 190 mm 034 Motorsport crankshaft pulley for the 3.0 TFSI supercharger is compatible with the Audi S4/S5/Q5/SQ5 B8/B8.5 and Audi A6/A7 C7. It is a simple way to increase the supercharger's rotational speed in order to provide more power to your engine.

This kit works with both the original supercharger pulley and the 034-145-Z034 supercharger pulley upgrade.

The 034Motorsport 3.0 TFSI Supercharger 190 mm crankshaft pulley upgrade is machined from a single piece of 6061-T6 aluminum and anodized black for an attractive, corrosion-resistant finish.

This design is 62% lighter than the stock pulley, significantly reducing rotating weight and parasitic losses.

It is a one-piece inner and outer pulley, not a “stack” of pulleys, which adds rotating weight.

Used alone, this kit is an easy upgrade that can be used with the Dynamic+ B8/B8.5 3.0 TFSI Performance Software Stage 2.

When used in combination with the 034Motorsport 3.0 TFSI supercharger pulley (Ref. 034-145-Z034), the Dynamic+ B8/B8.5 3.0 TFSI Performance Software Stage 2+ is recommended.

Crankshaft pulley features:

• Machined from a single piece of 6061-T6 aluminum
• Black anodized with laser etching for a durable finish
• Reduced parasitic losses - 62% lighter than the stock pulley
• Complete inner and outer pulley, not just a pulley “cover” that adds weight
• Can be used in place of the upper pulley for easy Stage 2 installation
• Can be used with the upper pulley for Stage 2+

Dynamic+ supercharger belt features:

• Increased strength compared to OEM equipment
• High heat resistance
• Designed to withstand high speeds, supercharging, and rapid acceleration
• 7-rib, micro-V belt manufactured to strict OEM dimensional specifications
• Aramid fiber reinforcement - does not stretch
• Anti-squeal design

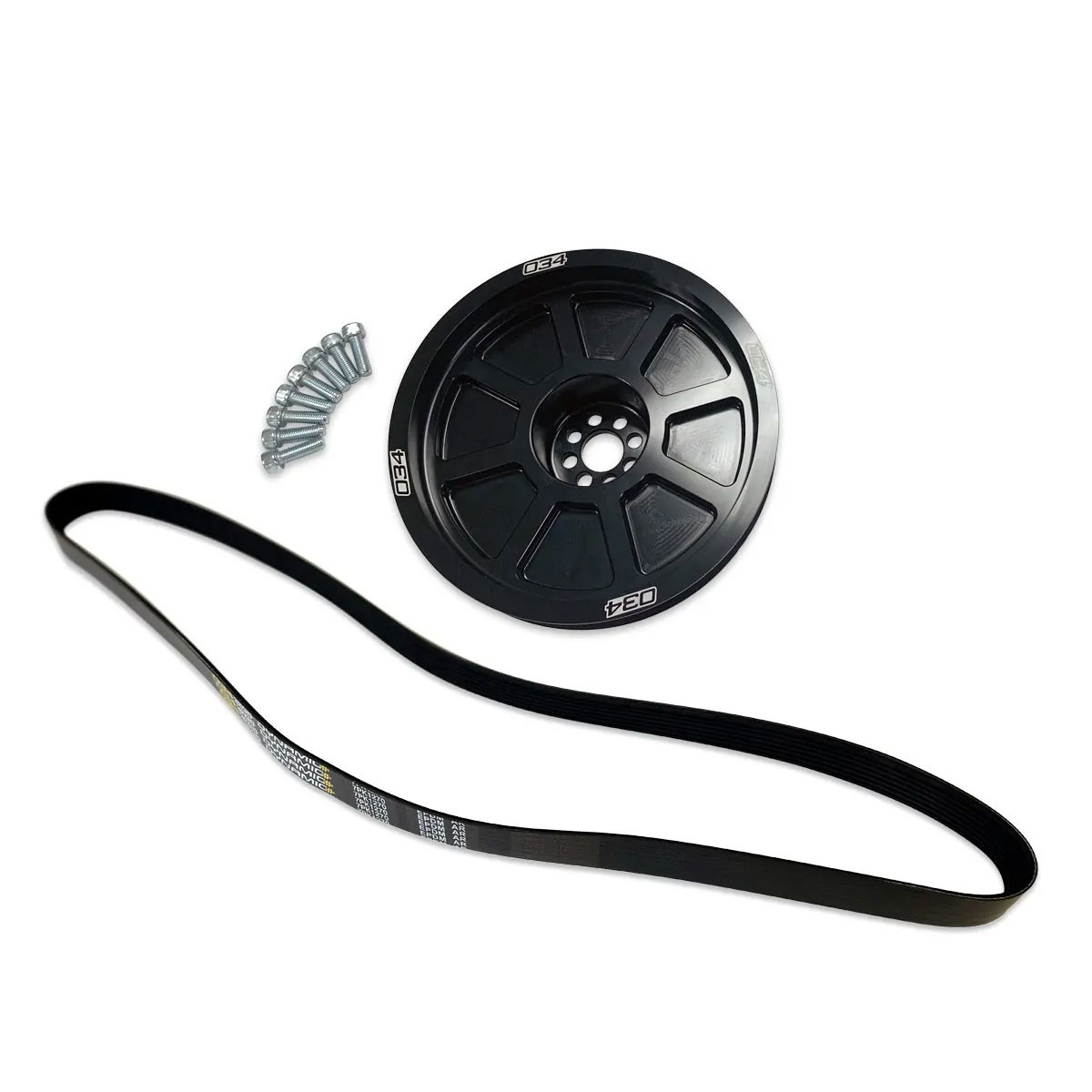

Contents

• 034Motorsport B8 3.0 TFSI 190 mm crankshaft pulley
• 034Motorsport Dynamic+ 1310 mm supercharger belt
• M8x1.25x25 mm class 12.9 zinc-coated hexagon head screws (8 pieces)
