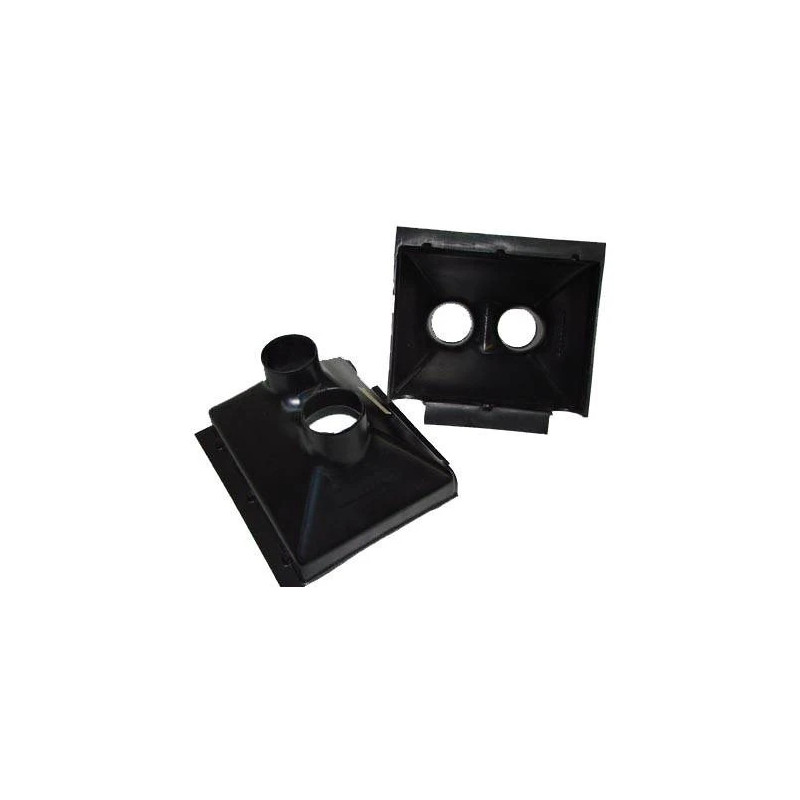

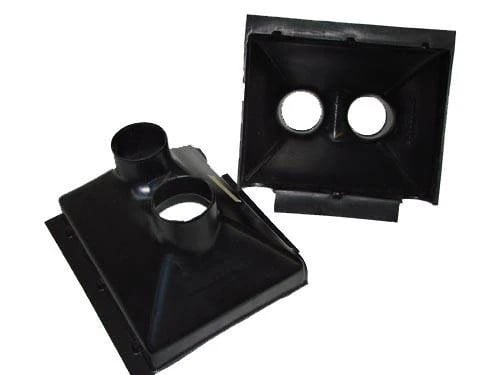

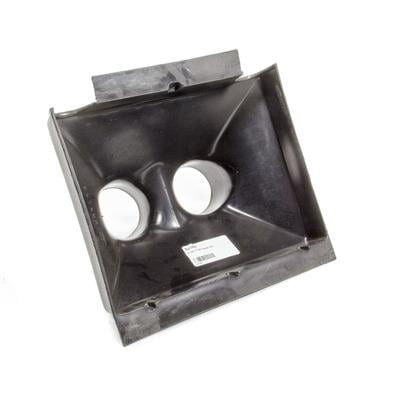

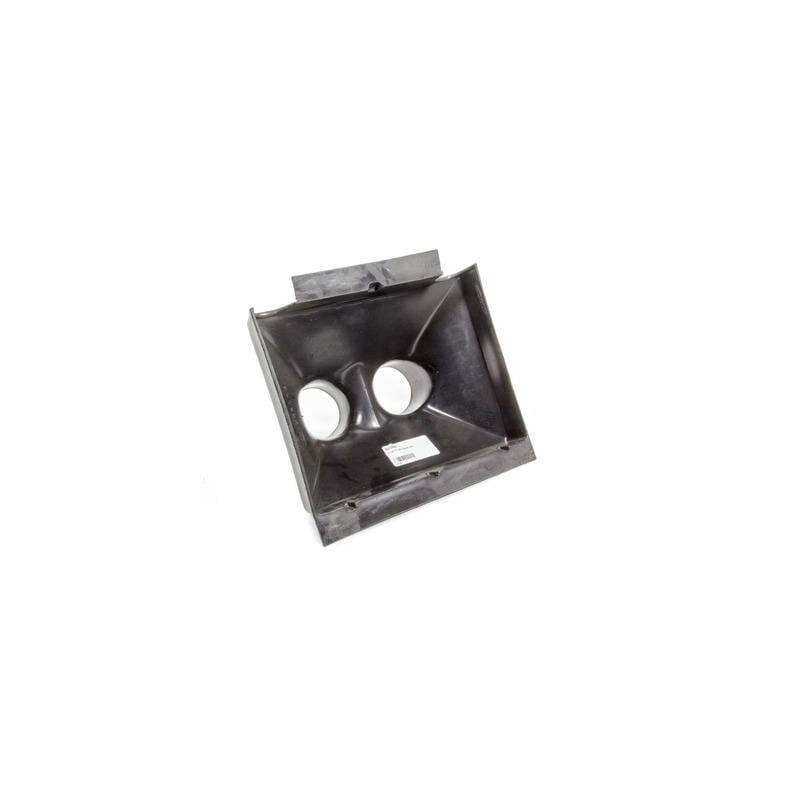

ButlerBuilt Air Scoop for Oil Cooler with Dual Connections, Ø76 mm

The ButlerBuilt air scoop is designed to draw in outside air and distribute it to two Ø76.2 mm (3") aeration ducting to supply an oil cooler or another component requiring air cooling. Its large inlet, measuring approximately 216 x 279 mm, captures the airflow from the front of the vehicle.

This dual Ø76.2 mm connection configuration allows the captured air to be distributed between two sheaths. It is particularly suitable for installations requiring two air intakes on an oil cooler or the distribution of airflow to multiple cooling zones.

The air scoop can be positioned behind a bumper opening, a radiator grille, or another area directly exposed to airflow. The two sheaths then channel the cool air to the radiator when it cannot be installed directly in front of the body opening.

With its 215.9 x 279.4 mm (8.5 x 11") inlet and two 3-inch sheath connectors, this air scoop is a universal solution for routing air into a rally car, circuit car, hillclimb car, or any other vehicle prepared for competition.

Made of black plastic, this ButlerBuilt air scoop is sold individually.

Technical Specifications

• Brand: ButlerBuilt
• Manufacturer Part Number: BBP-7029
• Type: radiator air intake
• Primary use: supplying air to an oil cooler or cooling system
• Number of fittings: 2
• Fitting diameter: 76.2 mm (3")
• Inlet sizes: 215.9 x 279.4 mm (8.5 x 11")
• Material: plastic
• Color: black
• Packaging: sold individually
• Application: universal
