Female Coupling Goodridge 150° Alu 3/14x16 JIC

Reference: G-536-15008

Supplier Ref.: 536-15008

Learn more

CHF 33.75 Tax included

CHF 39.70 -15% Discount

Promotion ends in: 15 H 44 M 39 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 39.70 -15%

CHF 33.75 (tax incl.)

Earn 33 loyalty points

Female Coupling Goodridge 150° Alu 3/14x16 JIC

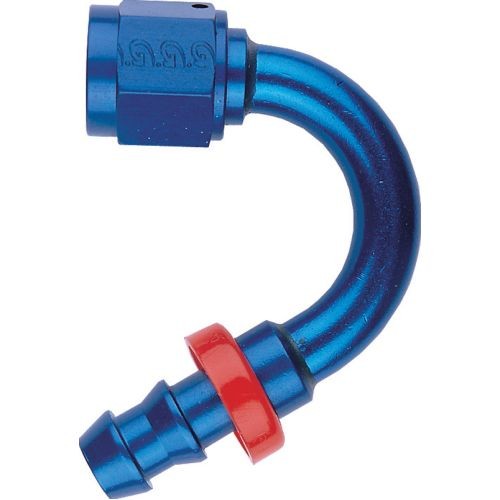

The Goodridge 536-15008 coupling is a 150° angled female end with a concave surface, designed for 536-08 hoses from the Goodridge range. Made of blue anodised aluminium, it provides excellent resistance to pressure, corrosion and external damage, while guaranteeing a smooth and secure passage.

This type of coupling is particularly suitable for configurations where a wide angle is required, in particular to bypass mechanical elements while maintaining optimal fluid routing. Its ‘Sure Lock’ grooved end piece is specifically designed to offer a reliable attachment with 536 hoses, while allowing precise adjustment once the hose is fitted.

Characteristics:

Reference: 536-15008

Type: 150° female elbow coupling – concave seat

Angle: 150°

For hose: 536-08 series

Thread: JIC 3/4 x 16

Material: anodised aluminium

Finish: blue

Applications: petrol, oil, air, water, cooling liquid

Compatibility: Goodridge 536 & 536B hoses

Fitting: non-detachable coupling - must be cut to remove

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
