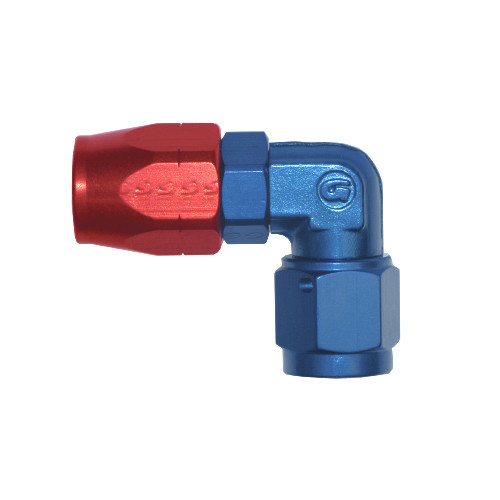

Goodridge 90° female forged elbow 9/16x18 JIC
Reference:
G-336-9006D
Supplier Ref.:
336-9006
This Goodridge JIC 90° female forged elbow is part of the most complete line of lightweight, reusable alloy hose fittings that are specifically designed to fit 200 and 210 series hose.
Its aerospace-grade, triple-seal, double O-ring nitrile design ensures a secure, leak-free connection every time.
All 236 and 336 series nipples are available in bright red and blue anodized and provide permanent alignment with 360 degree swivel ends.
The 336 series has a forged style body, offering an extra measure of strength.
Applications: fuel, oil, coolants, methanol, water.
Thread: JIC 9/16x18
Hose: Dash 06
Material: aluminum
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).-
JIC Thread9/16x18
-
Dash Hoses06
-
Angle in °90
-
Series200 Gasoline / Oil
