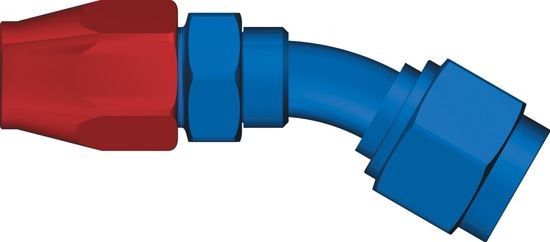

Goodridge 30° Aluminum female fitting 9/16X18 JIC
Reference:
G-236-3106D
Supplier Ref.:
236-3106
This Goodridge 30° JIC female swivel fitting is part of the most comprehensive range of lightweight, reusable hose fittings, specifically designed to fit 200 and 210 series hoses.
Its triple-seal design and dual nitrile O-ring, which conform to aerospace standards, guarantee a secure, leak-free connection every time.
All 236 and 336 series fittings are available in gloss anodized red and blue and allow for permanent alignment thanks to their 360-degree swivel ends.
The 336 series has a forged body style, offering an additional measure of resistance.
Use: fuel, oil, coolants, methanol, water.
Thread: JIC 9/16x18
Hose: AN6
Material: aluminum
-
JIC Thread9/16x18
-
Dash Hoses06
-
Angle in °30
-
Series200 Gasoline / Oil
