Forge oil cooler Hyundai Kona N
Developed, designed, and influenced from Forge direct involvement with BTCC and success with the Hyundai i30N, here is an oil cooling solution for the Hyundai Kona N.
This oil cooler radiator is lifted straight from the Forge motorsport department, so that this product performs well, and has been proven in several race events and winning vehicles over the past years. The cores are durable enough to last full race seasons and are perfect for fast road and track use. The cooler has now also been utilised in both of other Hyundai oil cooling solutions and cleverly redesigned for a 100% plug & play solution for the Kona N.
During the time developing world leading products for the Kona N, Forge found a significant flaw with the vehicle, especially when tuned. Oil temperatures can climb to dangerous levels when on track or when driven hard in hotter climates. Rising oil temperatures will result in only one outcome: a reduction of sufficient lubrication of your engines internal components, which, in due course, can potentially lead to engine damage.
Forge saw oil temperatures reduce significantly during the development of this product when locating the oil cooler heat exchanger at the front of the vehicle’s radiator grill, this allowed for superior air flow. FMOC14 is a must-have product for the keen driver to protect their vehicles longevity, and perform safely and reliably.
Unlike many oil cooler kits on the market, FMOC14 keeps the factory oil to water cooler in position - this essentially doubles your engines oil cooling. This product is not to be confused with a universal oil cooler, FMOC14 has a laser cut aluminium bracket which makes for perfect fitment to the Kona N. The kit is completely bespoke for this vehicle, with perfect length braided oil lines and an intelligent sandwich plate design making for a straightforward installation. The oil cooler is also designed to be mounted in the most efficient way possible as shown in the diagram below. This is to avoid oil cavitation which can also in some cases lead to potential engine damage over a long period of time.
Manufactured in Gloucester, UK, FMOC14 is made to the uppermost standard and is backed up by the Forge Motorsport lifetime warranty.

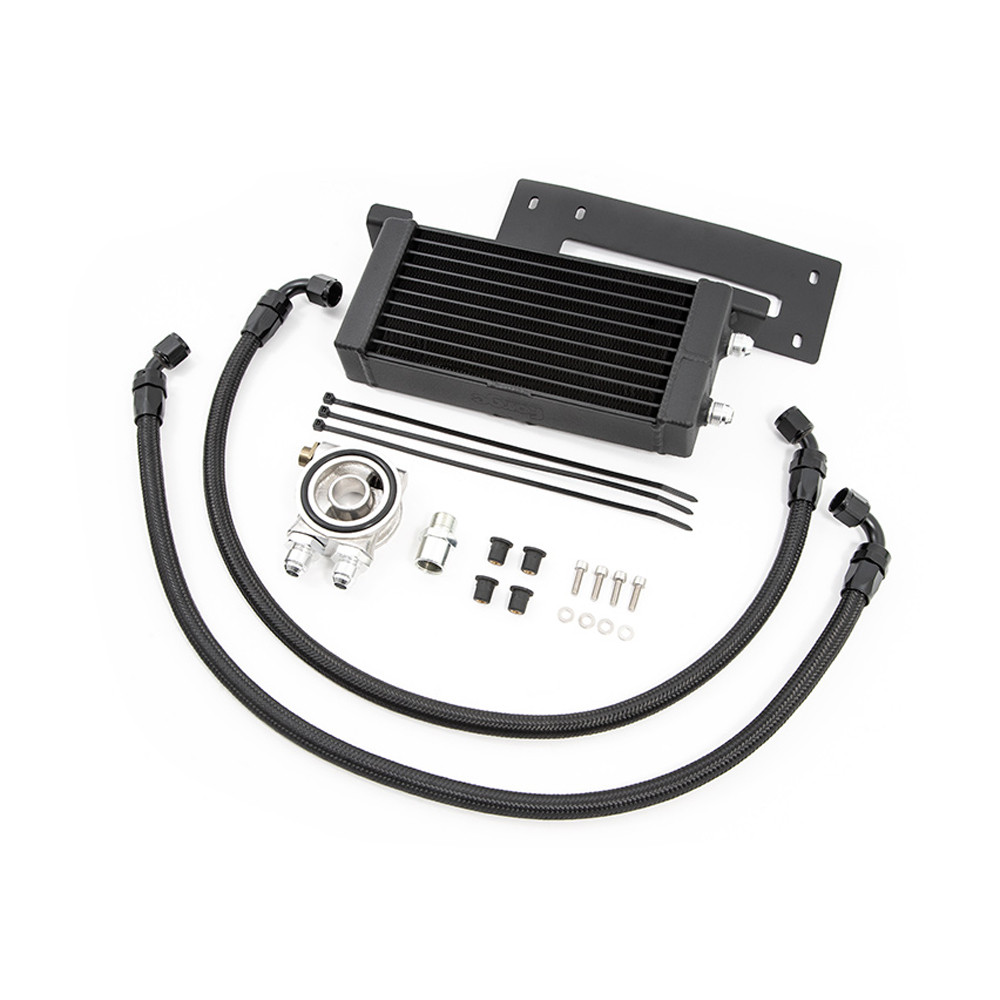

The kit comes with the following:

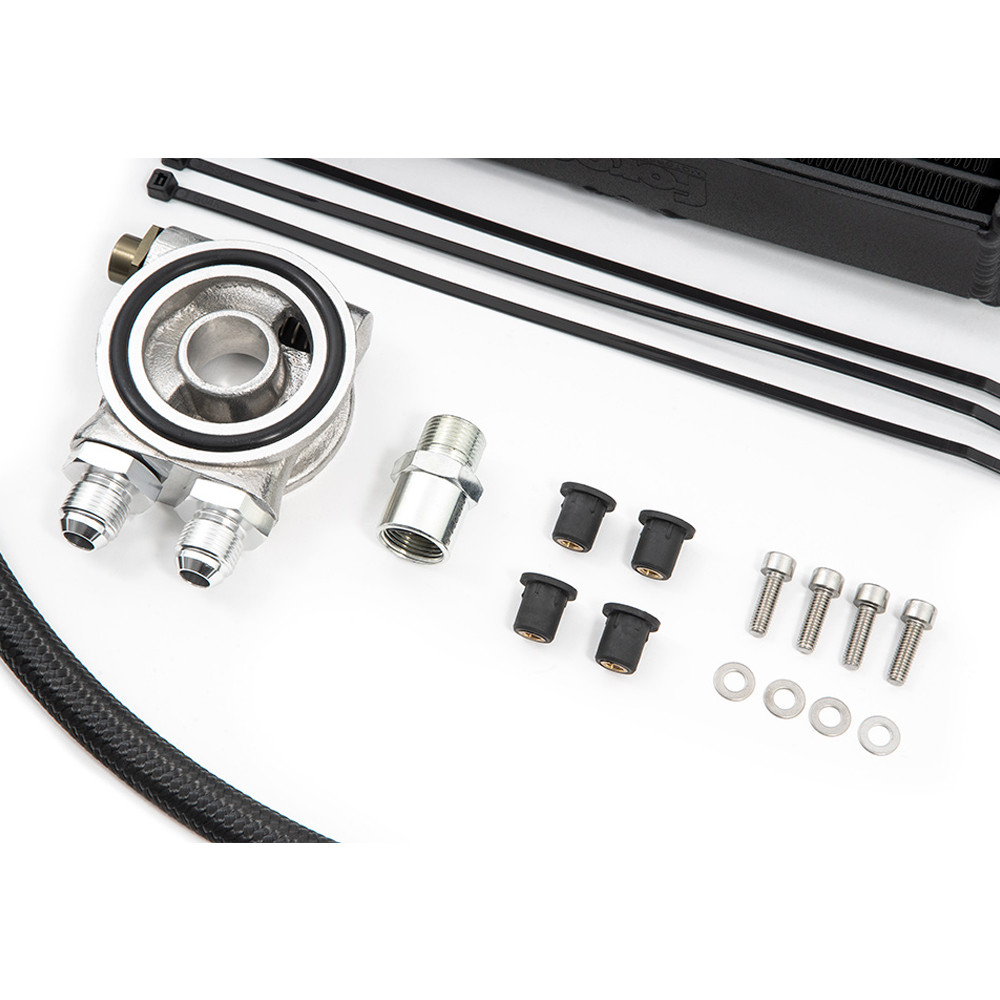

1x Forge Aluminium sandwich plate

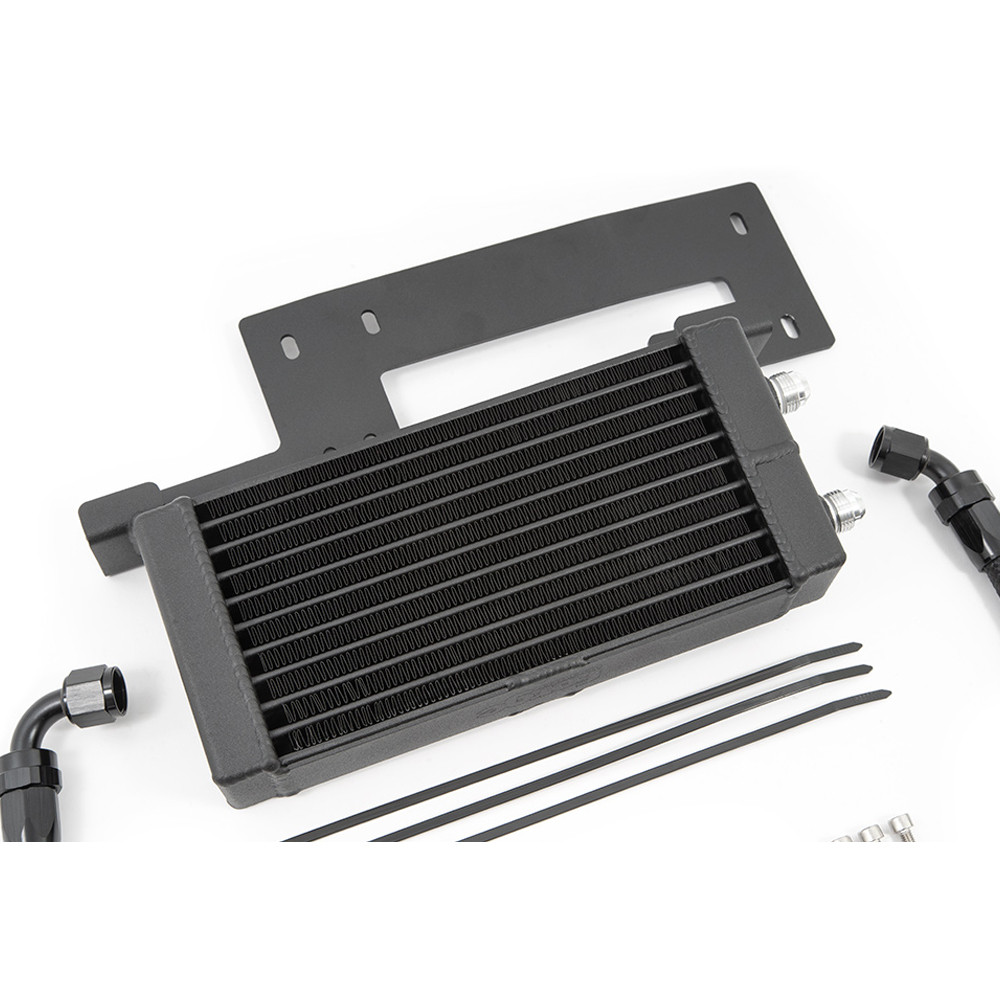

1x Twin pass oil cooler
4x M6x20 fasteners
4x M6 washers
2x Oil lines
4x M6 Rubber Riv nuts
1x M20x1.5 adaptor
1x weather strip
All the fixings required and a comprehensive fitting guide
Vehicle affectation :
Hyundai Kona N
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
