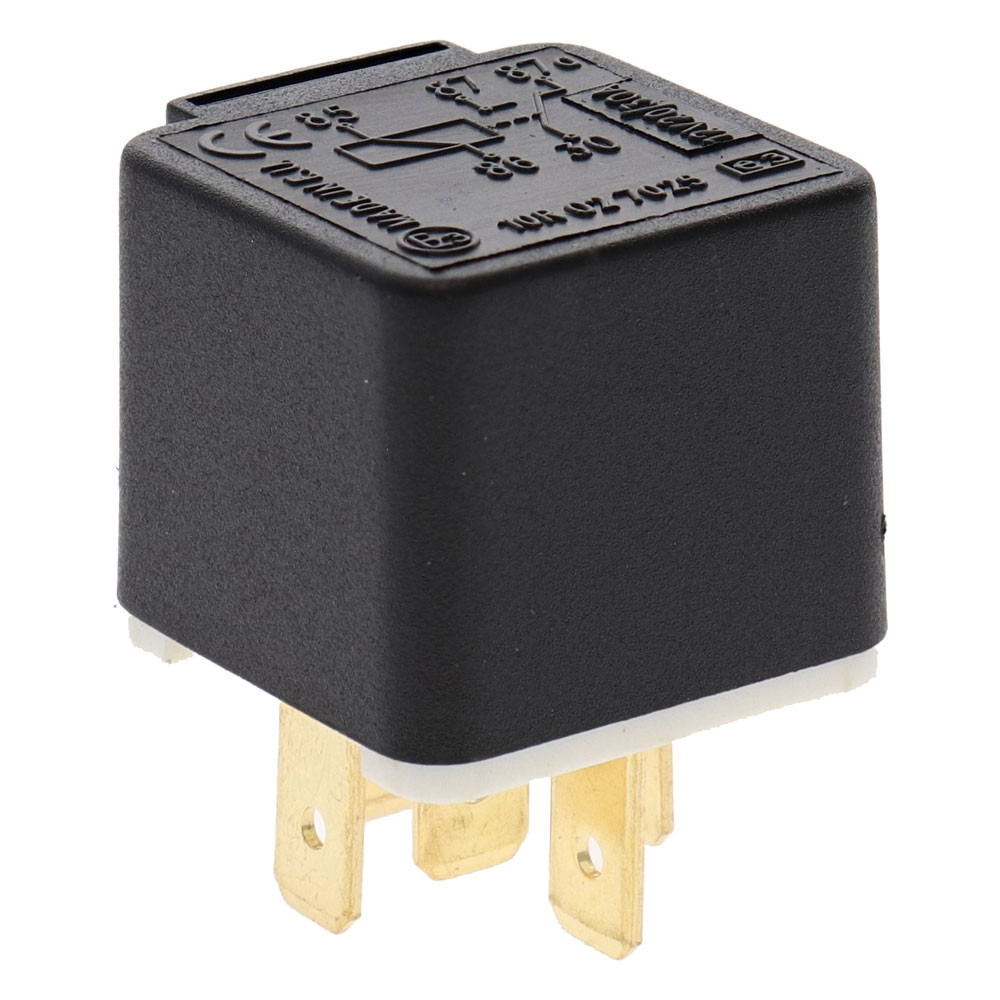

Relay 24V 20/30A - 5B.
The RL.15124HD is a miniature 5-terminal truss relay designed for 24V applications requiring reverse switching. It has a changeover function (SPDT) that allows switching between two outputs (87 and 87a), depending on the state of the coil.
This model offers a switching capacity of 20 A on output 87a and 30 A on output 87. It comes with a removable metal bracket for easy installation in wiring harnesses or technical enclosures.
Features:
Reference: RL.15124HD
Voltage: 24 V DC
Switching capacity: 20 A (87a) / 30 A (87)
Terminals: 5 (30, 85, 86, 87, 87a)
Internal equipment: No resistor, no diode
Bracket: Removable metal
