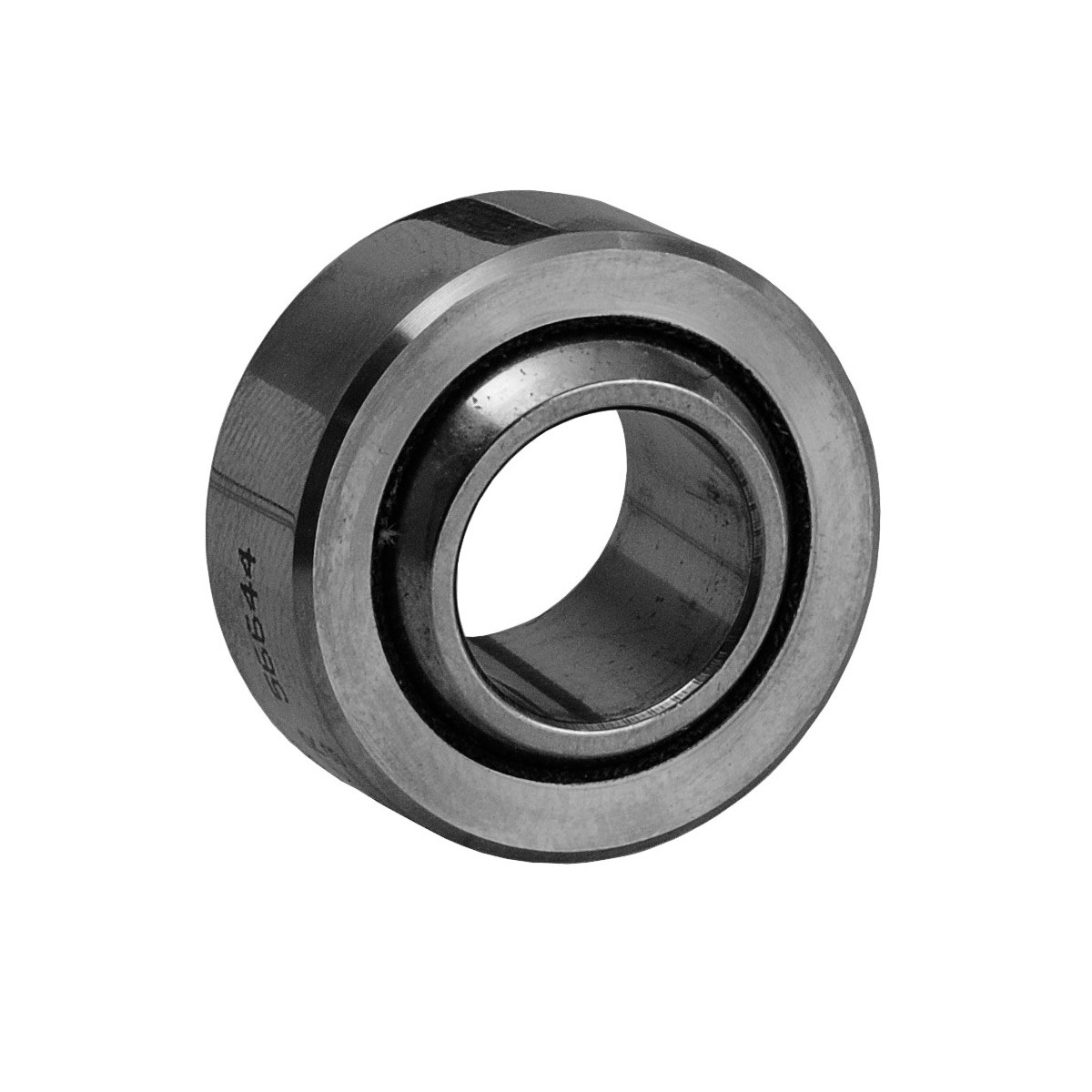

Aurora's spherical bearings are manufactured to meet the following specifications: small size to save space, high load capacity, wear resistance, long service life, resistance to environmental conditions; last but not least, AURORA products are economical.
Technical data:
Ball - Alloy steel, heat treated, hard chrome plated.
Race - 17-4 PH (AMS 5643) stainless steel, heat treated.
PTFE liner - (AT 3200)
Permanently bonded to race inside diameter.
Complies with SAE-AS81820 (formerly MIL-B-81820)

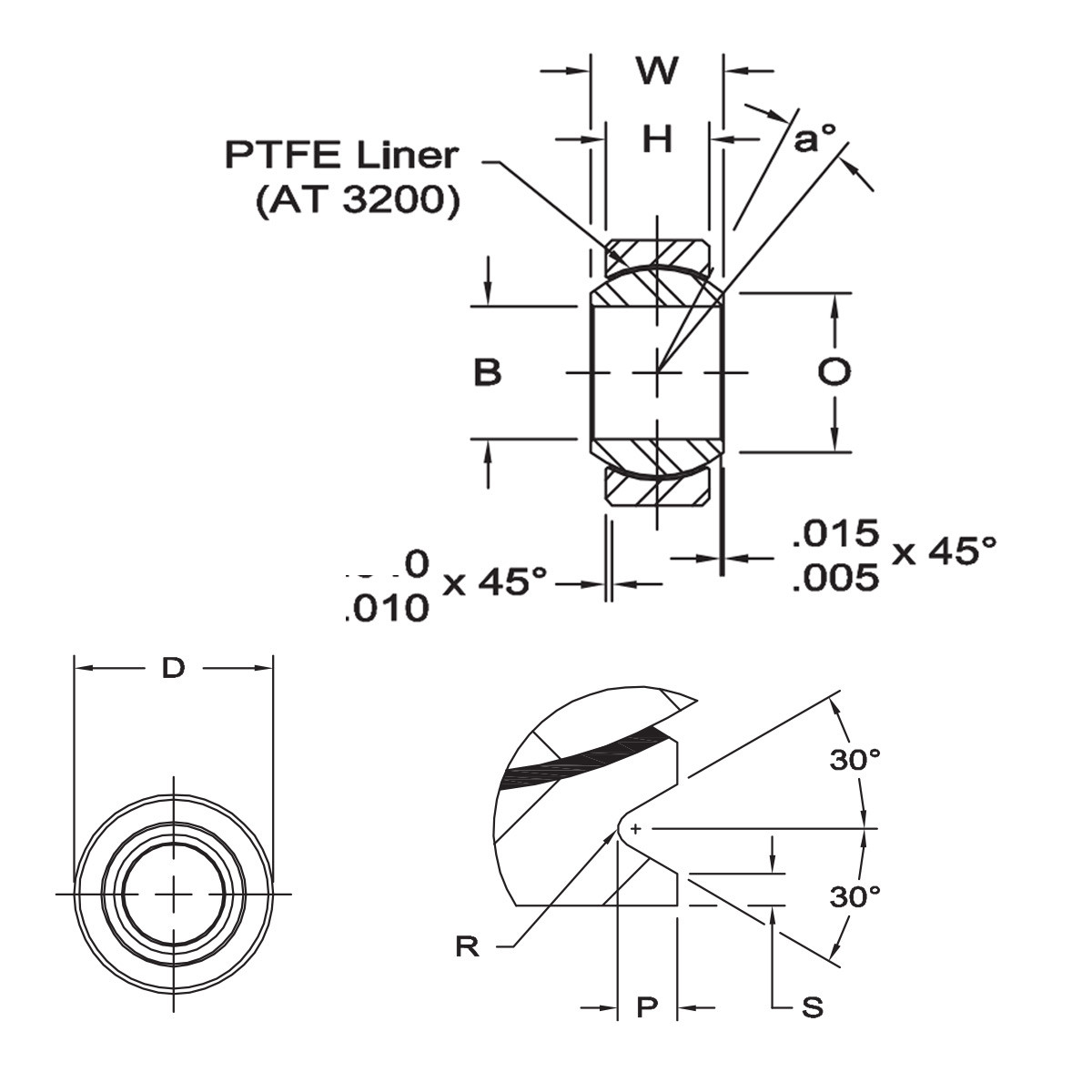

Eye diameter: 3/4“
External diameter (D): 34.925mm (1.3750”)
Cage thickness (H): 16mm (0.630“)
Rod end thickness (W): 22.22mm (0.875”)
Radial load: 3700daN
B: 19.050mm (0.7500")
O: 21.463mm (0.845“)
P: 1.397mm (0.055”)
S: 0.5080mm (0.020“)
G: 31.775mm (1.251”)
R: 3.81mm (0.15")
a°: 13°
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
