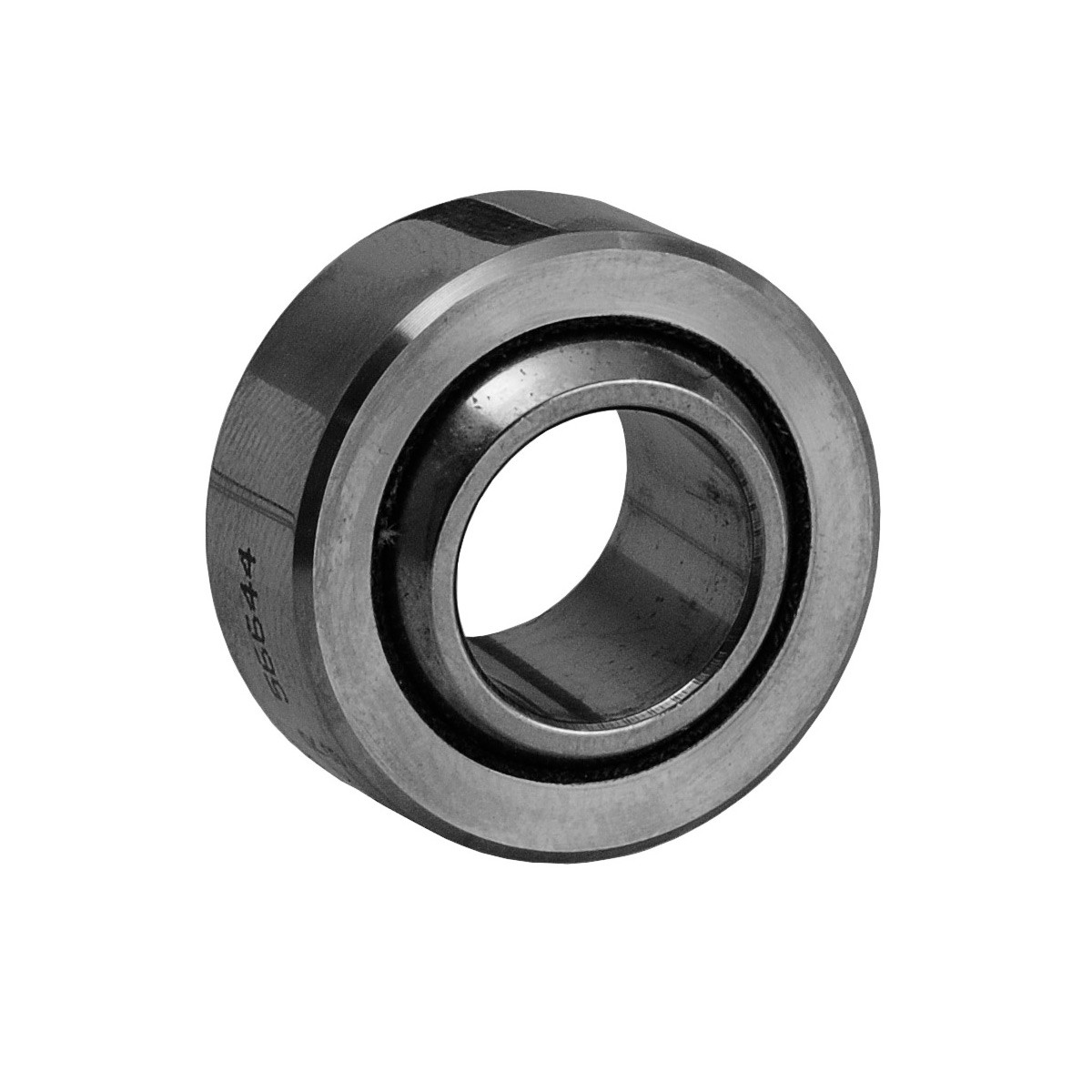

Aurora's spherical bearings are manufactured to meet the following specifications: small size to save space, high load capacity, wear resistance, long service life, resistance to environmental conditions; last but not least, AURORA products are economical.
Technical data:
Ball - Alloy steel, heat treated, hard chrome plated.
Race - 17-4 PH (AMS 5643) stainless steel, heat treated.
PTFE liner - (AT 3200)
Permanently bonded to race inside diameter.
Complies with SAE-AS81820 (formerly MIL-B-81820)

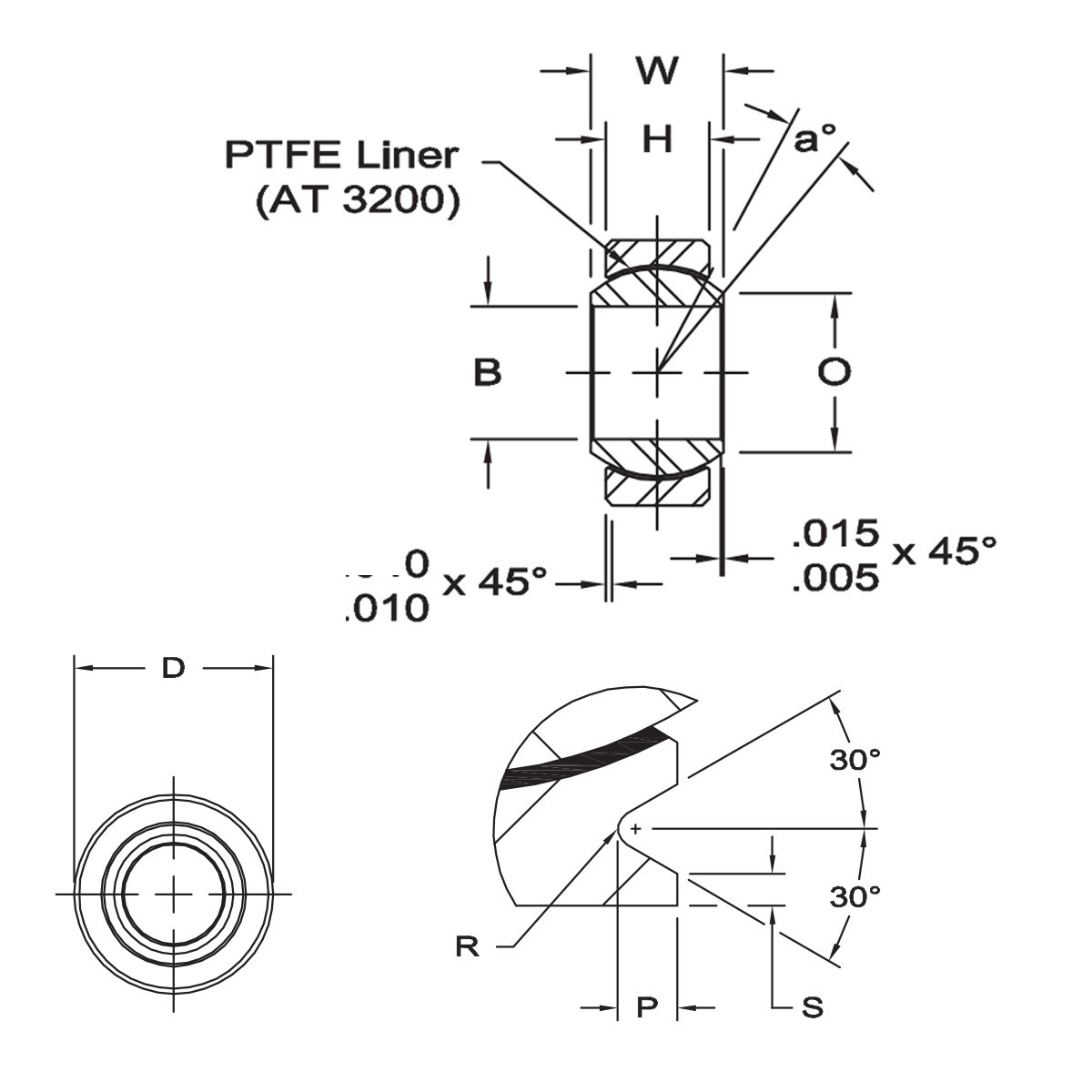

Eye diameter: 5/8“
External diameter (D): 30.16mm (1.1875")
Cage thickness (H): 14.40mm (0.567")
Rod end thickness (W): 19.05mm (0.750")
Radial load: 2900 daN
B : 15.875mm (0.6250")
O : 18.974mm (0.747")
P : 0.889mm (0.035")
S : 0.5080mm (0.020")
G : 27.610mm (1.087")
R : 0.381mm (0.015")
a° : 12°
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
