SACHS RCS 184 Single-Plate Clutch Cover for Renault Clio Rally5 EVO

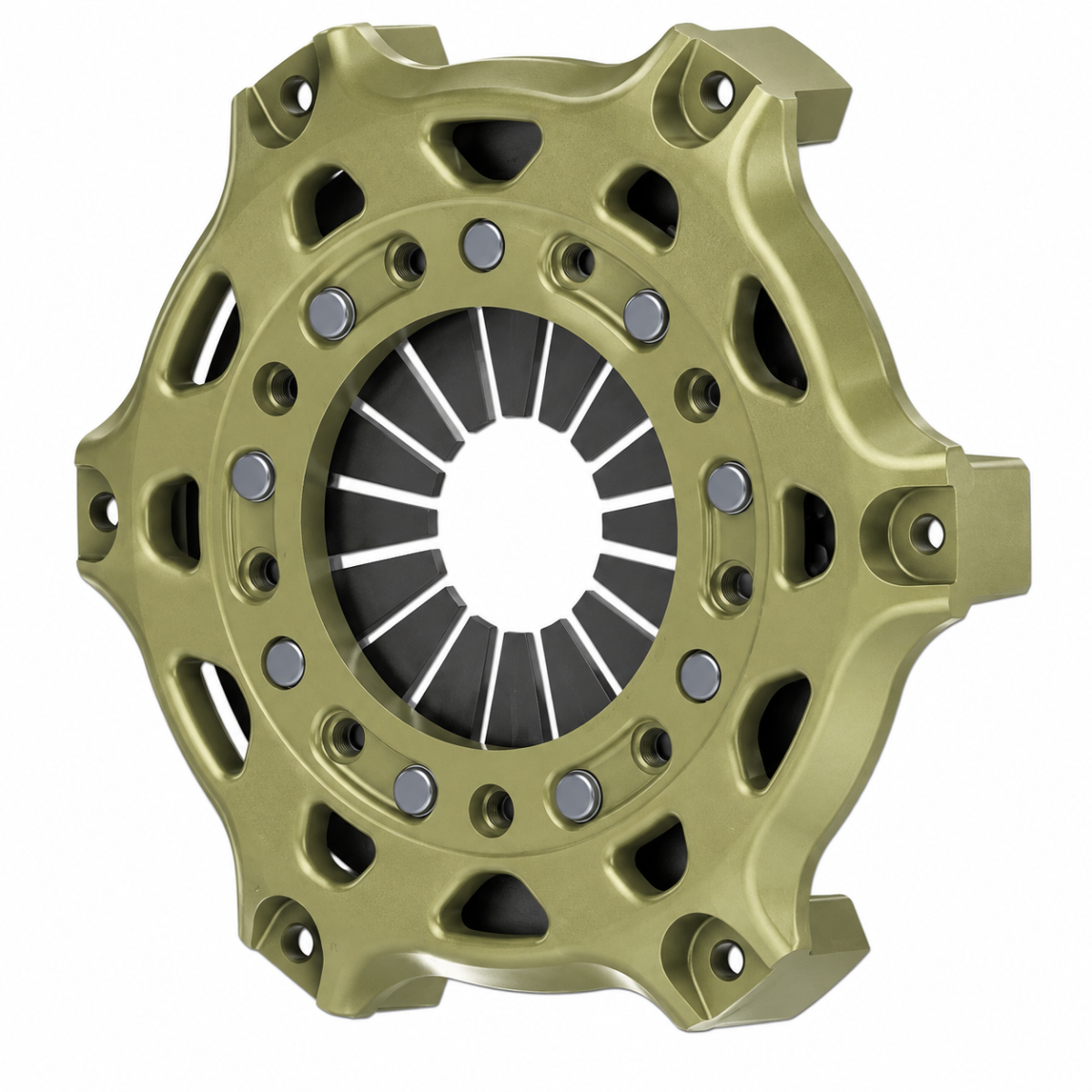

The Sachs 003072000483 clutch cover is designed for the Renault Clio Rally5 EVO. Derived from the Sachs RCS 184 modular competition system, it is intended here for a 184 mm single-plate clutch configuration.

This part number corresponds to the RCS 184-N-D-S-49 version. It has a release diameter of 49 mm and a release force of 2,400 N. When paired with the appropriate RCS 184 components, the assembly ensures the clutch plate engages and transmits torque between the engine and the transmission.

The compact design of the RCS 184 system helps minimize the rotating mass and moment of inertia of the clutch. Its high-strength aluminum housing is designed to ensure precise component alignment and withstand the thermal and mechanical stresses encountered in motorsports.

Part number 003072000483 replaces the former Sachs part number 003072000130. Since the RCS 184 system is modular, the clutch discs, clutch plates, and other associated components must be selected based on the clutch configuration used on the vehicle.

Technical Specifications

• Brand: Sachs
• Manufacturer Part Number: 003072000483
• Old part number: 003072000130
• Range: RCS 184

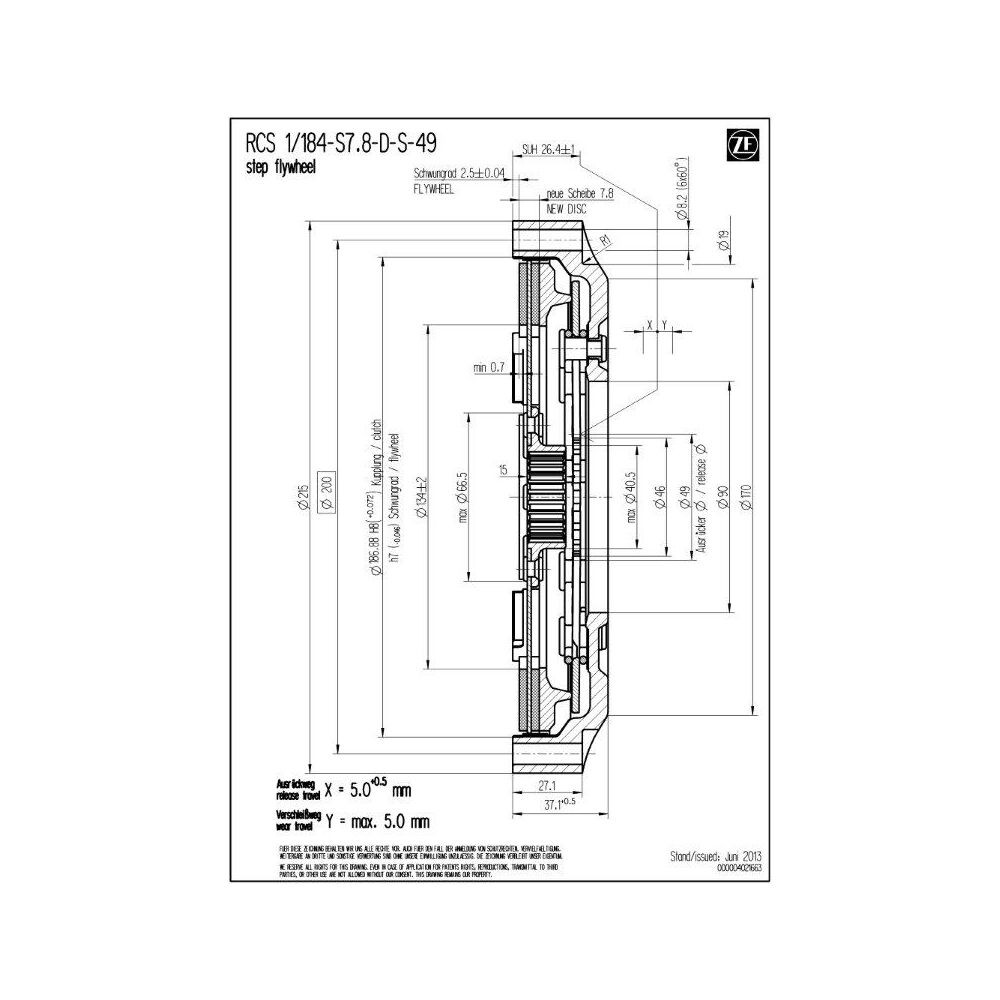

• Version: RCS 184-N-D-S-49
• Type: competition clutch cover
• Configuration: single-plate
• Diameter: 184 mm
• Disengagement diameter: 49 mm
• Disengagement power: 2,400 N
• Transmissible torque with sintered metal disc: up to 385 Nm
• Transmissible torque with organic disc: up to 260 Nm
• Clutch housing material: high-resistance aluminum
• Application: Renault Clio Rally5 EVO
• Use: motorsports
