The SACHS Performance 881864003120 sintered metal reinforced clutch disc is specifically designed for the Peugeot RCZ, Peugeot 208, and Citroën DS3 equipped with a compatible clutch configuration. With a diameter of 228 mm, it enables the creation of a reinforced clutch suitable for modified vehicles and applications that subject the drivetrain to significant stress.
Unlike the organic version, this disc uses a sintered metal trim. This technology offers superior resistance to thermal and mechanical stress, as well as more direct drive for torque transmission. However, its engagement is less progressive than with an organic trim, making this part better suited for intensive sports driving or competition use.
Sintered Metal Clutch Disc for Peugeot RCZ, 208, and Citroën DS3
Part number 881864003120 is specifically designed for the Peugeot RCZ, Peugeot 208, and Citroën DS3, depending on their engine and transmission configuration. It is particularly compatible with 1.6 THP gasoline engines.
However, the presence of a 1.6 THP engine alone does not guarantee compatibility. The vehicle model, transmission type, clutch cover, and flywheel must be verified before placing an order.

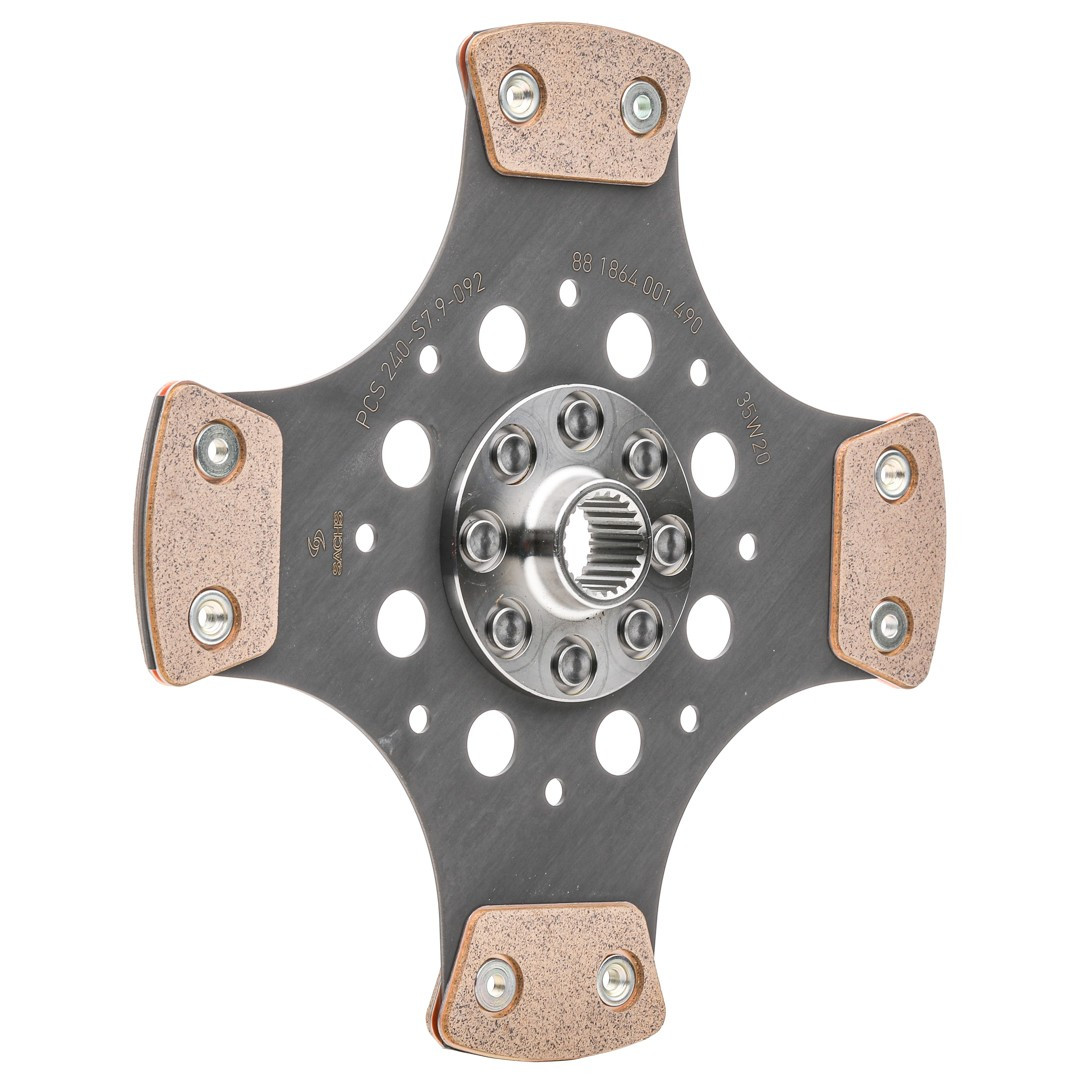

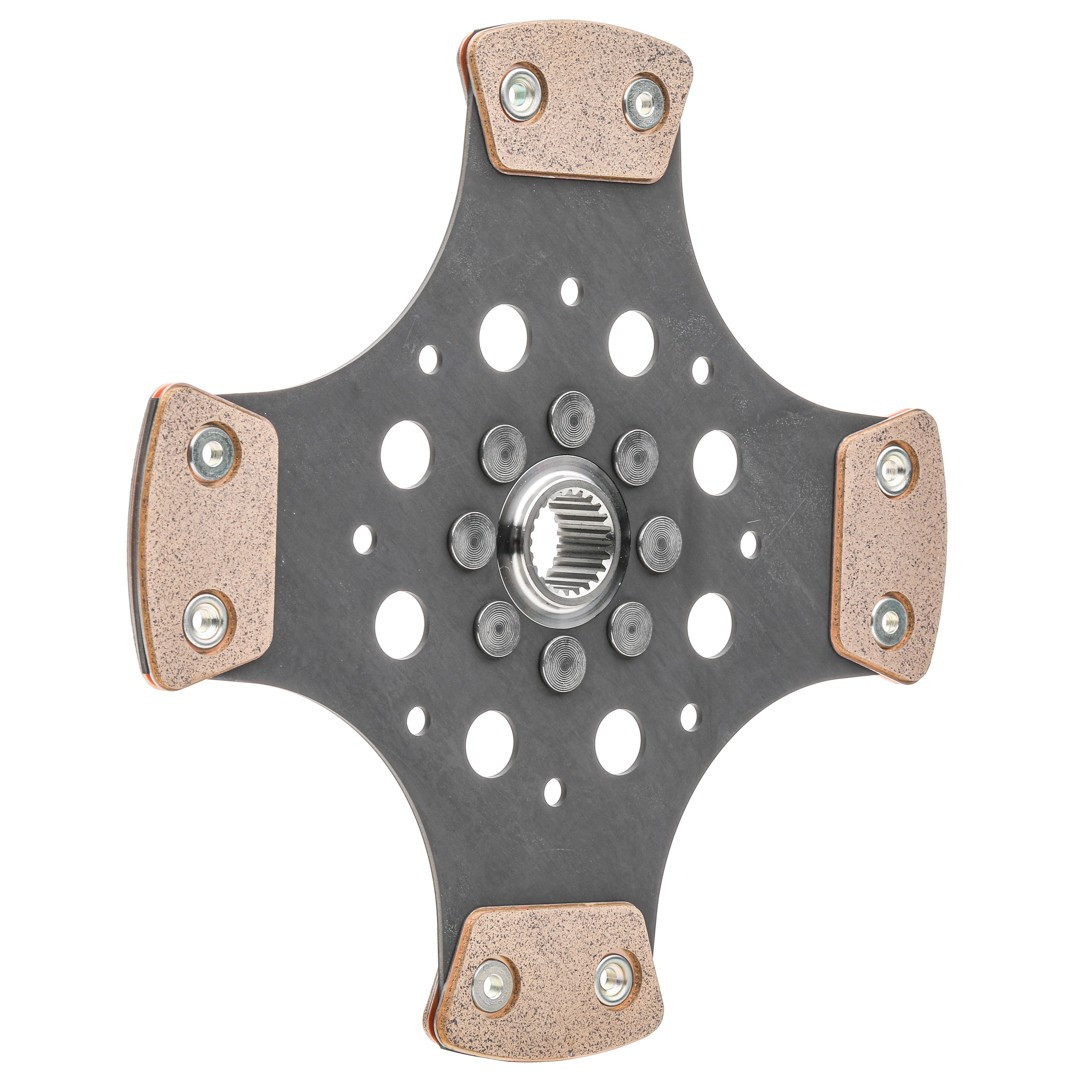

Sintered metal trim and rigid construction

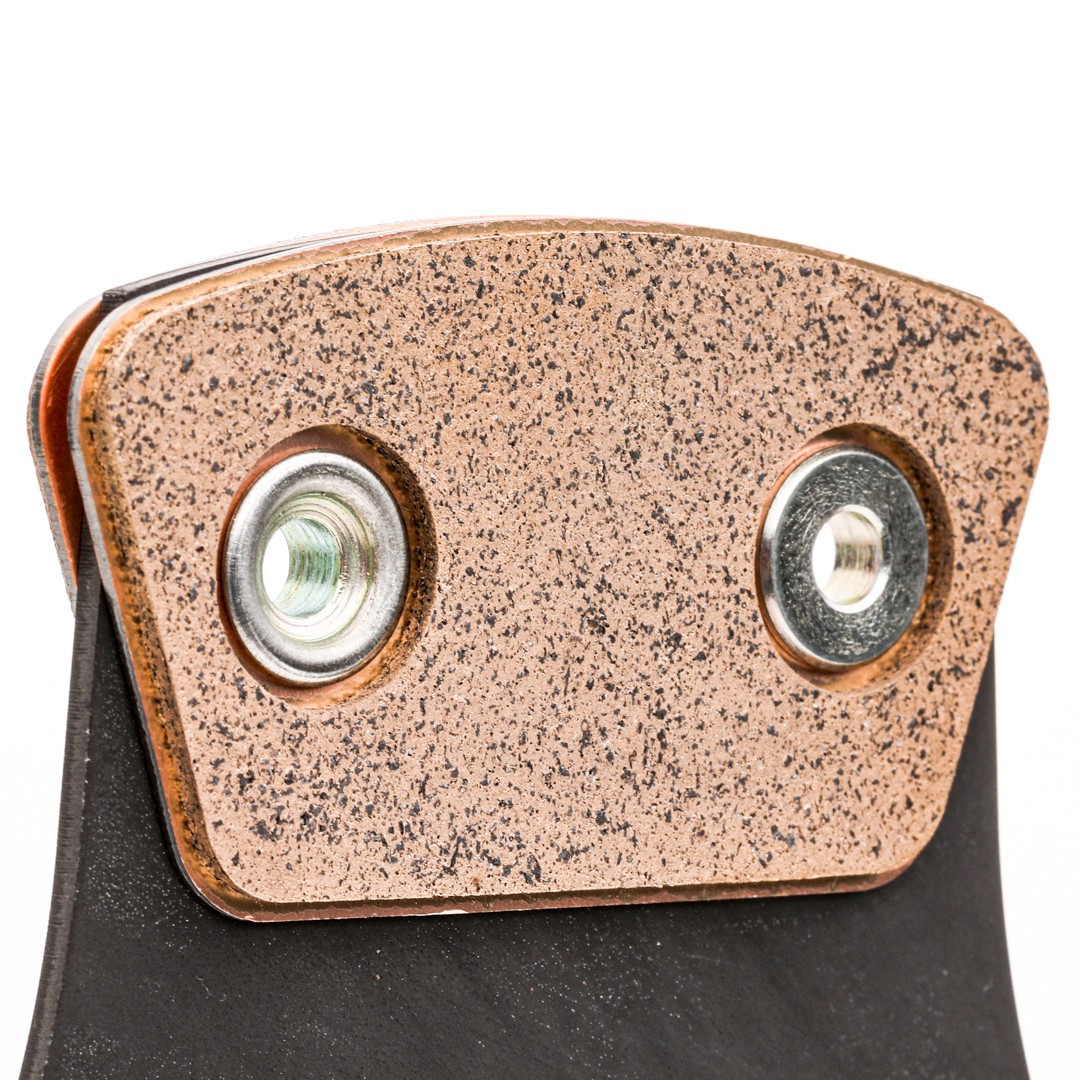

The sintered metal lining is designed to withstand more severe conditions than an organic lining. It is a suitable solution when a more direct engagement and high resistance are required for engine tuning or motorsports use.
This part features a rigid construction, without a torsion spring damping system integrated into the disc. The clutch’s response is therefore more direct, and this characteristic must be taken into account when selecting other transmission components.

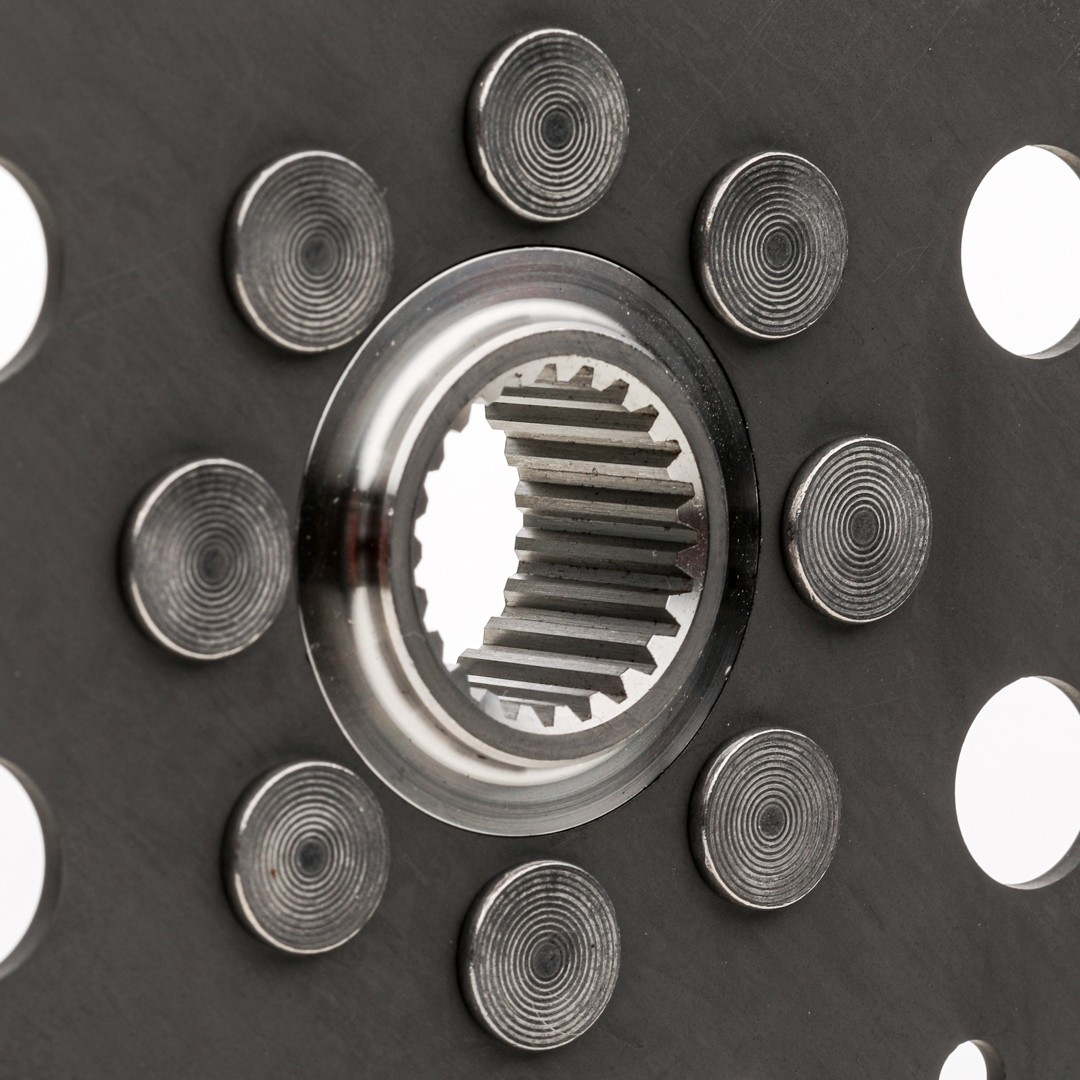

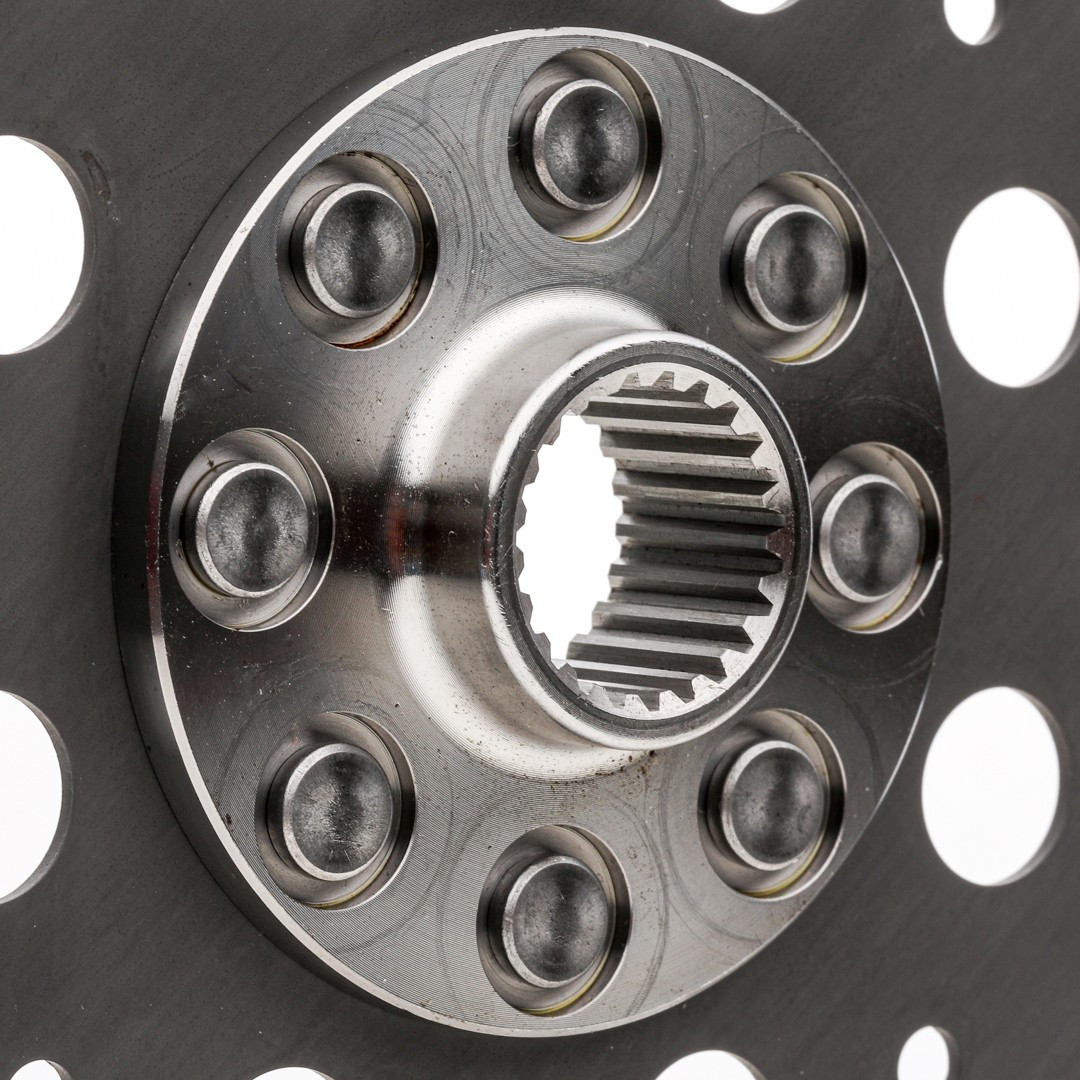

The disc has a diameter of 228 mm and a 26-tooth hub with a 32/64-26-37.5° profile . These specifications allow you to verify compatibility with the transmission and clutch cover being used.
Must be paired with a compatible clutch cover
This product is the clutch disc sold separately. It must be used with a compatible SACHS Performance clutch assembly from the 883082 series that matches the vehicle’s application.
The maximum torque cannot be determined based on this clutch disc alone. The clutch’s capacity depends on the combination of the clutch disc, its lining, the release mechanism, and the other components used. Therefore, a torque rating specified for a complete SACHS kit should not be directly applied to this part number.
Technical Specifications of the SACHS Performance Clutch Disc
Brand: SACHS Performance
Manufacturer Part Number: 881864003120
Type: Reinforced clutch disc
Trim: Sintered metal
Construction: Rigid disc
Diameter: 228 mm
Number of teeth: 26
Hub profile: 32/64-26-37.5°
Maximum torque: depends on the associated clutch configuration
Mechanism: to be paired with a compatible SACHS Performance mechanism from the 883082 series
Main applications: Peugeot RCZ, Peugeot 208, Citroën DS3
Packaging: Disc sold individually
Contents
- 1 SACHS Performance reinforced sintered metal clutch disc
Note: The clutch cover, thrust bearing, and flywheel are not included with this disc.
