This Siroco Bali heating has a 12V supply for a 55W power.
2 speeds to connect to the cooling system by 16mm pipe toes.
This Siroco Bali model is used by Citroën Sport for the Saxo Challenge, the saxo kit car, and the C2R2.

Features:

- ABS heat box

- nominal air flow: 130 m3*h

- heated volume: 1 to 2 m3

- weight: 1.2kg

- pipe diameter: 16mm

- 2 45mm warm air outputs to connect with a pipe

- heat output: 2.4kW

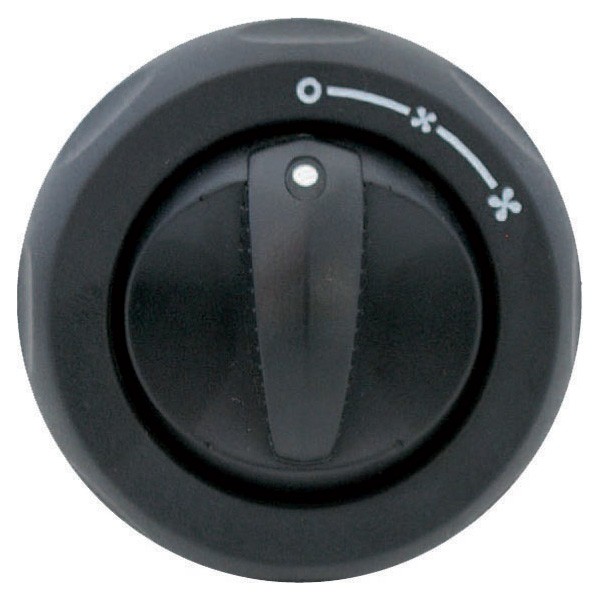

Rotary switch with 2 speeds (3 positions with 'OFF' included) in ABS to control the Siroco Bali heating.

Maximum intensity: 20A

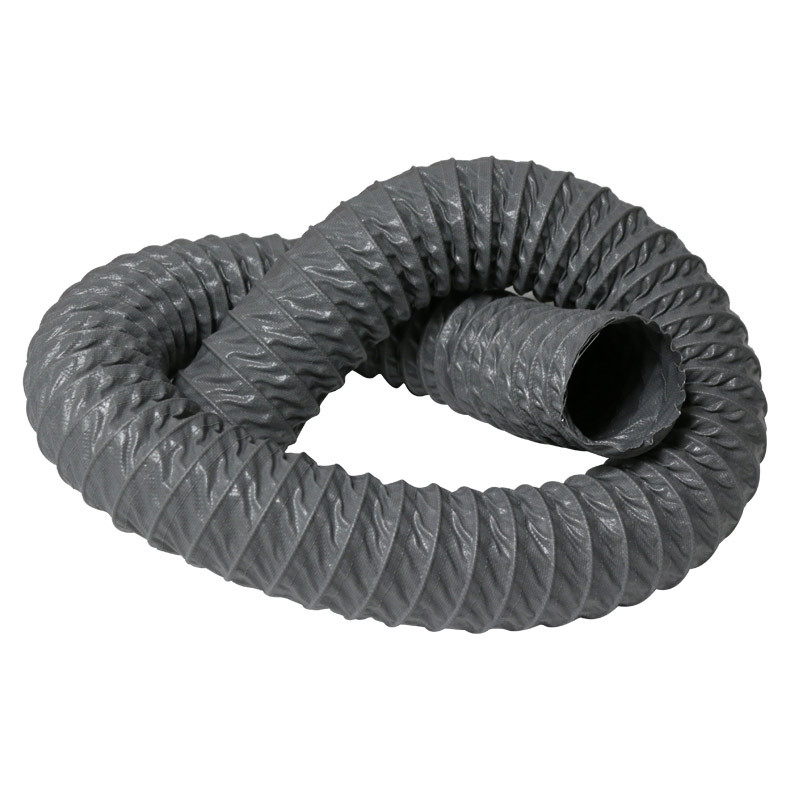

This ventilation pipe in PVC has a high resistant steel helix combining flexibility, lightness and humidity proof.
In accordance with the norm DIN 4102, it's also a fireproof pipe and allows a connection to the Sirocco Minox or Bali heating.

Length: 1m
Diameter: 45mm

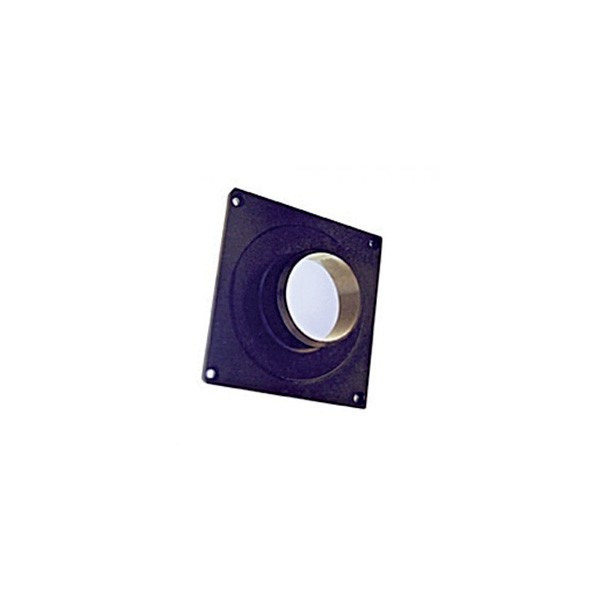

2 bruches plate with diameter 45mm in injected resine, for mounting with swerved Siroco heating.
It can be used, for example, in the entry of the demisting circuit of the dashboard to receive the two 45mm boas which come from a Siroco heating placed further.

Trick: just make a simple interface adaptation to be fixed on the circuit entry.

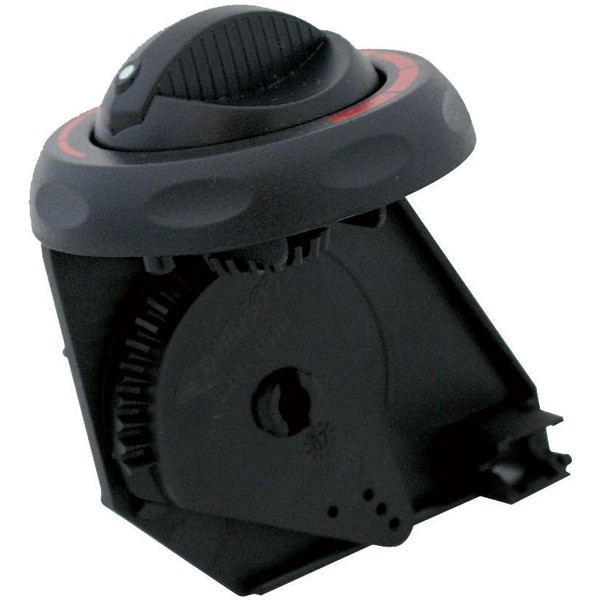

Cable heating rotative control to control the stop valve of the Siroco heating.
To use with the 500mm or 1000mm cable.

Cable for Siroco valve control.
Length: 1m.

With duct and duct stops.

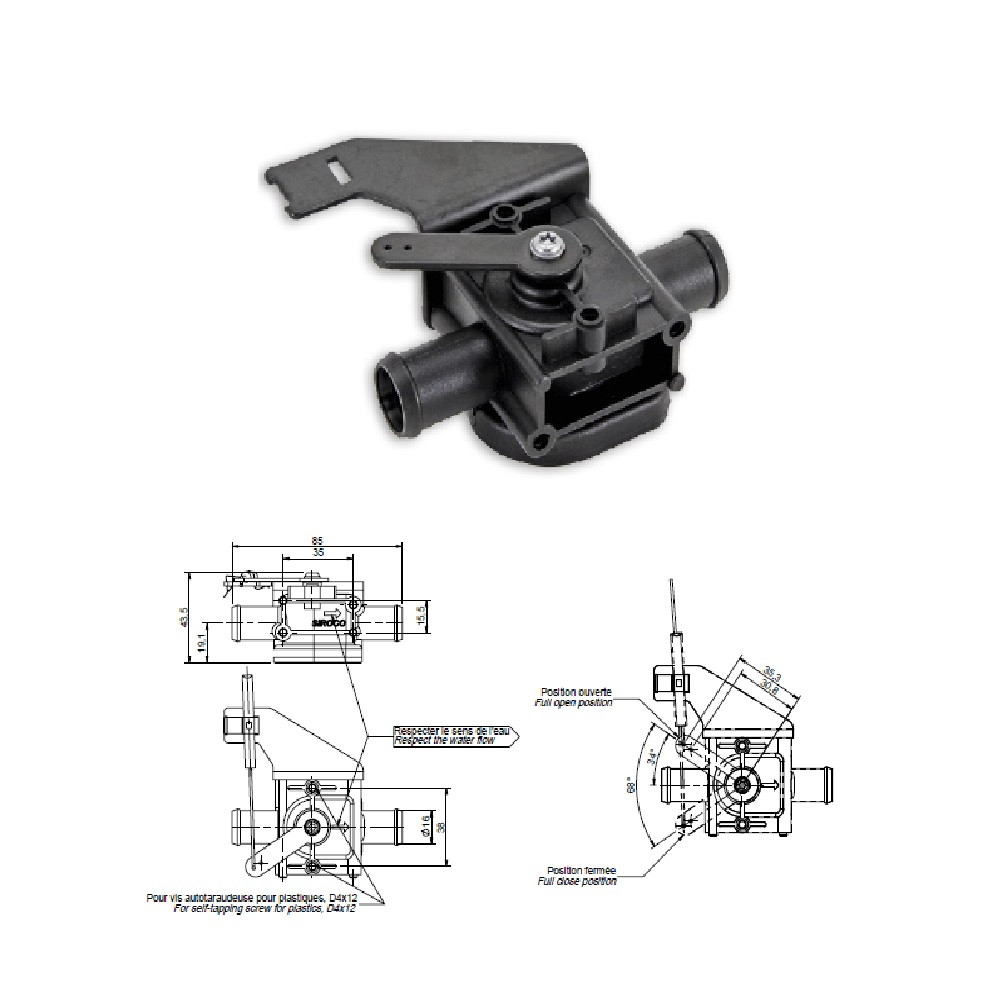

Siroco heating stop valve in plastic with mechanical control.
With cable fixing clip.
Straight toes of 16mm and gradual closure.

Technical datas :

• Maximum pressure use: 3bar

• Maximum temperature: 100°C to 3bar
