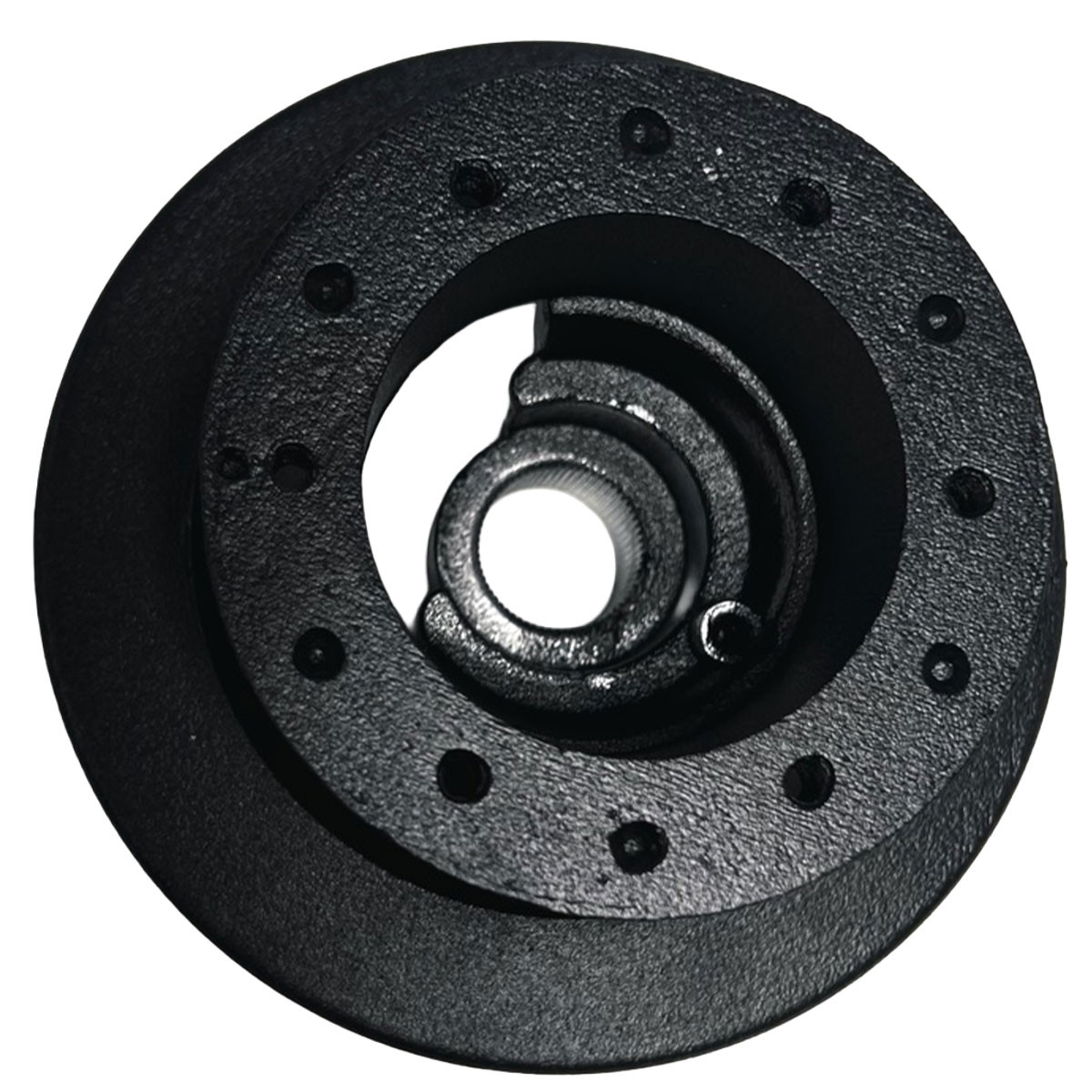

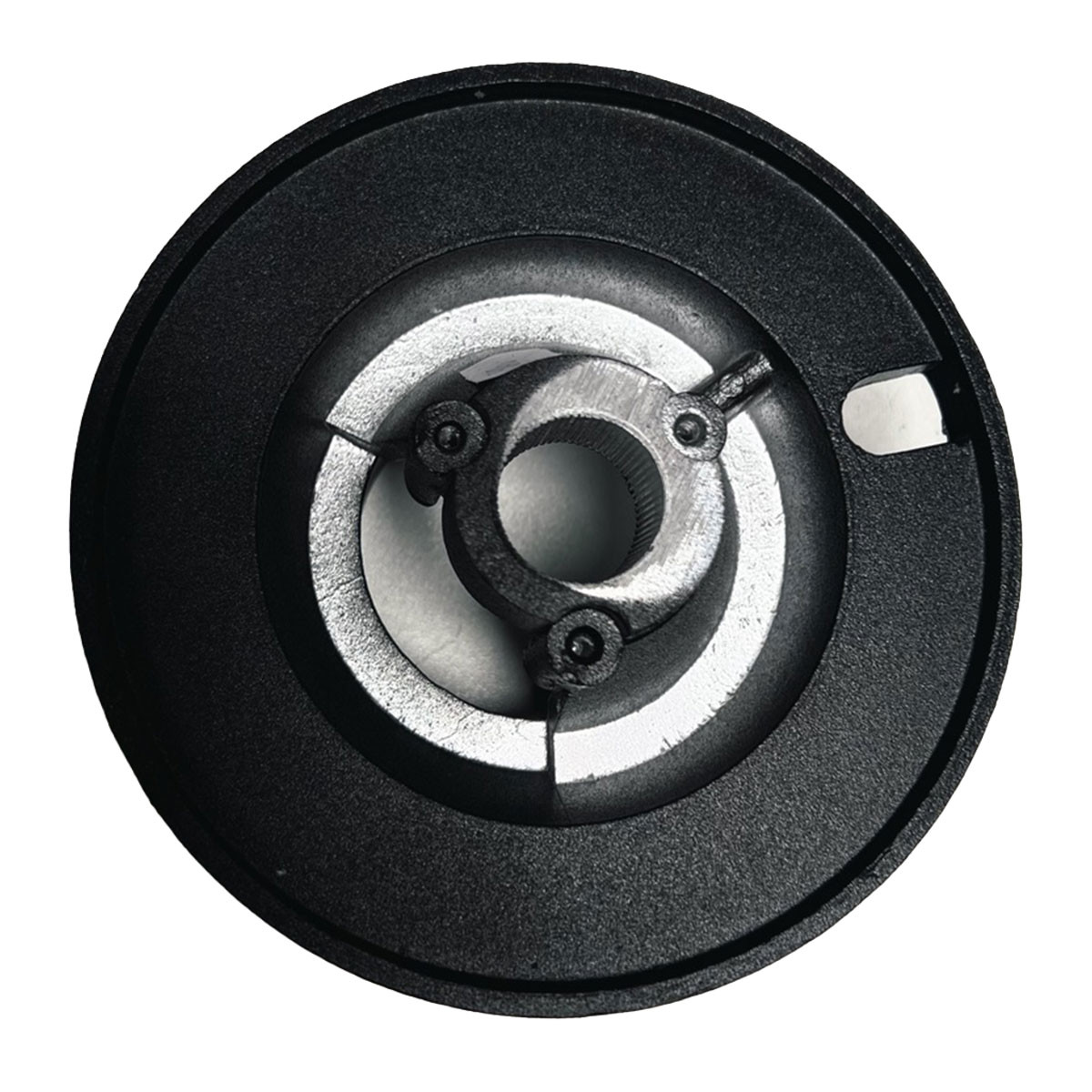

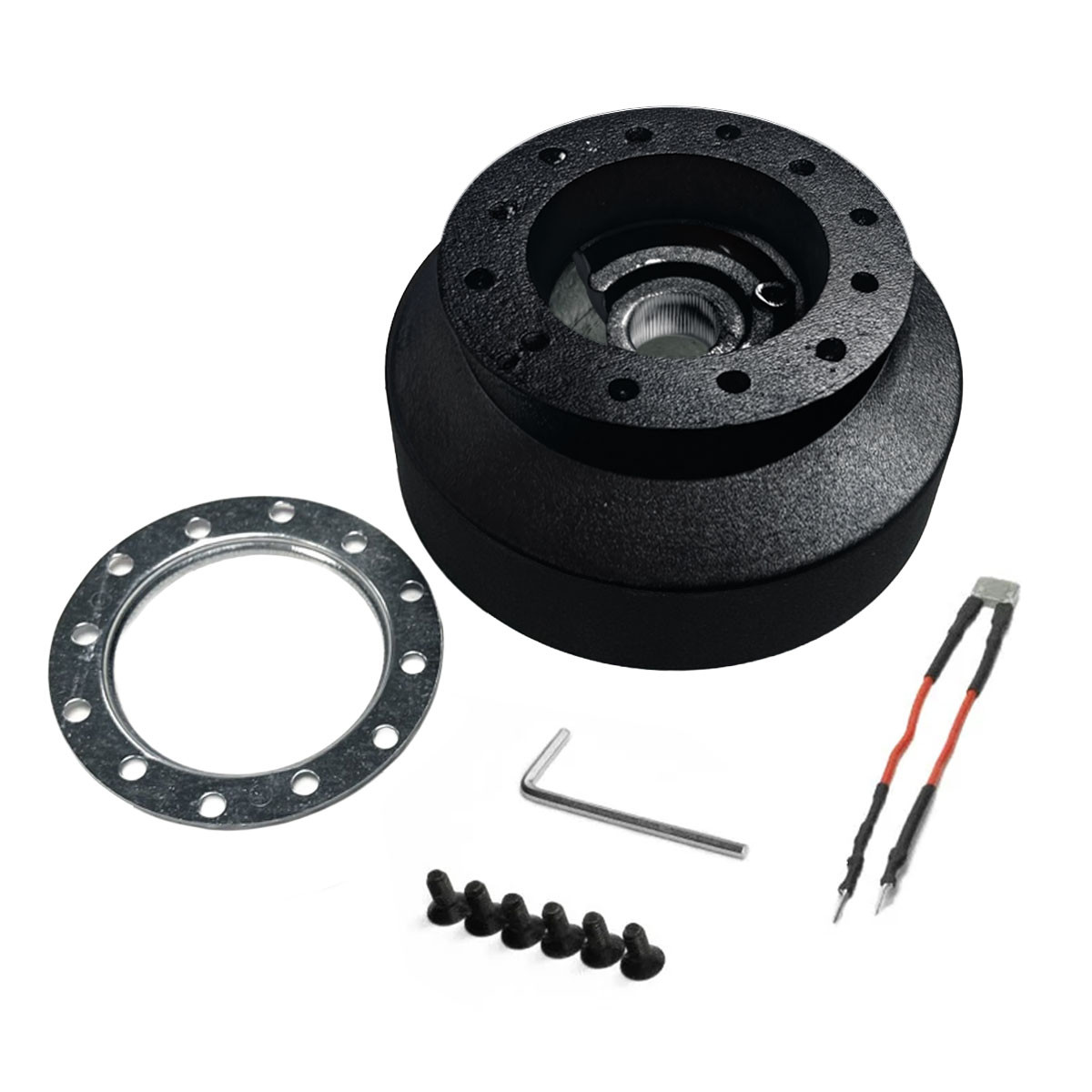

The GT2i TC-524-2212 steering wheel hub allows you to install a sport steering wheel on the BMW 3 Series E36, 5 Series E39, and Z3 models with the original airbag listed below. Corresponding to manufacturer part number 545 airbag, it connects the steering column to a compatible 6-hole sport steering wheel.
You can customize your cockpit by selecting the appropriate steering wheel diameter and offset. Check the resulting position as well as the necessary clearance around the control switches.
The phrase “with airbag” refers to the vehicle’s original configuration. Mounting a sport steering wheel without an airbag will disable the driver’s airbag.
Specifications of the GT2i TC-524-2212 steering wheel hub
- Brand: GT2i.
- GT2i Part Number: TC-524-2212.
- Manufacturer part number: 545 airbag.
- Type: steering wheel hub adapter for sport steering wheels.
- Compatibility: BMW E36, E39, and Z3 with factory airbag.
- Steering wheel mounting: 6 holes; verify that the center distance matches the selected flywheel.
- Location: between the steering column and the sport steering wheel.
Vehicles compatible with the GT2i 545 airbag adapter hub
- BMW 3 Series E36 with airbag: 1995–2001.
- BMW 5 Series E39 with airbag: 1995–2004.
- BMW Z3 with airbag: 1995–2002.
These applications apply to vehicles equipped with a factory-installed driver airbag. Check your vehicle’s configuration before placing your order.
Steering Wheel Compatibility and Mounting
The steering wheel must have a mounting configuration that matches that of the steering column hub. The number of holes alone is not sufficient to guarantee compatibility: also check their center distance.
During mounting, check that the hub engages properly with the steering pillar, that the mountings are tightened securely, and that there is no play. Then verify clearance with the control switches and the final position of the steering wheel.
Removing a steering wheel with an airbag and installing the new assembly must be performed by a professional, in accordance with the vehicle’s procedures and the product instructions. If in doubt, our technicians can help you choose the right steering wheel hub and steering wheel.
Key Features of the GT2i Hub for BMW
- BMW E36, E39, and Z3 models with airbags are grouped under a single part number.
- Allows for the installation of a compatible sport steering wheel on the vehicle’s steering column.
- Mounting for a 6-hole steering wheel.
