OBP coupler for FP300B fuel pump - Dash8 outlet - centre distance 76 mm
Reference:
OBP-FPM-1
Supplier Ref.:
OBP-FPM-1

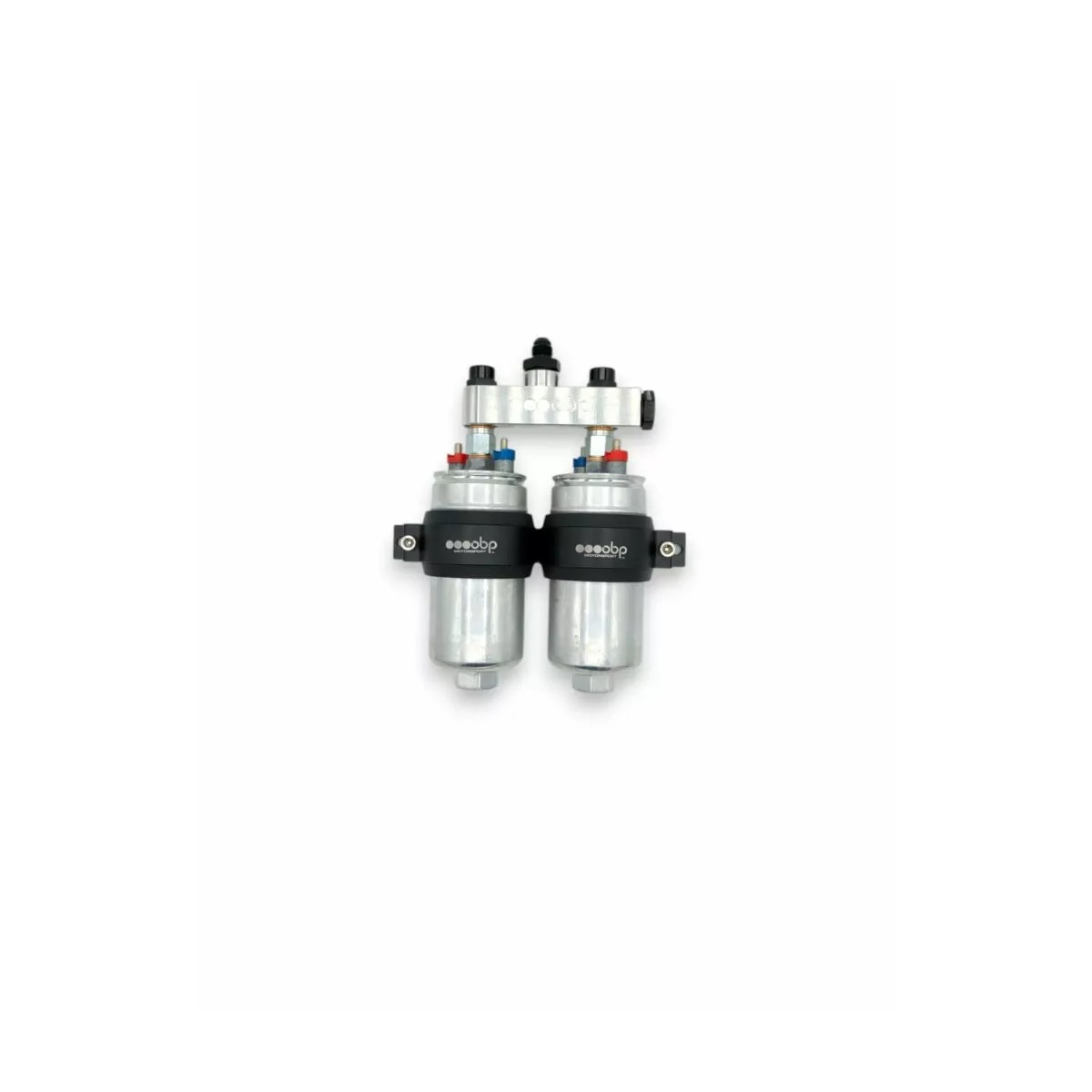

OBP TWIN BOSCH 044 coupler for 2 fuel pumps (fuel pumps sold separately)
Machined from 6061 aluminium, this mounting kit allows two 044 fuel pumps (or equivalent) to be connected using a single outlet, reducing the number of pipe fittings required.
The fuel pump outlets simply insert into the 2 holes that use the fuel pump check valves, preventing backflow that could damage the pumps and reduce their service life.
The manifold can be equipped with either an in-line outlet (centre port) or a 90-degree fitting (end port). Both ports are AN/JIC 8 threaded and when only one is used, the other can be plugged.
A double mounting bracket for fuel pumps is also available to achieve the perfect centre-to-centre spacing.
Centre-to-centre distance between holes: 76 mm

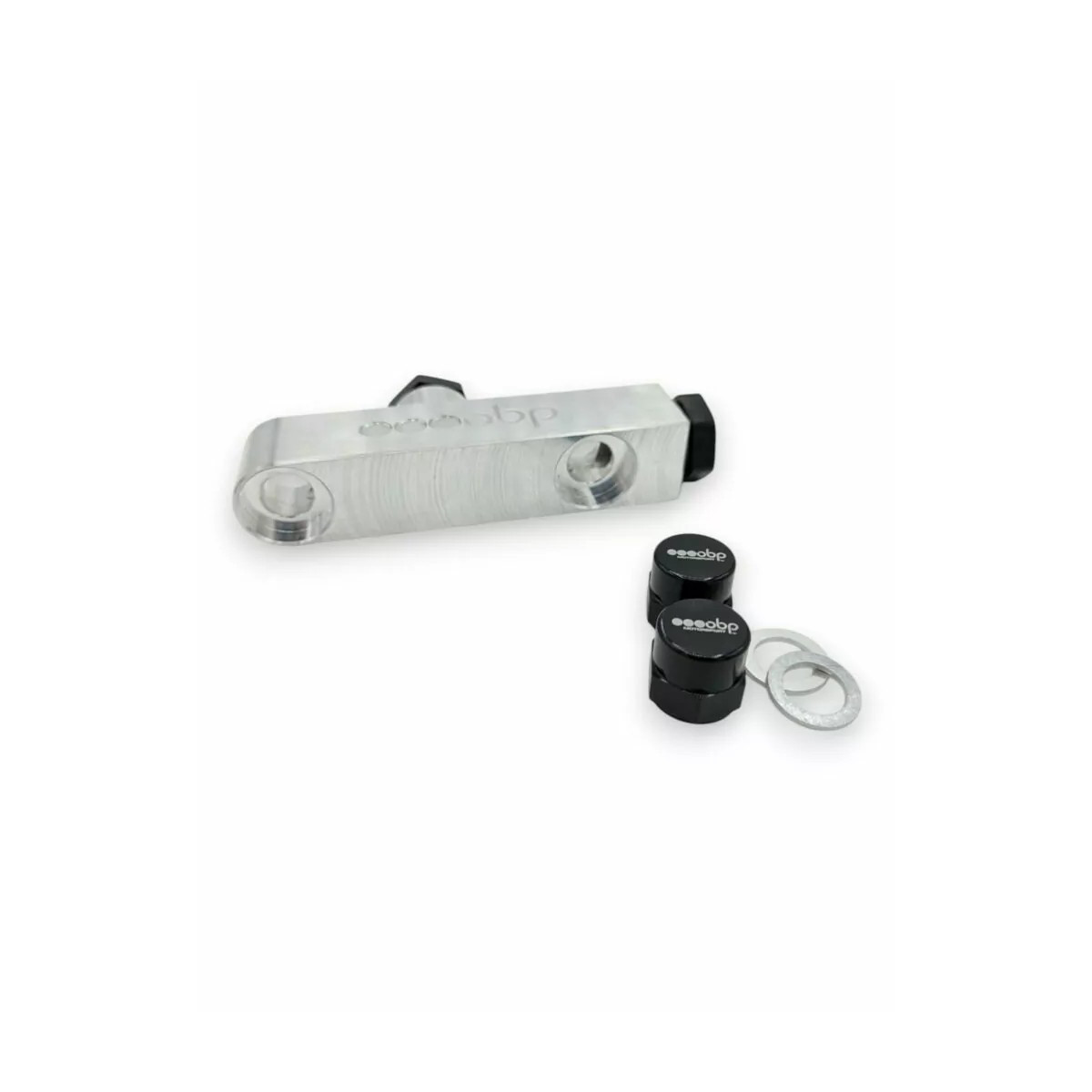

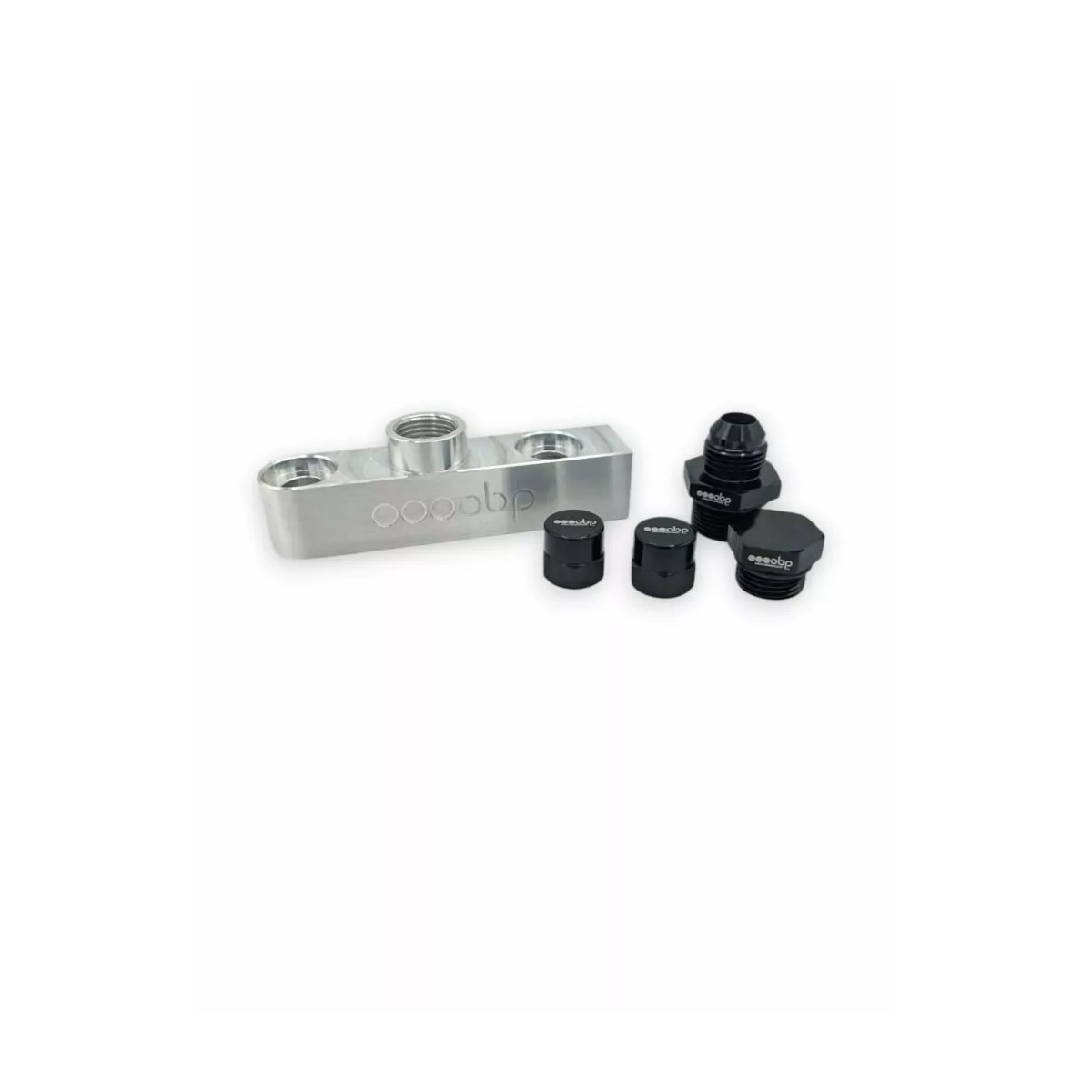

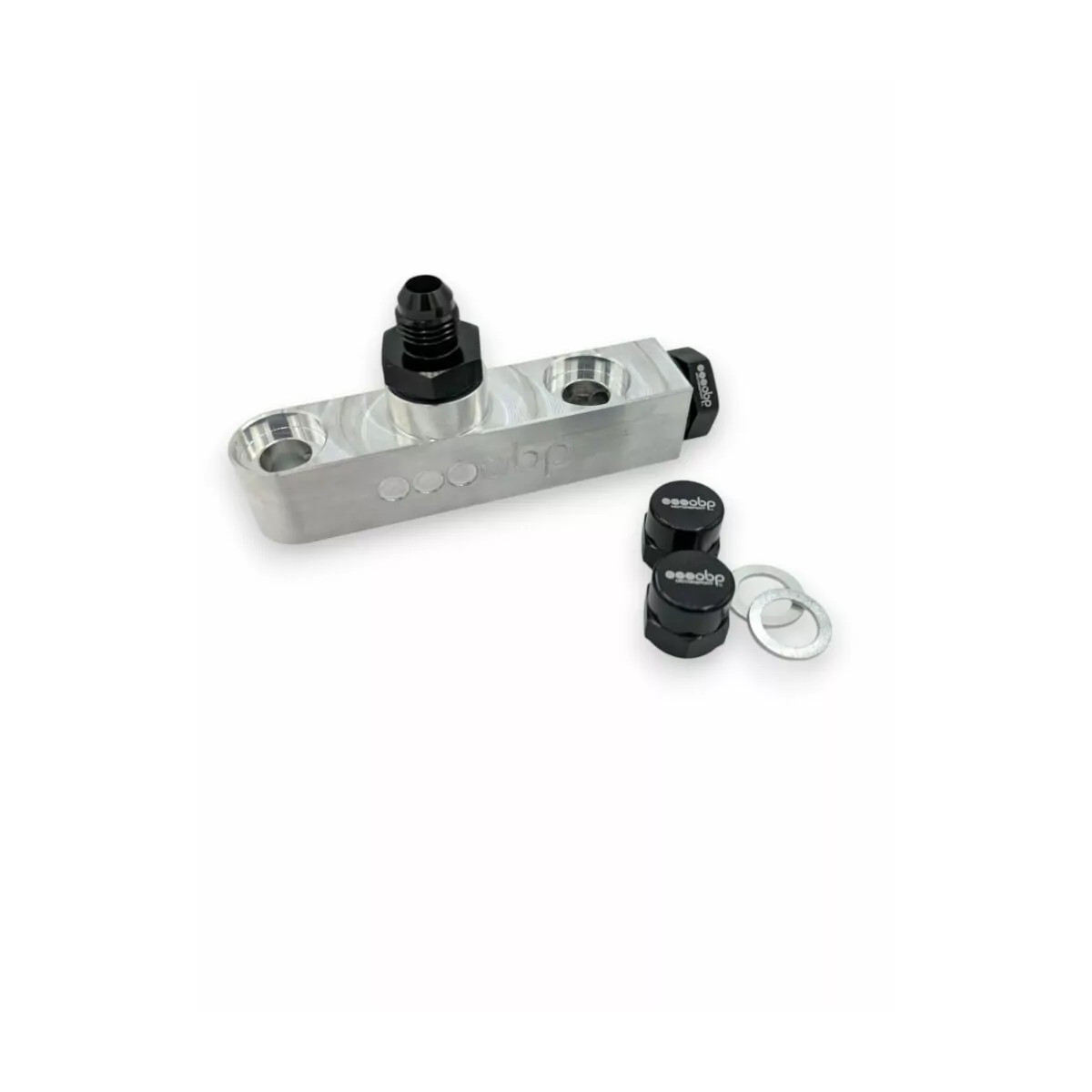

This kit includes the following parts:
2 x M12x1.5 plugs
2 x M12 crush washers
1 x AN/JIC 8 plug
1 x CNC manifold
1 x AN/JIC 8 to AN/JIC 6 ORB adapter
Fuel pumps sold separately!
-
Main materialAluminum
