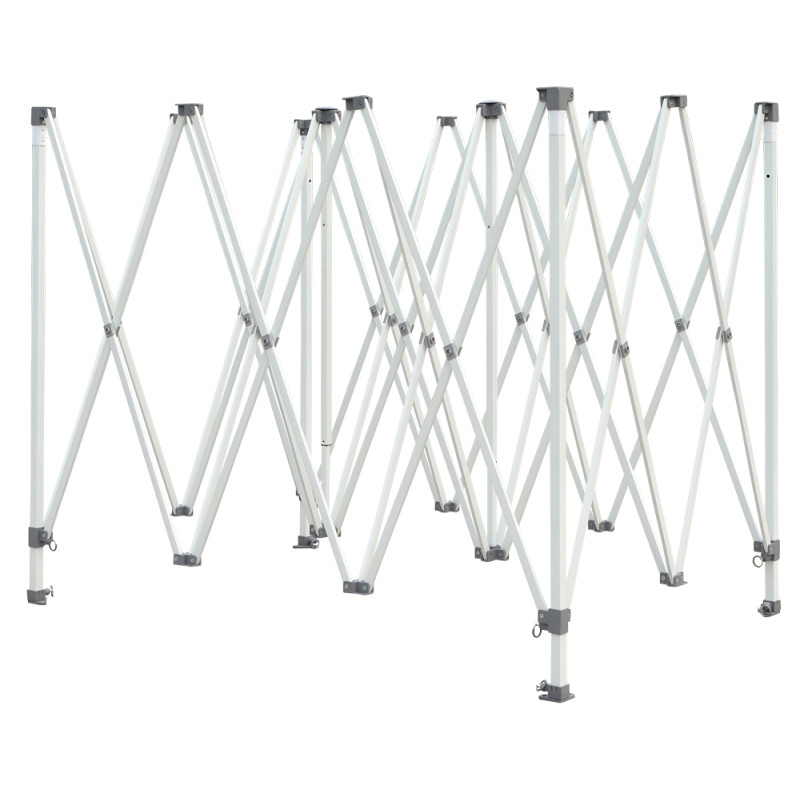

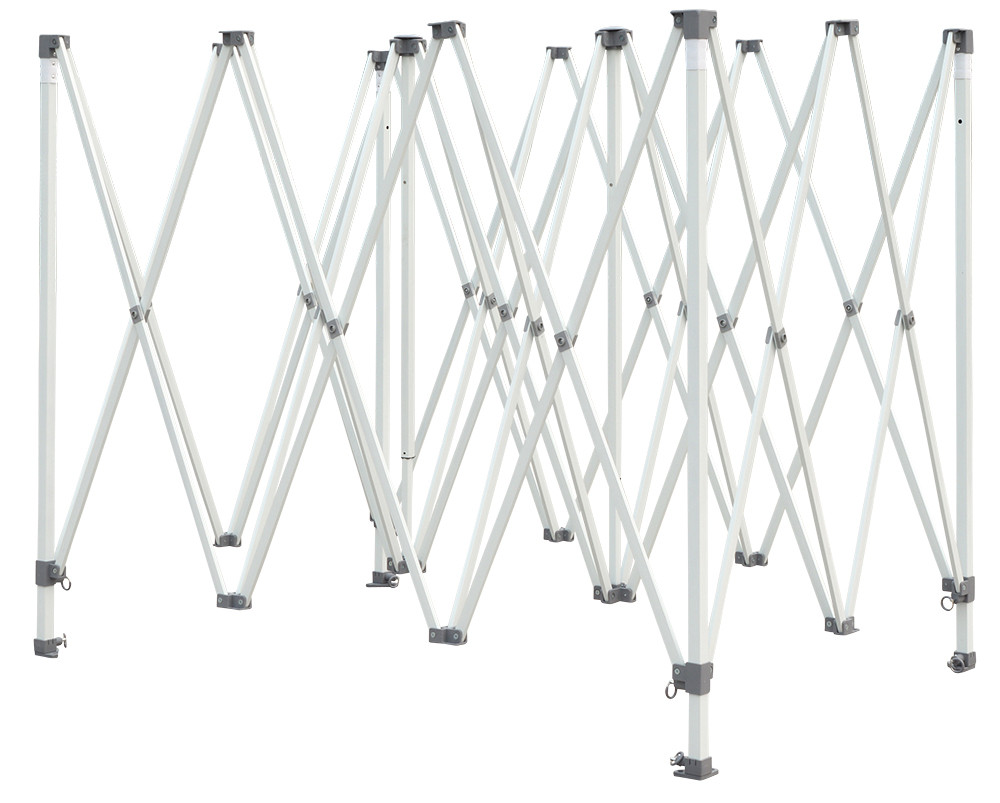

Steel frame only for 3 × 4.5 m GT2i Race & Safety folding tent

The steel frame alone for the 3 × 4.5 m GT2i Race & Safety folding tent allows you to replace the frame of your service tent while retaining a compatible roof and walls. This size is suitable for installation in rally service parks and paddocks.

This tent frame features 30 × 30 mm square steel posts, 1 mm thick, coated with white epoxy paint. The 25 × 12 mm steel x-cross members facilitate the setup and takedown of the structure.

The composite connection parts ensure the resistance of the joints, absorb shocks, and maintain the integrity of the joints over time. Locking and unlocking are accomplished using spring-loaded pins fitted with a sheathed ring. The legs feature 70 × 70 mm reinforced nylon bases.

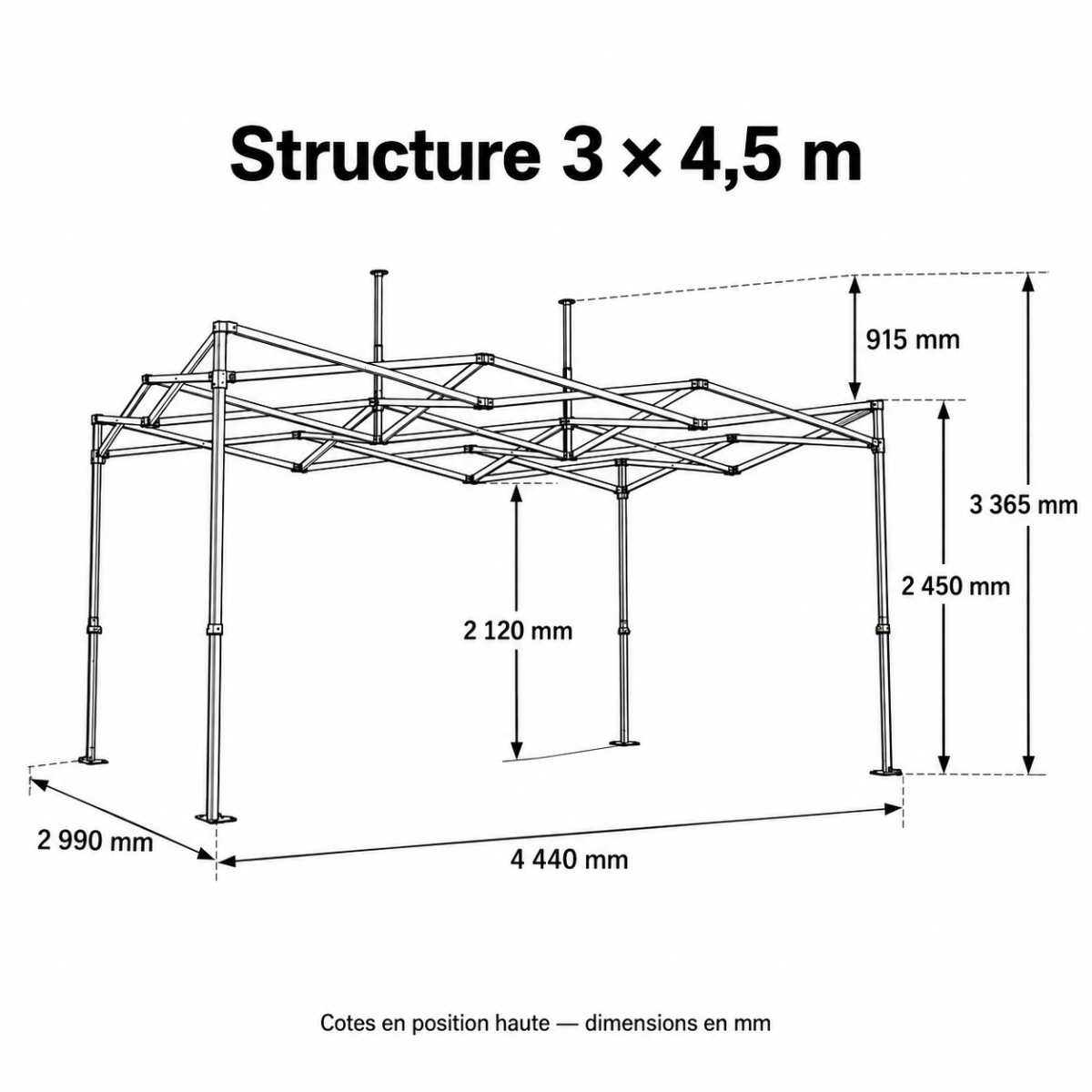

The tent has an actual footprint of 2.99 × 4.44 m. Its telescoping legs offer three height settings: 2.25 m, 2.35 m, and 2.45 m. In the highest position shown in the diagram, the total height at the peak reaches 3.365 m, and the headroom under the x-cross members is 2.12 m.

Tool-free mounting makes it easy to set up this folding canopy. The included carrying bag allows you to store and transport the frame between events.

The frame is sold separately with its carrying bag; it does not include a roof cover or side walls. Weight: 28 kg. Warranty: 2 years.

Technical Specifications

• Brand: GT2i Race & Safety
• PartNumber: GT-T3X4-5-STRUCT
• Type: Frame only for folding tent
• Nominal dimensions: 3 × 4.5 m
• Actual ground sizes: 2,990 × 4,440 mm
• Frame material: steel
• Finish: white epoxy paint
• Cross-section of square poles: 30 × 30 mm
• Post thickness: 1 mm
• X-cross member dimensions: 25 × 12 mm
• X-cross member thickness: 0.8 mm
• Leg adjustment positions: 2,250, 2,350, and 2,450 mm
• Overall height at the top in the highest position: 3,365 mm
• Clear height under the x-cross members in the raised position: 2,120 mm
• Height of the side frame in the raised position: 2,450 mm
• Height between the side frame and the top: 915 mm
• Connecting parts: composite material
• Locking system: spring-loaded pins with sheathed rings
• Fasteners: steel
• Leg bases: reinforced truss
• Base sizes: 70 × 70 mm, thickness 10 mm
• Weight: 28 kg
• Mounting: no tools required
• Included accessory: carrying bag
• Roof and side walls: not included
• Warranty: 2 years

Key Features

• Folding steel frame with white epoxy paint.
• Three height adjustment positions.
• Impact-resistant composite connectors with impact resistance.
• Shift arrester with spring-loaded pins and a sheathed ring.
• Carrying bag included for storage and transport.

Usage Instructions

Set up the canopy on a suitable surface and ensure it is properly stowed and weighted according to the conditions of use. Check that the roof and front panels are compatible before mounting them. Dry the components before storing them, and store the entire unit in a dry place.
