Powersprint Exhaust Reducer Cone 89 mm to 50 mm 900107 - PS-900107 - 900107 - 3661768153974

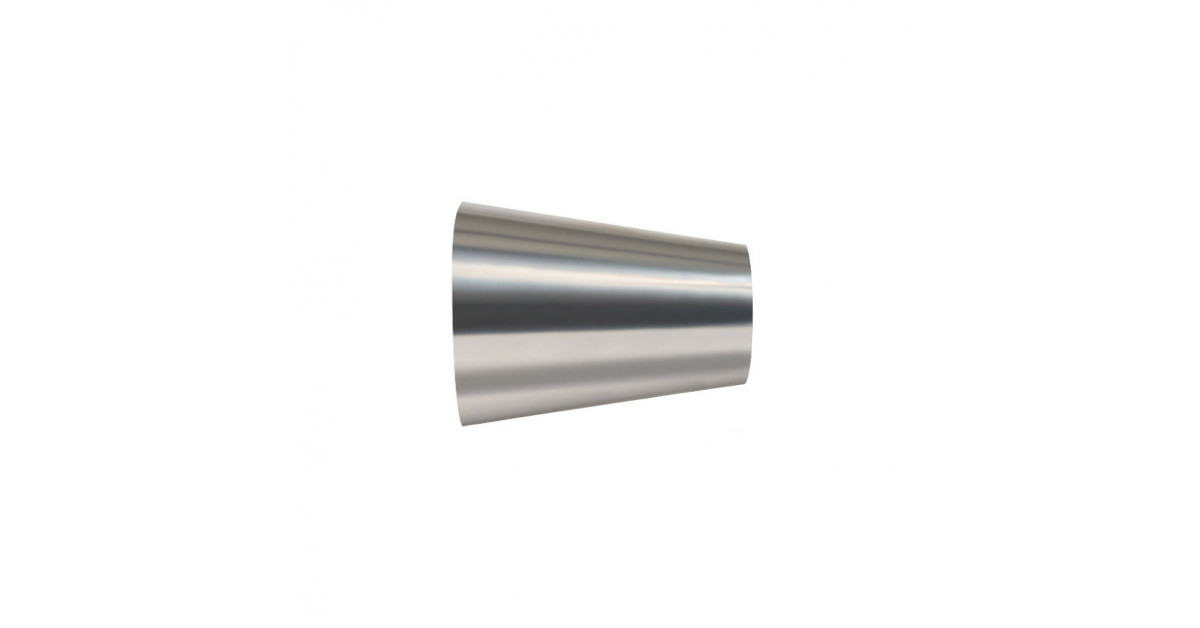

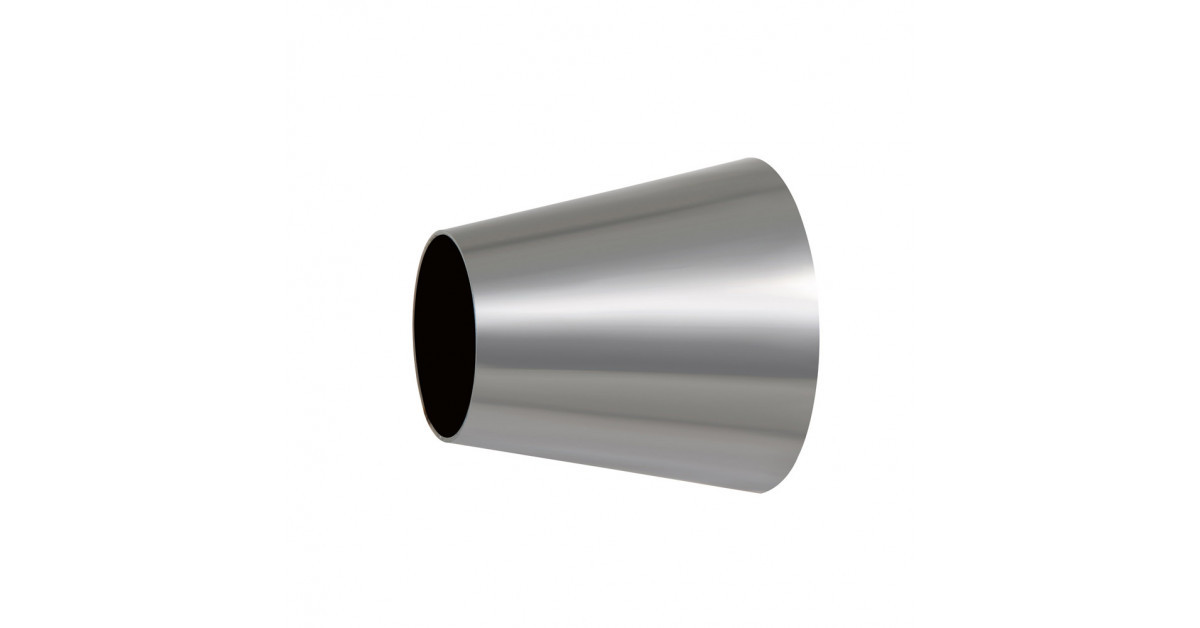

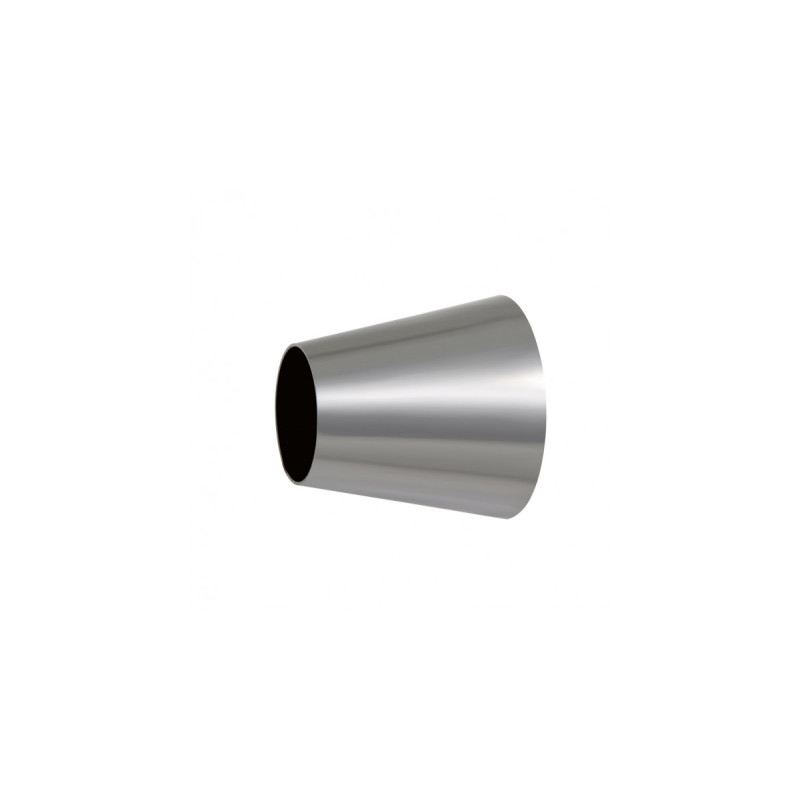

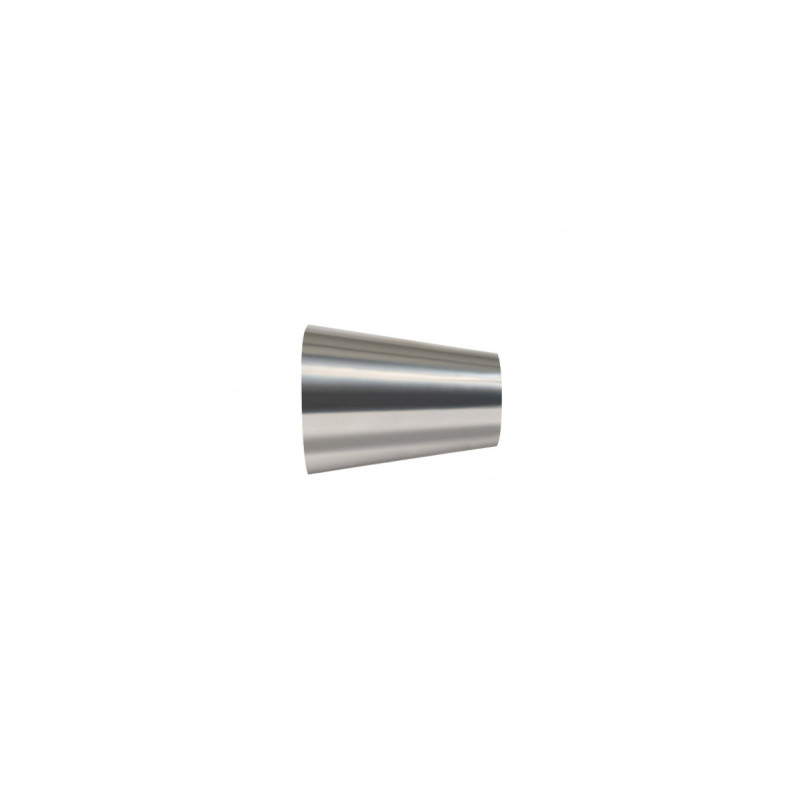

Powersprint Stainless Steel Exhaust Reducer Cone, 89 to 50 mm

Reference: PS-900107

Supplier Ref.: 900107

Learn more

CHF 27.70 Tax included

Available to order

Unavailable in store (Promasens)

Within 20 days on average.

CHF 27.70 (tax incl.)

Earn 27 loyalty points

The Powersprint exhaust reducer cone provides a smooth transition between two pipes of different diameters when building or modifying a custom exhaust line. This symmetrical version allows for a transition from a nominal connection of 89 mm to 50 mm over an overall length of just 100 mm.

Made of stainless steel with a wall thickness of 1.5 mm, this reducer serves as a ready-to-install component for an exhaust line. In particular, it allows for a clean connection between two sections of different diameters without having to manually reduce the diameter of a straight pipe.

A gradual reduction from 89 mm to 50 mm

Unlike an abrupt change in diameter, the conical shape ensures a gradual transition between the two diameters. The Powersprint cone features a symmetrical design with a socket diameter of 89.5 mm on one side and 50.5 mm on the other.

These sizes correspond to nominal connections of 89 mm and 50 mm. The slightly larger socket diameters facilitate assembly with the corresponding tubes when building the exhaust system.

To build a custom exhaust line

The Powersprint reducer cone is particularly well-suited for exhaust fabrication, adaptation, and modification projects. It allows for handling a change in diameter between different sections of an exhaust line when the components used do not have the same cross-section.

It can thus be incorporated when building a custom exhaust line or to adapt the connection between different pipes and components of the exhaust system, depending on the sizes required for mounting.

This type of connector is particularly useful in automotive tuning and racing when an exhaust system must be specifically designed around the vehicle’s configuration.

Stainless steel construction with a 1.5 mm wall thickness

The stainless steel construction makes this reducer suitable for integration into an exhaust system subjected to the temperatures and operating conditions typical of that environment.

With a wall thickness of 1.5 mm, the reducer remains suitable for the fabrication and assembly of a custom exhaust system. Its overall length of 100 mm also allows for a change in diameter within a limited space.

Be sure to verify the diameters before mounting

To select the correct exhaust fitting, it is important to distinguish between the pipe’s nominal diameter and the actual diameter intended for the connection.

For this Powersprint model, the nominal connection sizes are 89 mm and 50 mm, while the cone diameters are 89.5 mm and 50.5 mm. Therefore, verify the outside diameters of the pipes to be connected as well as the desired type of assembly before manufacturing your system.

Technical Specifications
