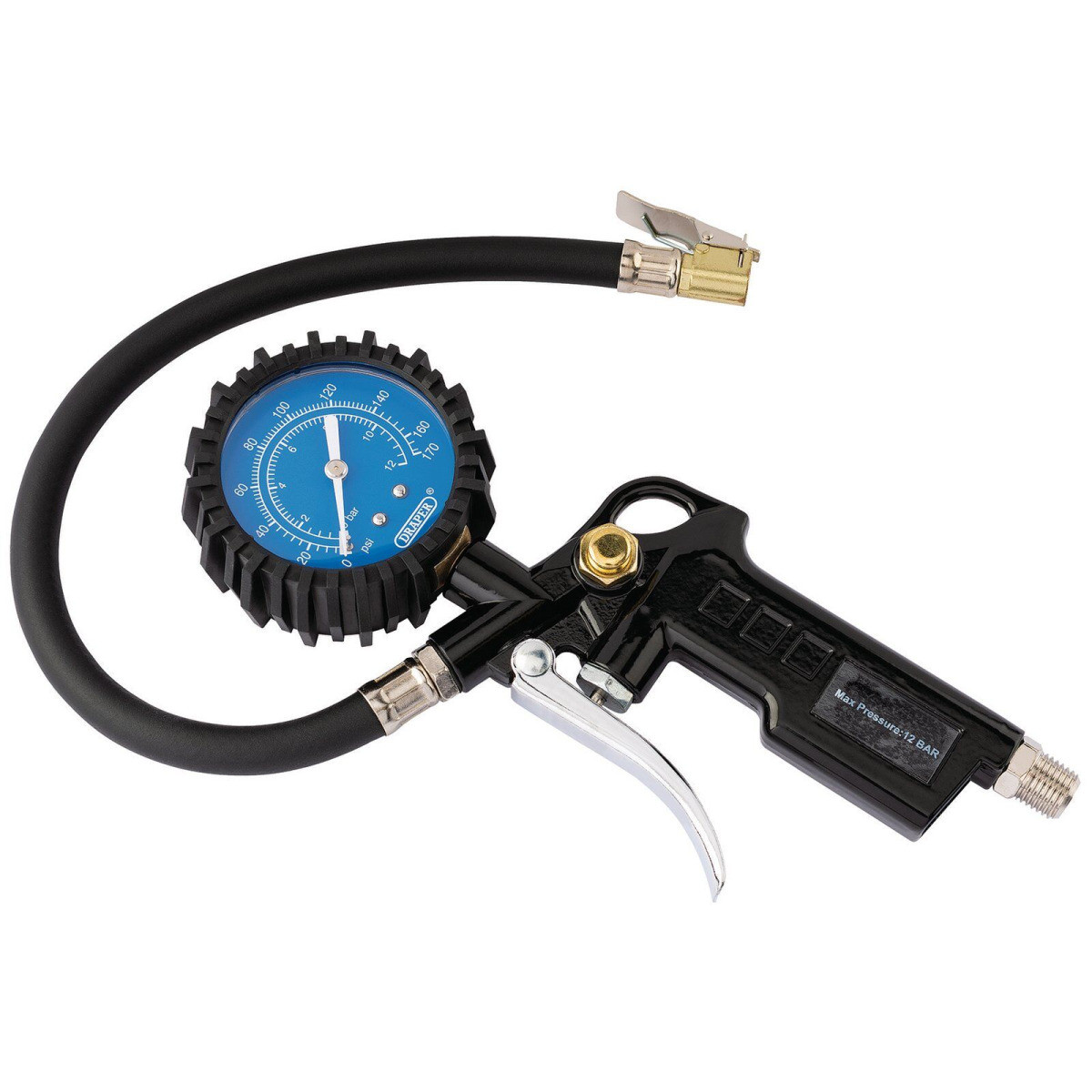

Draper Tools Pneumatic Tire Inflation Tool with Gauge

The Draper Tools pneumatic tire inflator allows you to quickly check and adjust tire pressure using a compressed air supply. It is equipped with a protected analog pressure gauge, a flexible hose with a clip-on valve nozzle, and a pistol handle for easy use in workshops, garages, paddocks, or during race support.

The inflator features a 65 mm diameter analog gauge, protected by a reinforced rubber casing to better withstand impacts and repeated handling. Its measurement range covers 0 to 12 bar / 0 to 170 psi, making it easy to check the pressure of many automotive tires.

The 330 mm flexible hose provides good freedom of movement around the wheel. It ends with a snap-on nozzle compatible with Schrader valves, which are widely used on cars, utility vehicles, motorcycles, and trailers.

Connection to the compressed air supply is made via a 1/4" BSP tapered inlet. The nozzle comes with a 1/4" BSP male adapter.

Note: The quick connector fitting or coupler used to connect the nozzle directly to the compressor flexible is not included. It must be selected based on the quick connector standard used in your pneumatic system.

This tire inflation gun is suitable for both routine maintenance and repeated pressure checks before a track session, a rally, or during a workshop service.

Technical Specifications

• Brand: Draper Tools
• Manufacturer Part Number: 91273
• Type: Pneumatic tire inflation device
• Use: checking and adjusting tire pressure
• Valve type: Schrader
• Valve-side nozzle: snap-on nozzle
• Flexible length: 0.33 m
• Gauge: analog
• Gauge diameter: 65 mm
• Gauge protection: reinforced rubber carcass
• Pressure range: 0 to 12 bar
• Range in psi: 0 to 170 psi
• Maximum inflation pressure: 12 bar / 170 psi
• Control: pistol handle with trigger
• Power source: compressed air
• Air inlet: 1/4" BSP tapered
• Included adapter: 1/4" BSP male
• Quick-connect coupler for flexible air hose: not included
• Applications: cars, commercial vehicles, motorcycles, trailers, workshops, paddocks, and race support
