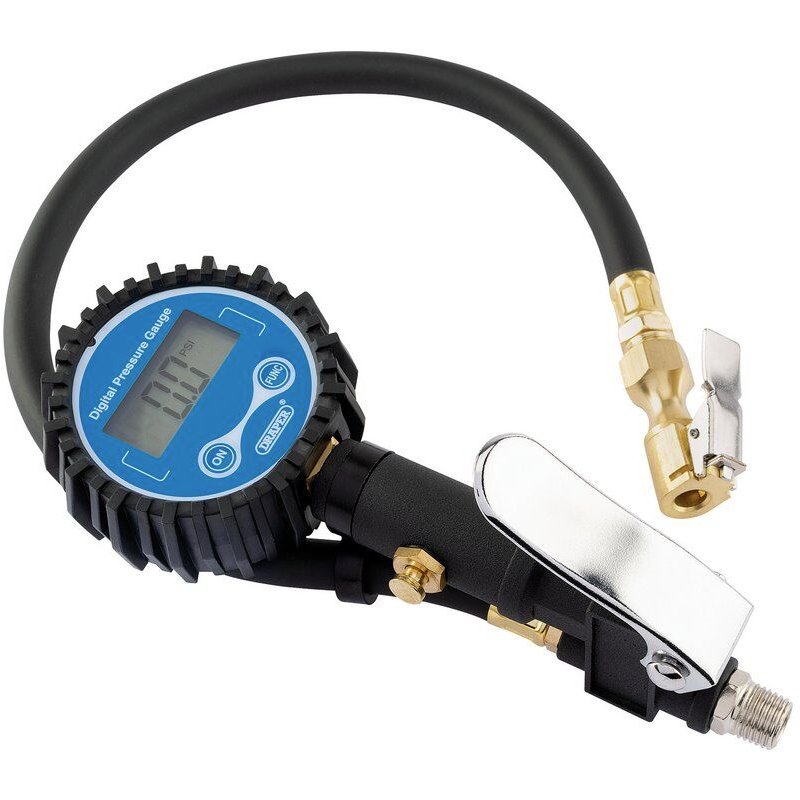

The Draper Tools tire inflator with digital pressure gauge allows you to precisely monitor and adjust tire pressure using a compressed air supply. It is equipped with a digital display, a 450 mm flexible hose, and a clip-on nozzle for Schrader valves, the standard valve type commonly used on cars.
Its 65 mm diameter digital pressure gauge provides a direct pressure reading. The dial is surrounded by a rubber guard that helps protect the unit from impacts and repeated handling in a workshop environment.
With a measurement range of 0 to 20 bar / 0 to 300 psi, this inflator is suitable for checking and adjusting the pressure of a wide variety of tires. The 450 mm flexible hose facilitates maneuvering around the wheel and provides easy access to the valve.
The flexible hose ends with a clip-on nozzle for Schrader valves. This system keeps the nozzle securely attached to the valve while checking and inflating the tire, especially during successive adjustments of the pressure.
Connection to the compressed air system is made via a 1/4" BSP tapered female air inlet. A 1/4" BSP male adapter is included.
Note: The quick connector used to attach the inflator to the compressor flexible is not included. It must be selected separately based on the quick connector standard used in the pneumatic system.
This Draper Tools inflator is particularly well-suited for regular tire pressure checks in a workshop, garage, paddock, or at a race event, where tire pressure must be checked and adjusted quickly.
Technical Specifications
- Brand: Draper Tools
- Manufacturer Part Number: 91327
- Type: pneumatic tire inflator
- Gauge: digital
- Gauge diameter: 65 mm
- Gauge protection: rubber guard
- Pressure range: 0 to 20 bar
- Pressure range in psi: 0 to 300 psi
- Valve type: Schrader (standard automotive valve)
- Tire-side connector: snap-on connector for Schrader valve
- Flexible length: 450 mm
- Power source: compressed air supply
- Air inlet: 1/4" BSP tapered female
- Included adapter: 1/4" BSP male
- Quick connector for compressed air supply: not included
- Use: Inflation and checking of tire pressure
- Applications: automotive, workshop, garage, pit area, and race support
