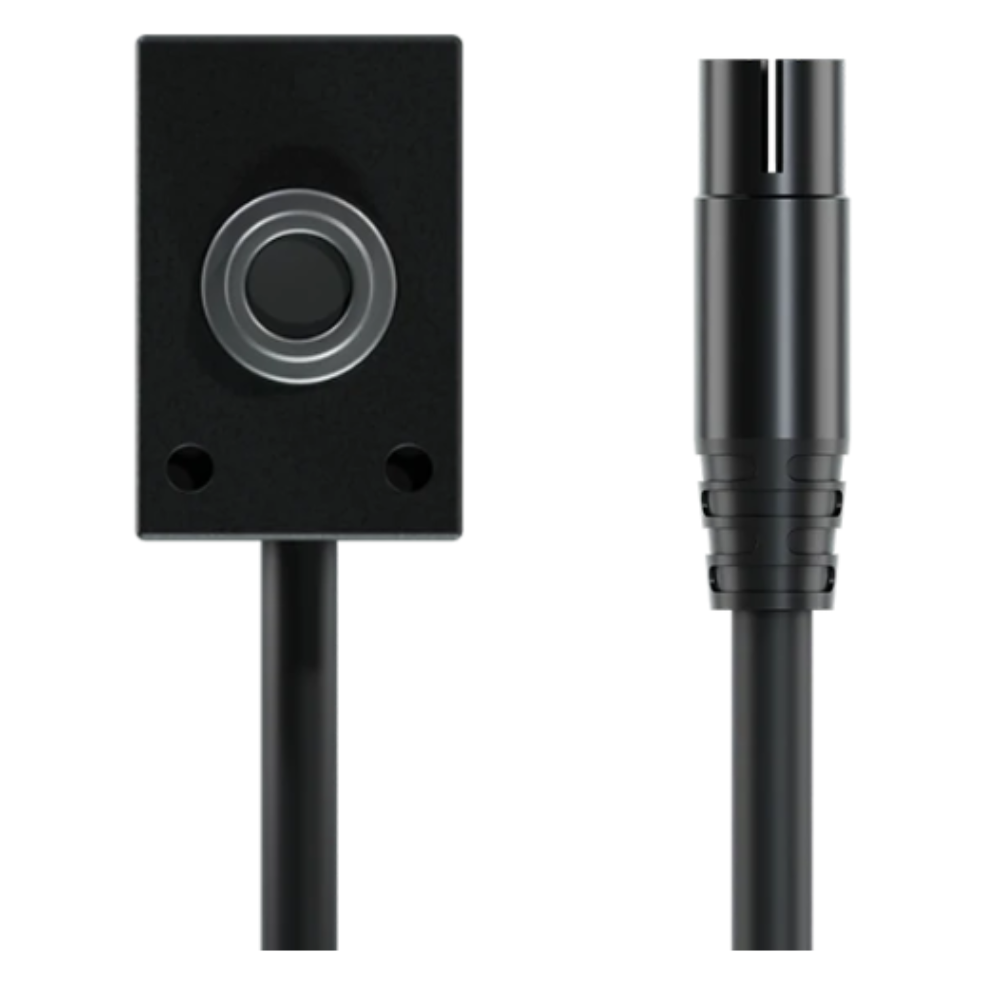

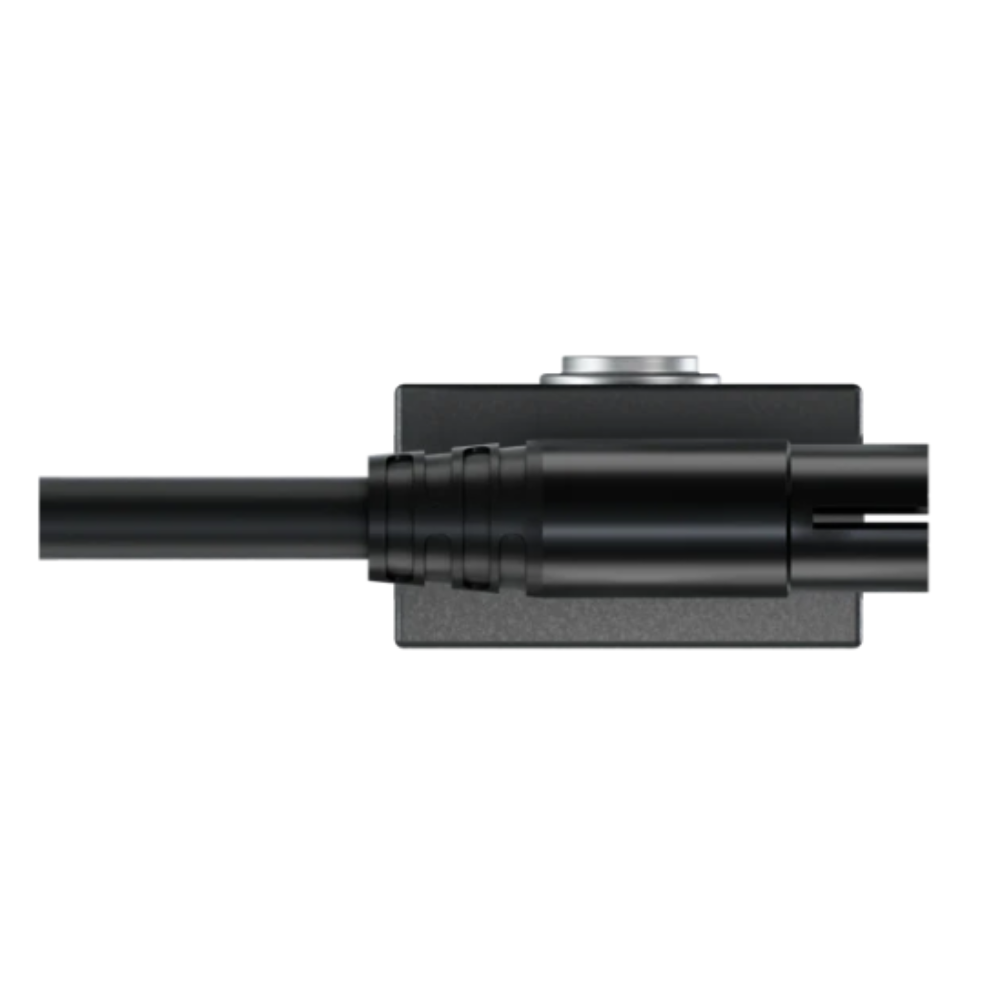

The AiM Infrared Tire Temperature Sensor offers an accurate and versatile solution for monitoring the surface temperature of your tires on the track. Featuring four-pin 719 black plug connections, it adapts easily to all AiM recorders and dashboard display/recorders. This compact sensor uses infrared technology to measure tire temperature without contact, with a measurement range of 0 to 150ºC and a cable length of 25 cm.
Each sensor can be positioned between 30 and 150 mm from the tire, ideally with three sensors per tire (inside, center and outside) for a complete analysis. However, one sensor per tire can also be used, depending on budget or input channel constraints.
With an output signal of 0-5 V, a measurement field of 35° and a working range of -20/120°C, this sensor offers precise measurements in a variety of race conditions. Compact with dimensions of 26.6 x 17.2 mm and waterproof to IP65, it is designed to withstand the rigors of the track.
