Complete AIM tire temperature sensor kit

Discover the AiM tire temperature sensor kit, specially designed to accurately measure the surface temperature of your tires. This kit provides crucial information on chassis setup, enabling you to adjust your configuration for better performance.

With a CAN connection and including four temperature sensors, this kit is perfectly suited for easy integration with your MyChron5 S & MyChron 5 S 2T timing system.

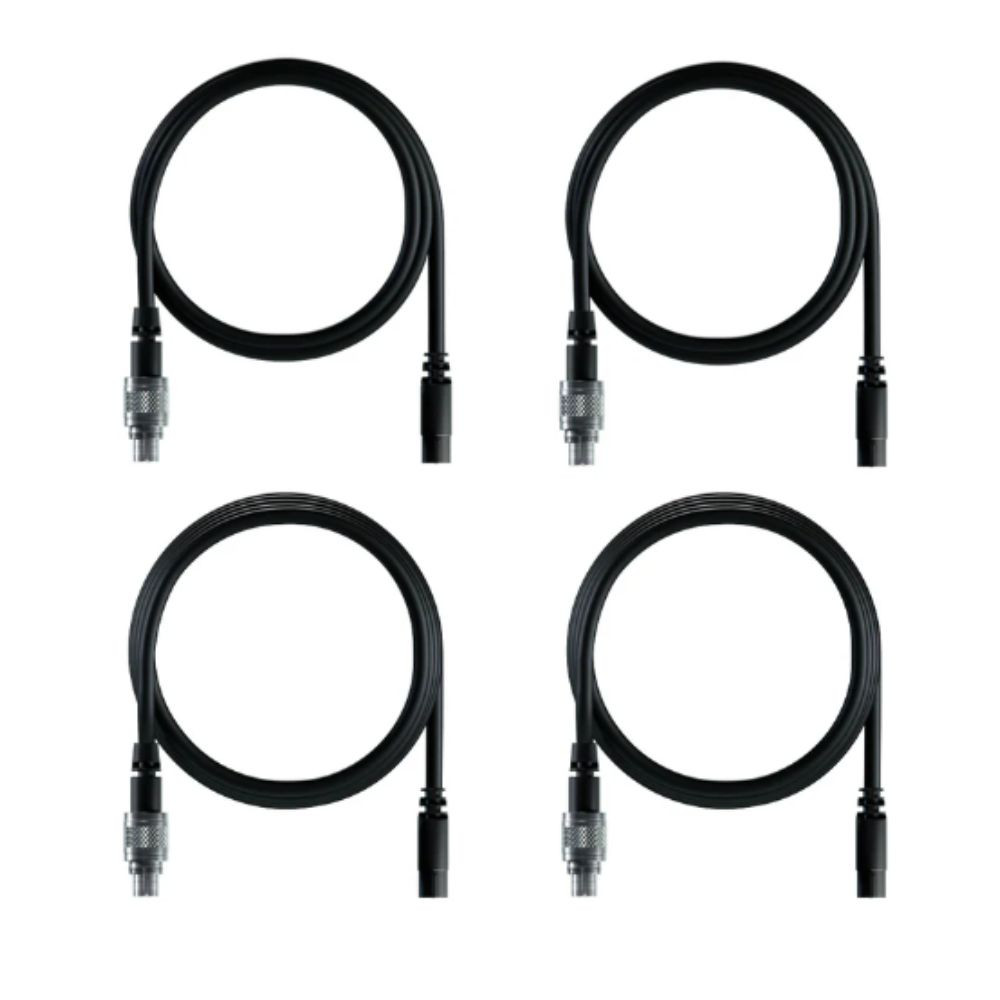

What's more, it offers connection to MyChron5 S and MyChron5 S 2T via the IR temperature controller, with a 0-5V output signal and a 35° field of view. The sensor's temperature range extends from -20°C to 120°C, and the kit comes with two 1-meter 4-pin 712-719 patch cords and two 2-meter 4-pin 712-719 patch cords.

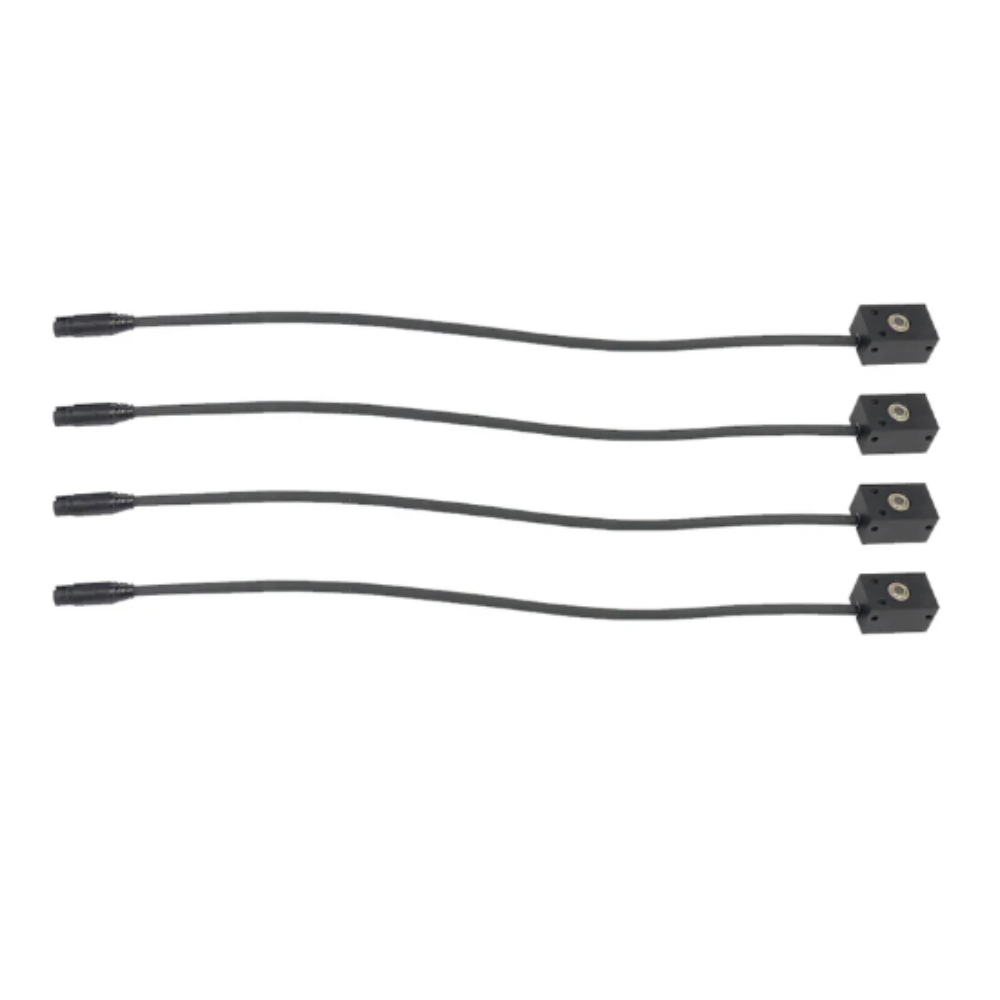

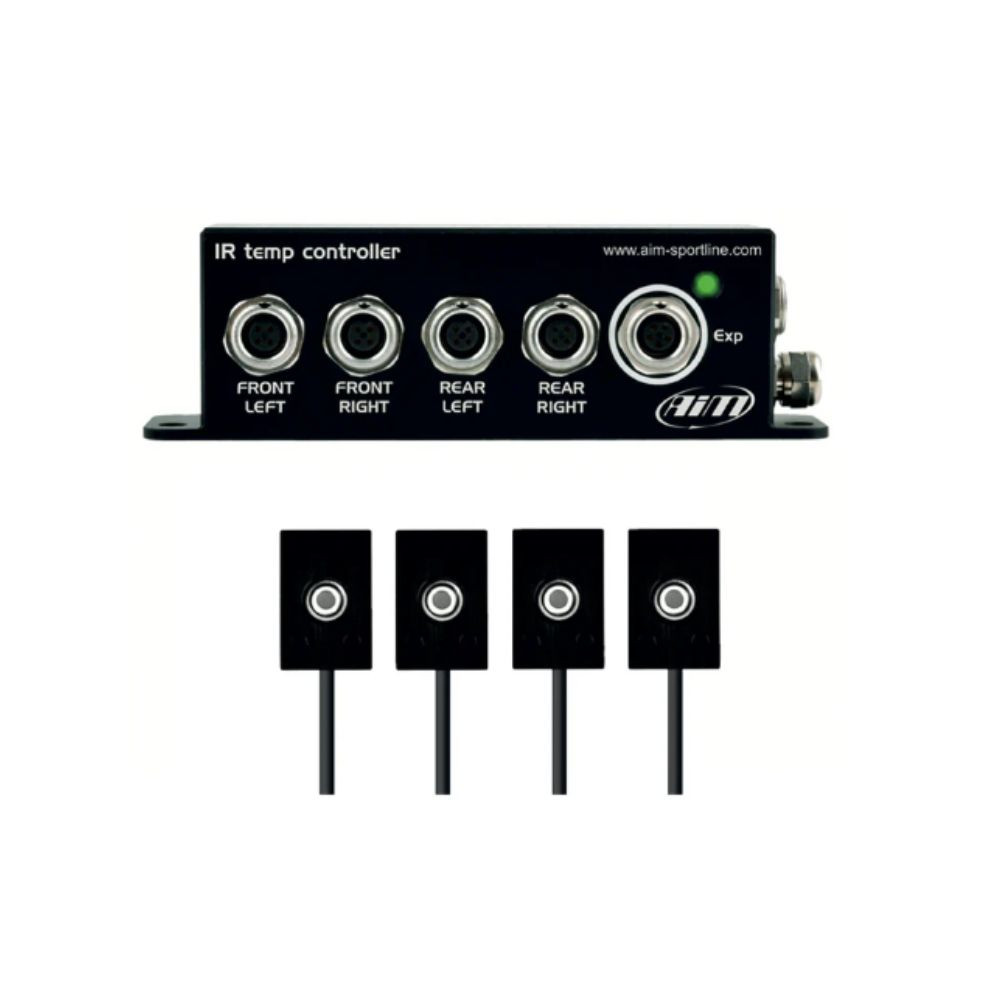

The IR temperature controller measures 127.6 x 32 x 39 mm, with a 400 mm cable, while the sensor itself measures 26.6 x 17.2 mm with a 250 mm sensor cable. The essential accessory for drivers looking to maximize their performance and grip on the track.
