VDO Cockpit Vision Water Temperature Gauge, Ø52 mm, 40 to 120 °C
Reference:
V-TE310-010-012
Supplier Ref.:
310-010-012K

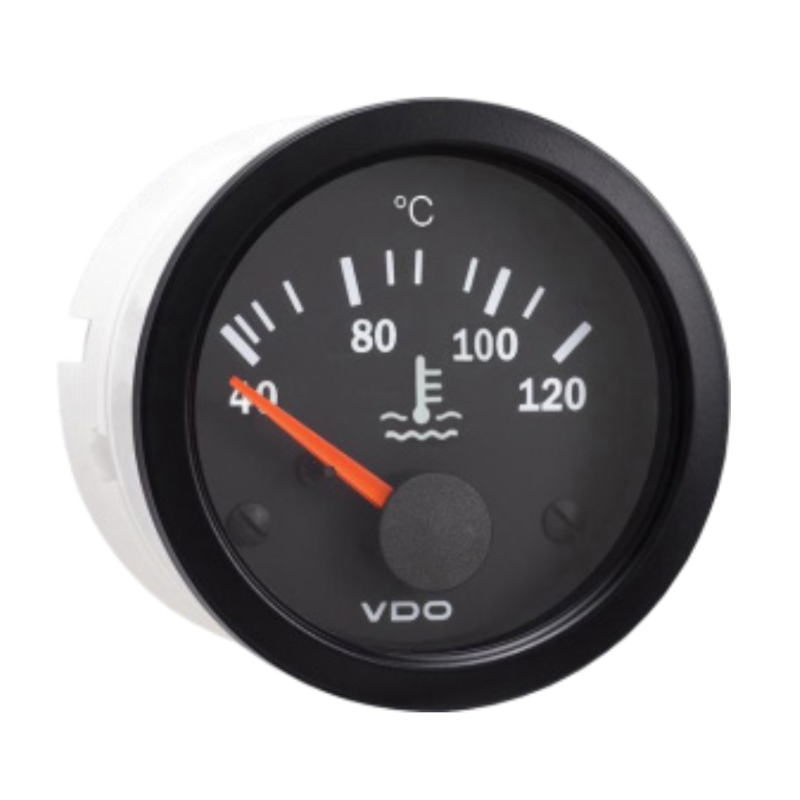

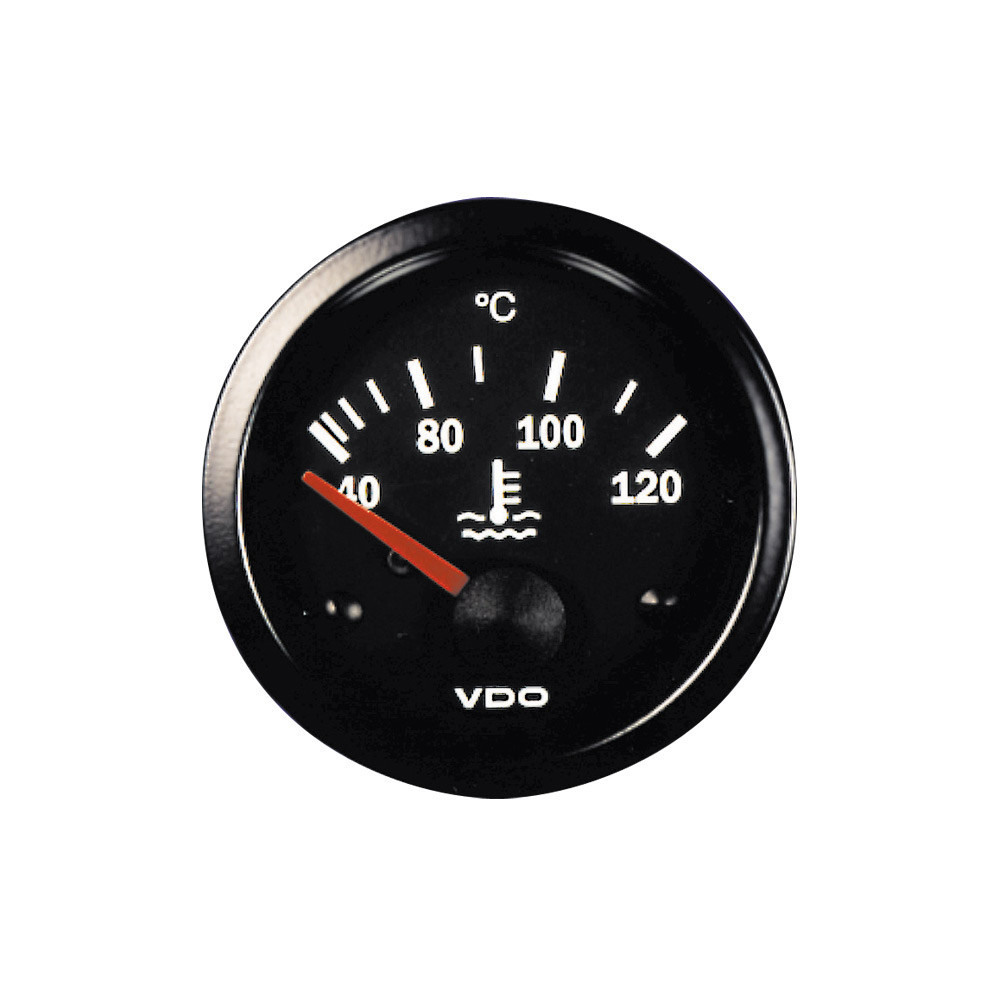

The VDO Cockpit Vision Water Temperature Gauge displays the cooling fluid temperature on a black dial. Its 52 mm bolt hole diameter allows for installation in the dashboard. The display range is 40 to 120 °C.
The analog connection uses 287.4 to 22.7 ?. Verify compatibility with the signal or characteristic curve of the sensor being used before wiring.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 310-010-012K
- Type: Water Temperature Gauge
- Range: Cockpit Vision
- Bolt hole diameter: 52 mm
- Display range: 40 to 120 °c
- Operating voltage: 11 to 16 V DC
- Dial: Black
- Analog signal: 287.4 to 22.7 ?
- Installation depth: 67.5 mm

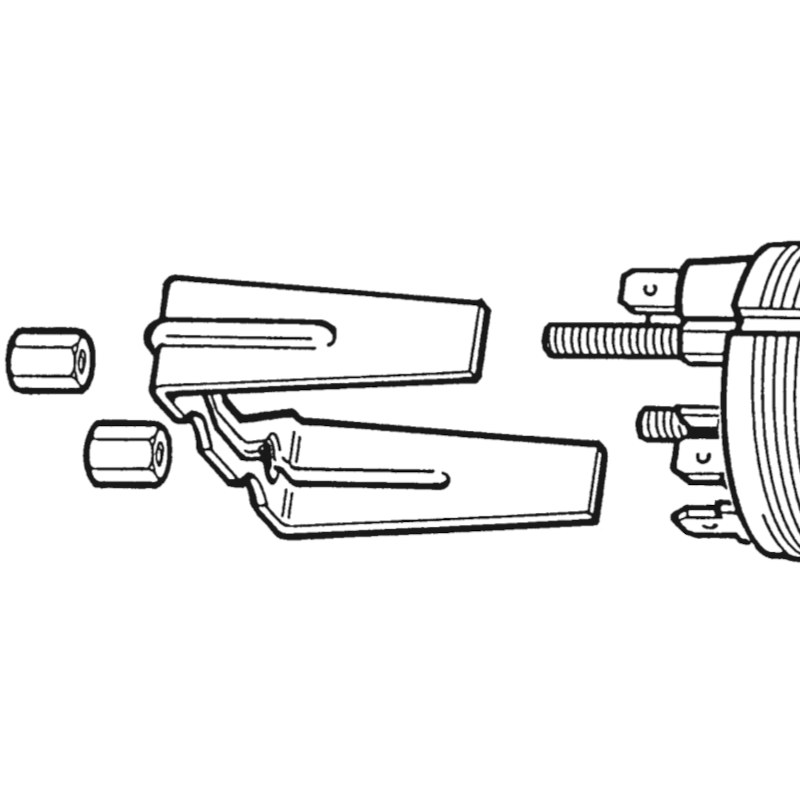

Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely by the VDO brand. Check the sensor’s curve, which must match the gauge’s input.
-
Diameter in mm52
-
Range in °C40/120
