VDO Cockpit Vision turbo pressure gauge, Ø52 mm, 0 to 3 bar
Reference:
V-PT150-015-001
Supplier Ref.:
150-015-001K

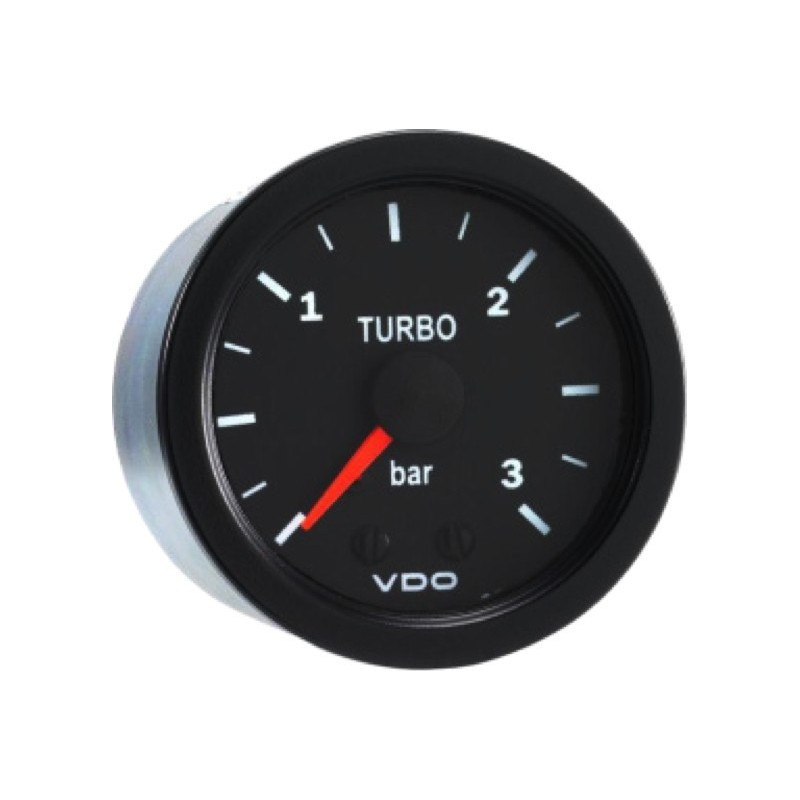

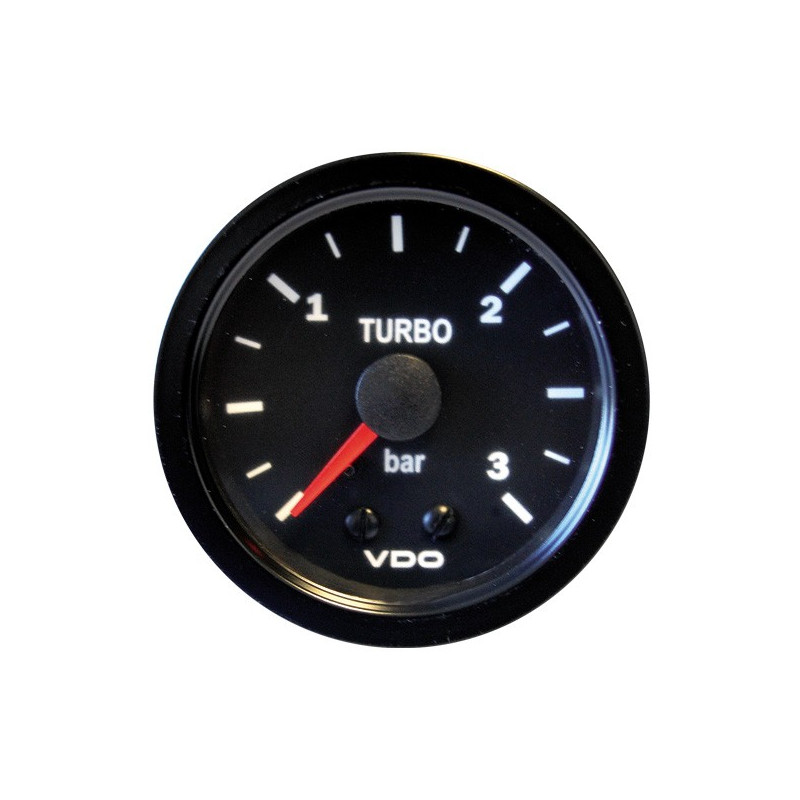

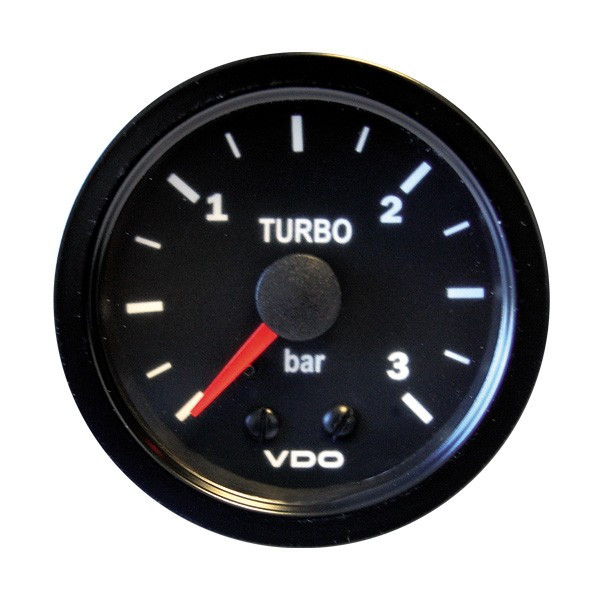

The VDO Cockpit Vision turbo pressure gauge displays the pressure of the connected circuit on a black dial. Its 52-mm bolt hole diameter allows it to be integrated into the dashboard. The display range is 0 to 3 bar.
The measurement is mechanical: pressure is transmitted directly to the gauge via an M12×150-threaded pipe. No electrical pressure sensor is used for this measurement.

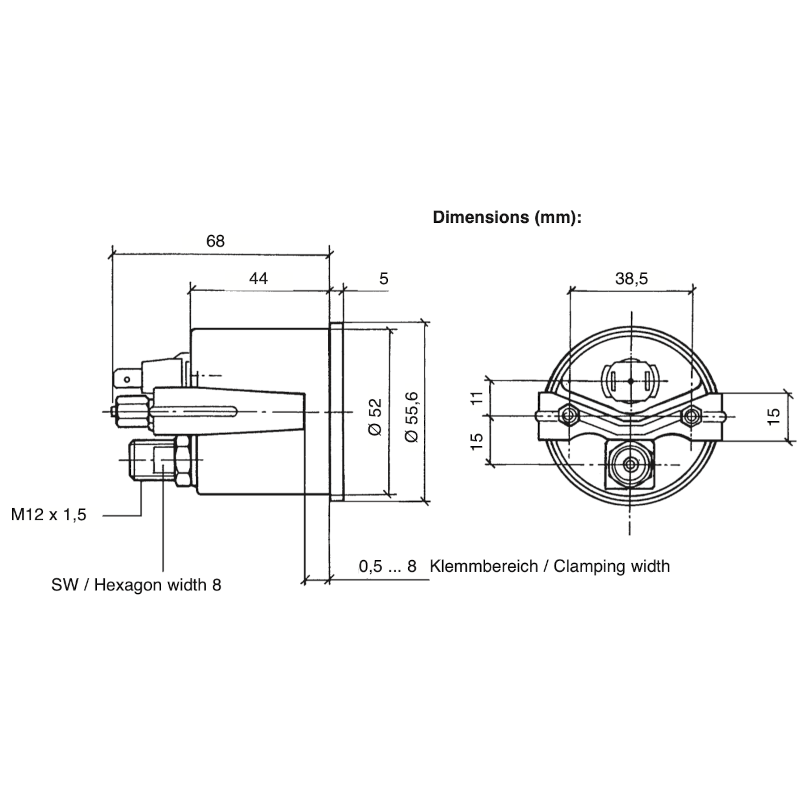

Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 150-015-001K
- Type: Turbo pressure gauge
- Range: Cockpit Vision
- Bolt hole diameter: 52 mm
- Display range: 0 to 3 bar
- Dial: Black
- Measurement principle: Mechanical
- Pressure connection: M12×150
- Installation depth: 67.5 mm

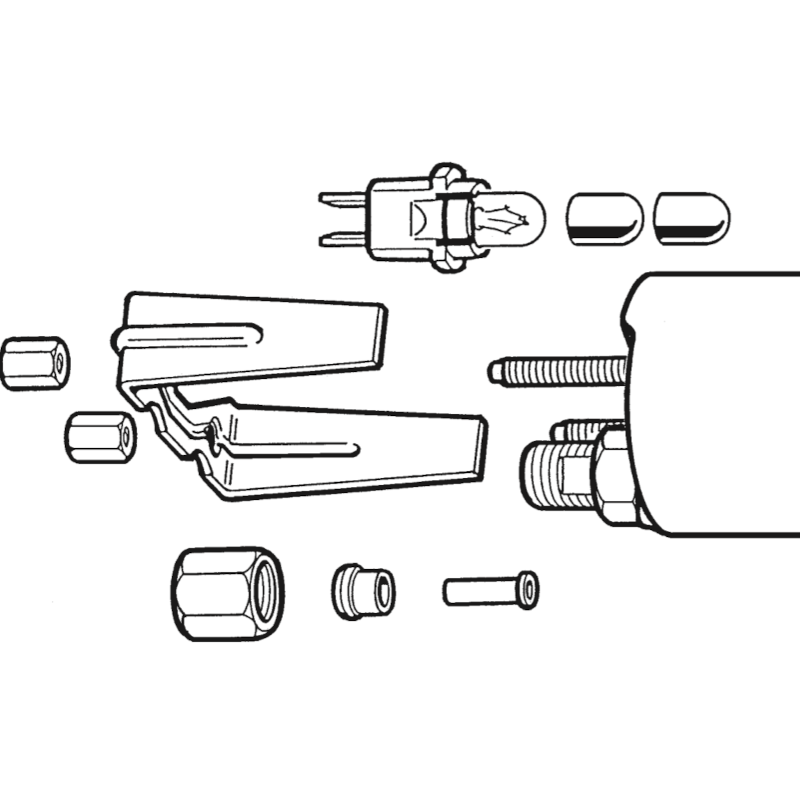

Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the connection diagram. Provide piping and fittings suitable for the pressure system.
-
Diameter in mm52
-
Background ColorBlack
-
Range in bar0/3
