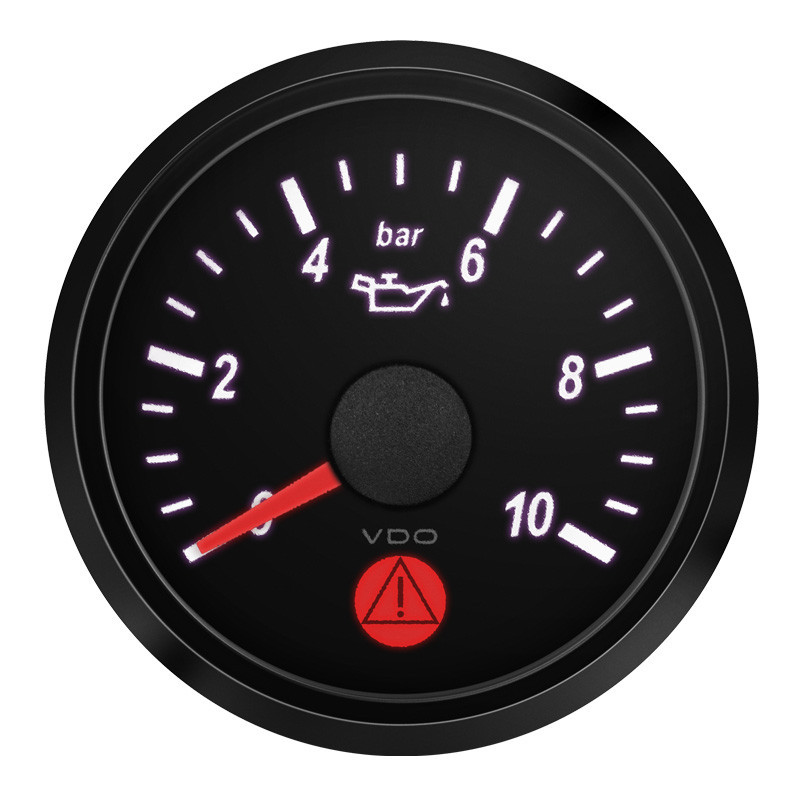

VDO SingleViu Oil Pressure Gauge, Ø52 mm, 0 to 10 bar

The VDO SingleViu oil pressure gauge displays engine oil pressure on a black dial. Its 52 mm bolt hole diameter allows for installation on the dashboard. The display range is 0 to 10 bar.

The analog connection uses 10 to 184 ?. Verify compatibility with the signal or curve of the sensor being used before wiring. The SingleViu range also supports the CAN bus with the SAE J1939 protocol. The operating mode must match the installation.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: A2C3833170001
• Type: Oil Pressure Gauge
• Range: SingleViu
• Bolt hole diameter: 52 mm
• Display range: 0 to 10 bar
• Operating voltage: 8 to 32 V DC
• Dial: Black
• Analog signal: 10 to 184 ?
• Communication: Analog or CAN SAE J1939
• Connector: 8-pin Molex
• Lighting: Programmable multicolor LED
• Connecting cable: Must be ordered separately

Compatibility and Mounting

Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely by the VDO brand. Check the shape of the sensor, which must match the indicator’s input.
