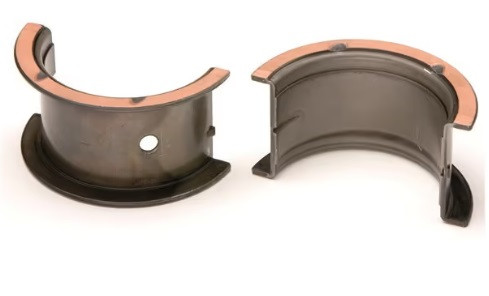

Standard ACL crankshaft bearings (repair rib: 0.001") for Audi and Volkswagen (EA88 Gen 3)
Reference:
ACL-5M5585HX-STD
Supplier Ref.:
5M5585HX-STD
Standard ACL crankshaft bearings (repair rib: 0.001") for Audi and Volkswagen (EA88 Gen 3)
ACL Trimetal bearings (hardened steel + copper + nickel) are designed for racing use. They reduce friction, improve operating temperatures and optimise oiling.
The ACL-5M5585HX-STD model is specially designed for Audi and Volkswagen engines, offering perfect tolerance for precise connecting rod adjustment.
These bearings are 0.001’ ( 0. 025 mm) thinner, allowing greater operating clearance !
Specifications :
Supplier reference: ACL-5M5585HX-STD
Tolerance: Standard size (STD) / finer dimension of 0.001" / 0.025 mm
Material: Tri-metal alloy (copper, lead, tin)
Recommended use: Motorsport, competition, engine preparation
Advantages : Increased abrasion resistance, optimum heat dissipation, precise fit
Dimensions:
Maximum overall length: 15.5mm
Maximum axle diameter: 51.978mm
Maximum tunnel size: 57.019mm
Max vertical oil clearance: 0.066mm
Max wall to crown: 2.505mm
Minimum axle size: 51.958mm
Minimum tunnel size: 57mm
Minimum vertical oil clearance: 0.044mm
Compatibility:
AUDI
- TFSI 1798cc 4 cyl (EA888 Gen 3)
- TFSI 1984cc 4 cyl (EA888 Gen 3) - VW Golf R, Gti (Mk7)
VOLKSWAGEN
- TFSI 1984cc 4 cyl (EA888 Gen 3)
Important note
Each set of pads is sold sealed by the manufacturer to guarantee the protection, quality, and authenticity of the product. It is essential to check the references and dimensions before opening.
In order to maintain optimal reliability for all our customers, returns are only possible for products whose plastic packaging has not been opened.
