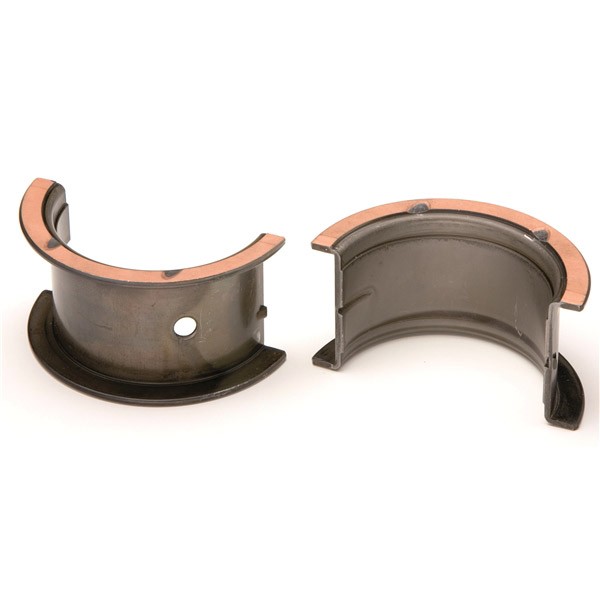

Standard ACL crankshaft bearings for Mitsubishi (4G63, 4G63T, 4G64 ) (1997)
ACLTrimetal bearings (hardened steel + copper + nickel)are designed for racing use. They reduce friction, improve operating temperatures and optimise oiling.
The ACL-5M1219H-STD model is specially designed for Mitsubishiengines (4G63, 4G63T, 4G64)offering perfect tolerance for precise connecting rod adjustment.
These bushings are offered in STD rib and also in repair rib.
Specifications :
Reference: ACL-5M1219H-STD
Tolerance: Standard size (STD)
Material: Tri-metal alloy (copper, lead, tin)
Recommended use: Motorsport, competition, engine preparation
Advantages : Increased abrasion resistance, optimum heat dissipation, precise fit
Dimensions:
Maximum overall length: 20.63mm
Maximum axle size: 57mm
Maximum tunnel size: 61.021mm
Max vertical oil clearance: 0.072mm
Max wall to crown: 1.99mm
Minimum axle size: 56.985mm
Minimum tunnel size: 61mm
Minimum vertical oil clearance: 0.02mm
Compatibility :
MITSUBISHI (1997 with thrust washer )
- 4G63 1997cc Inline4 SOHC 2v
- 4G63 1997cc Inline4 SOHC 4v
- 4G63-T 1997cc Inline4 DOHC 4v Turbo
- 4G64 2351cc Inline4 DOHC 4v
- 4G64-S4 2351cc Inline4 SOHC 4v
- 4G69 2378cc Inline4 SOHC 4v
