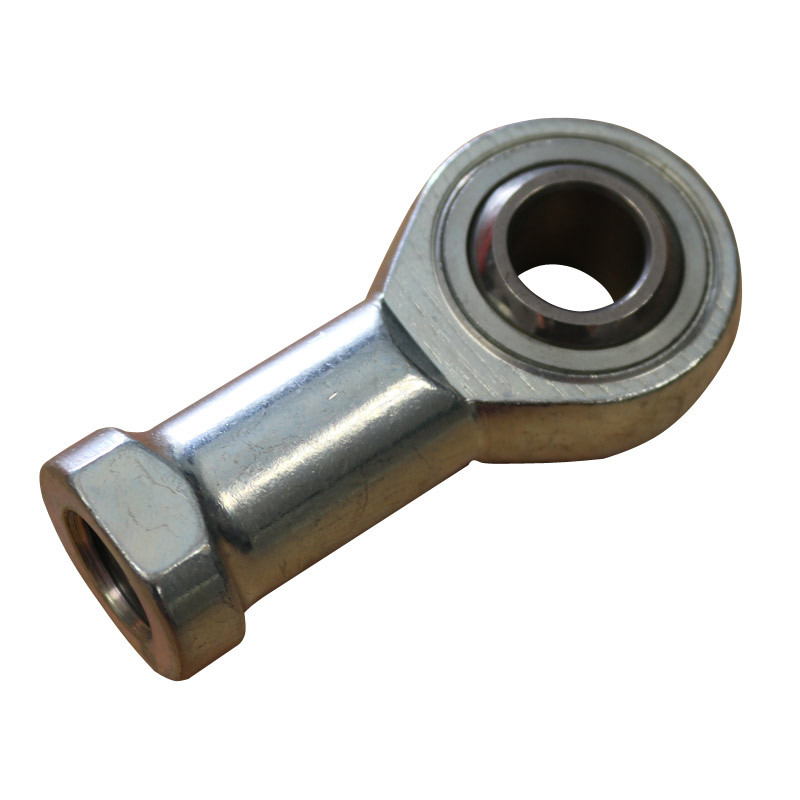

Rodobal SE Female reinforced rod end right hand thread 20mm / 1.5mm

RODOBAL
Reference: RO-RF-20SE
Supplier Ref.: RF20SE
CHF 51.10 Tax included
Pre-order
Unavailable in store (Promasens)
Within 20 days on average.
Earn 51 loyalty points

Reinforced spherical rod ends reduce movement and parasitic play in the running gear, making them an indispensable replacement for original rubber spherical rod ends and/or rubber bushes.
Maintenance-free, metric SE female Rodobal reinforced spherical rod ends are made in 3 parts:

  • a C22 steel housing
  • a bronze CuZn40Al1 ring coated with Teflon (PTFE)
  • an inner ball in 100Cr6 carbon steel, hardened and then hard-chromed.

This ball joint is a female SE with right-hand pitch.

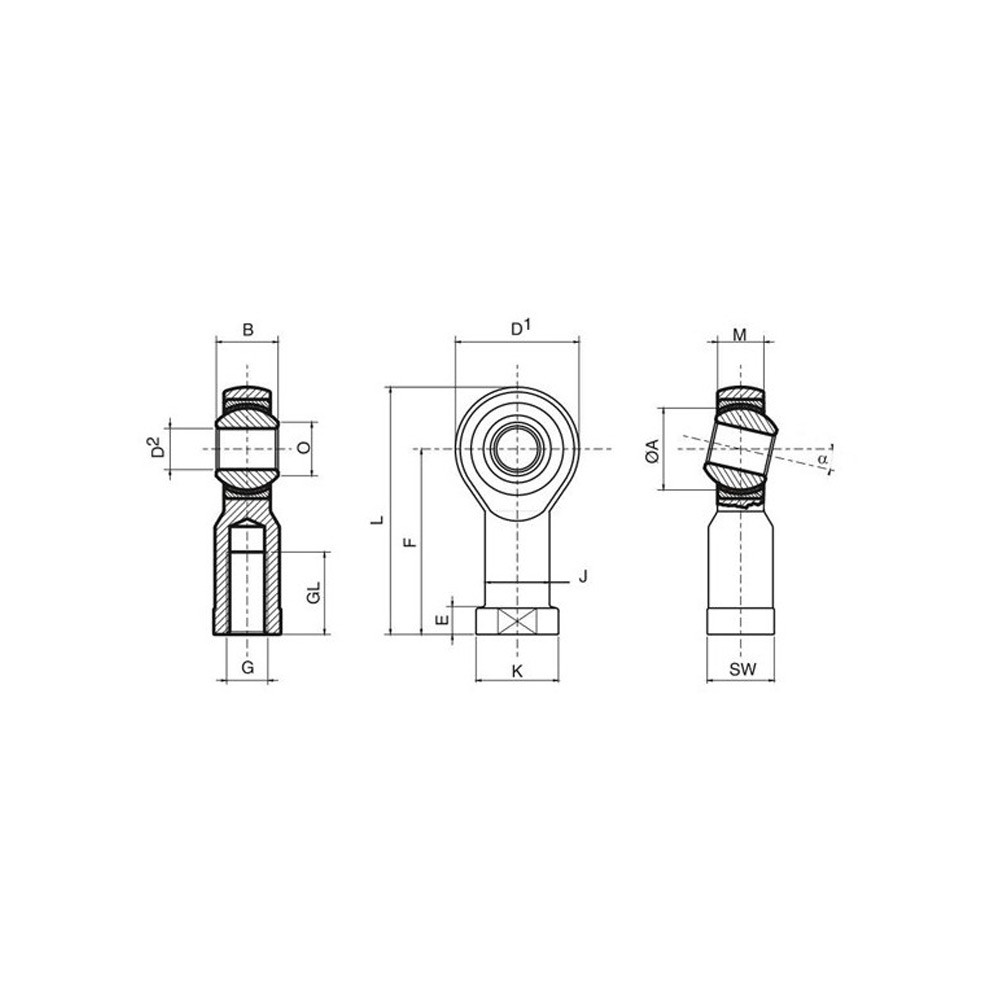

Technical specifications:

Thread: M20x1.5
Eye diameter: 20mm
Core thickness: 25mm
Rod end thickness: 18mm
Rod end outer diameter: 50mm
Total length: 102mm
Thread length: 33mm
Max. radial load: 4950DaN
Rod end angle: 32°

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
