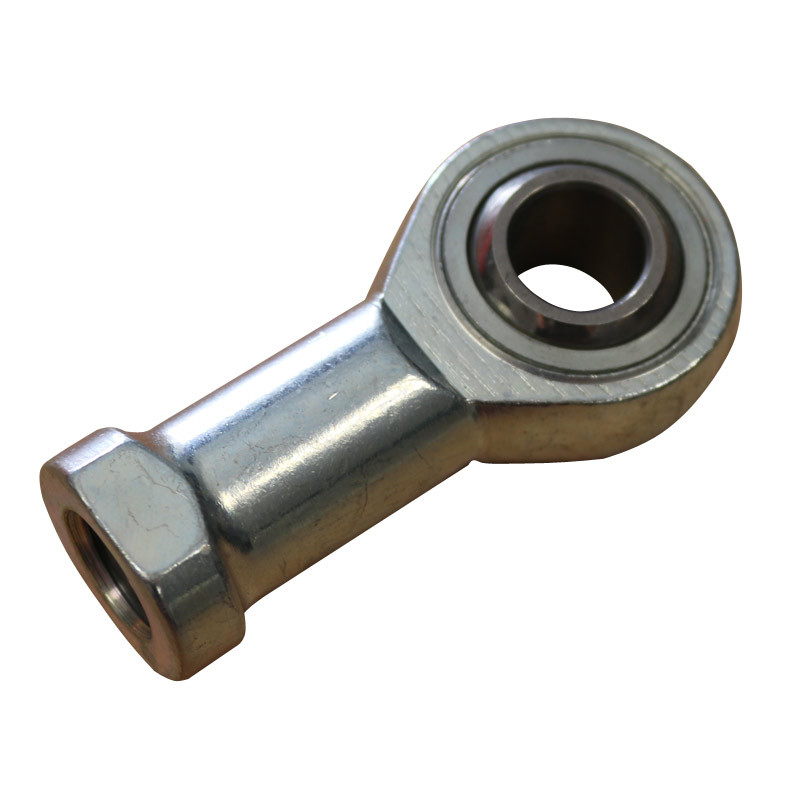

Reinforced Ball seal Rodobal SE Female Pitch to Left 14mm / 2mm - RO-RFL-14SE - RFL14SE - 3661768316108

Rodobal SE Female reinforced rod end left-hand thread 14mm / 2mm

Reference: RO-RFL-14SE

Supplier Ref.: RFL14SE

Learn more

CHF 31.50 Tax included

CHF 31.50 (tax incl.)

Earn 31 loyalty points

Rod ends reduce movement and play in the running gear. The ball joint or rod end replaces the original rubber rod ends and/or rubber bushes.
Standard” SE type rod ends and bearings are used in areas where there is little stress (gearbox linkage, for example).

This maintenance-free, metric SE female Rodobal reinforced rod end with left-hand thread is made in 3 parts:

a C22 steel body
a bronze CuZn40Al1 ring coated with Teflon (PTFE)
an inner ball in 100Cr6 steel, hardened and then hard-chromed.

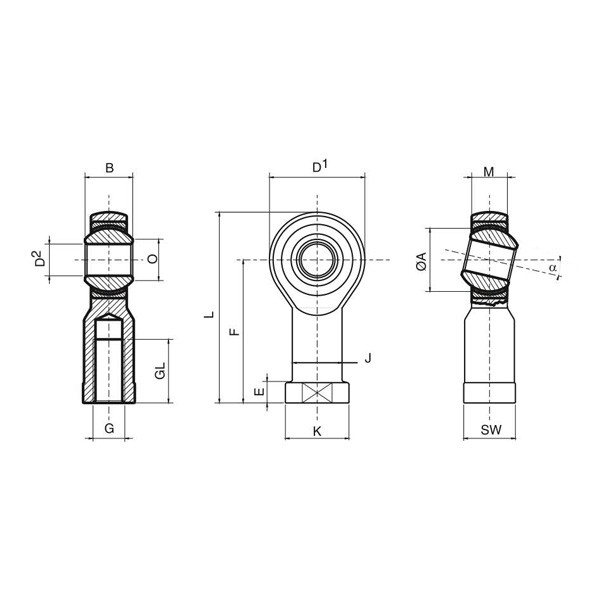

Features :

Thread: M14x2
Eye diameter: 14mm
Core thickness: 19mm
Rod end thickness: 13.5mm
Rod end outer diameter: 36mm
Total length: 78mm
Thread length: 36mm
Max. radial load: 2450DaN
Rod end angle: 15
Thread: left-hand

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
