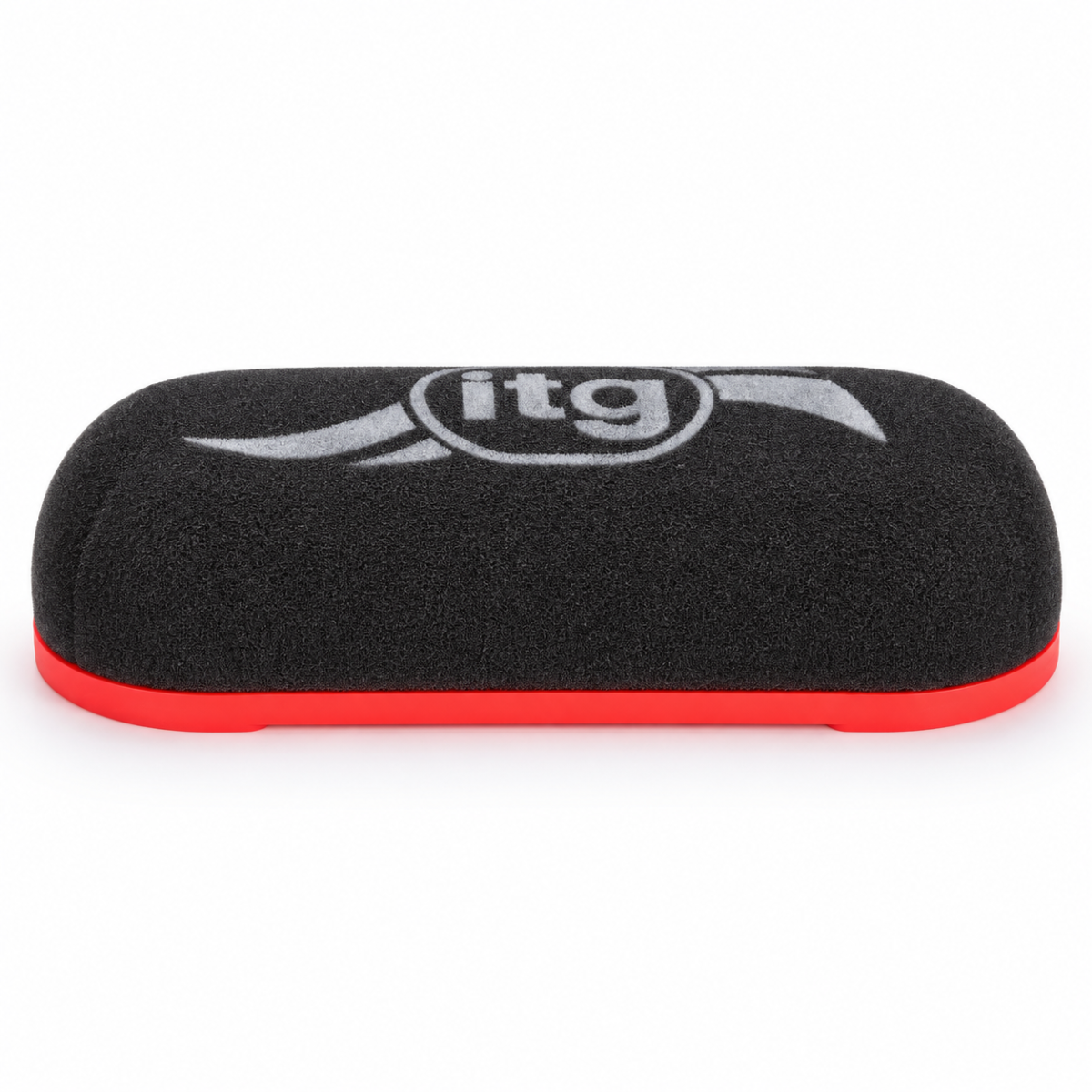

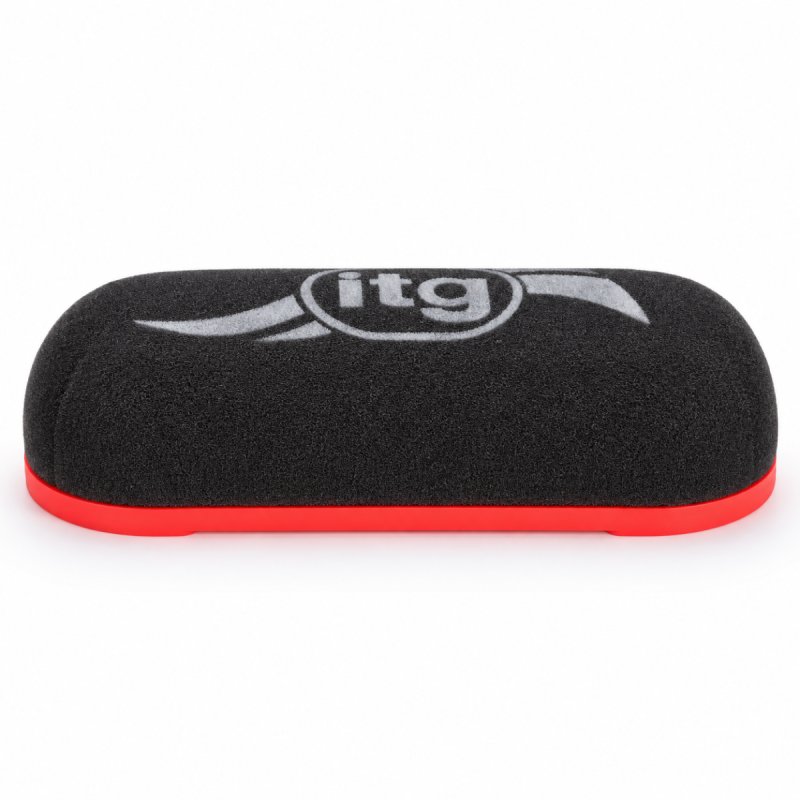

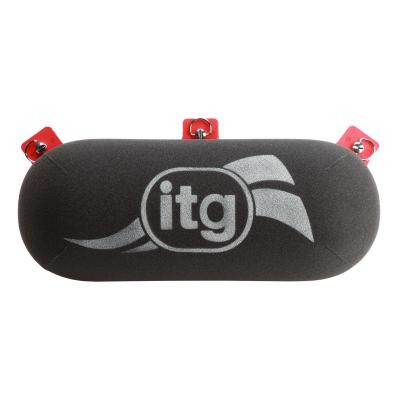

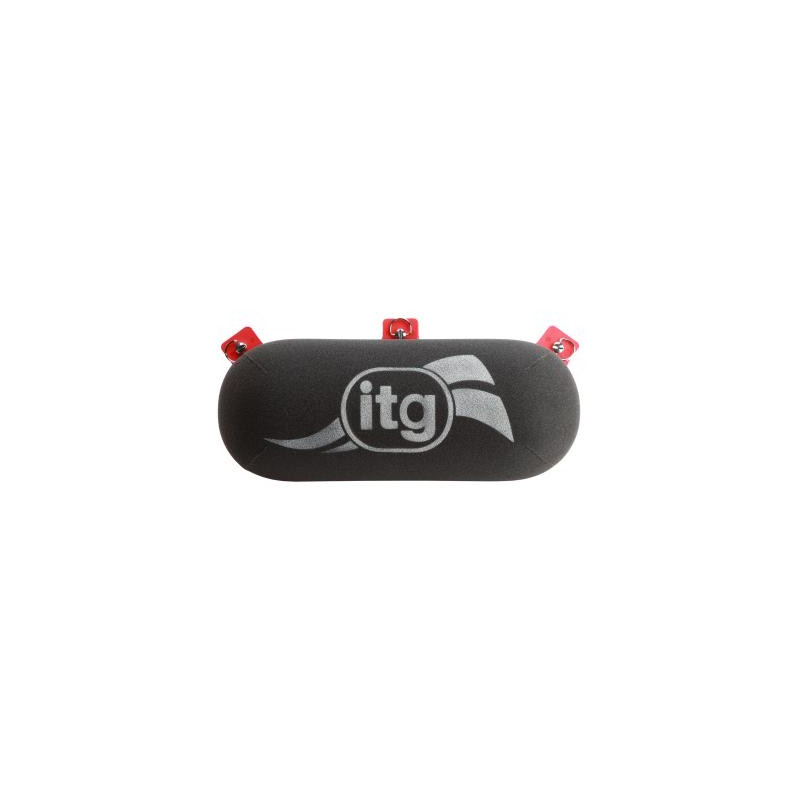

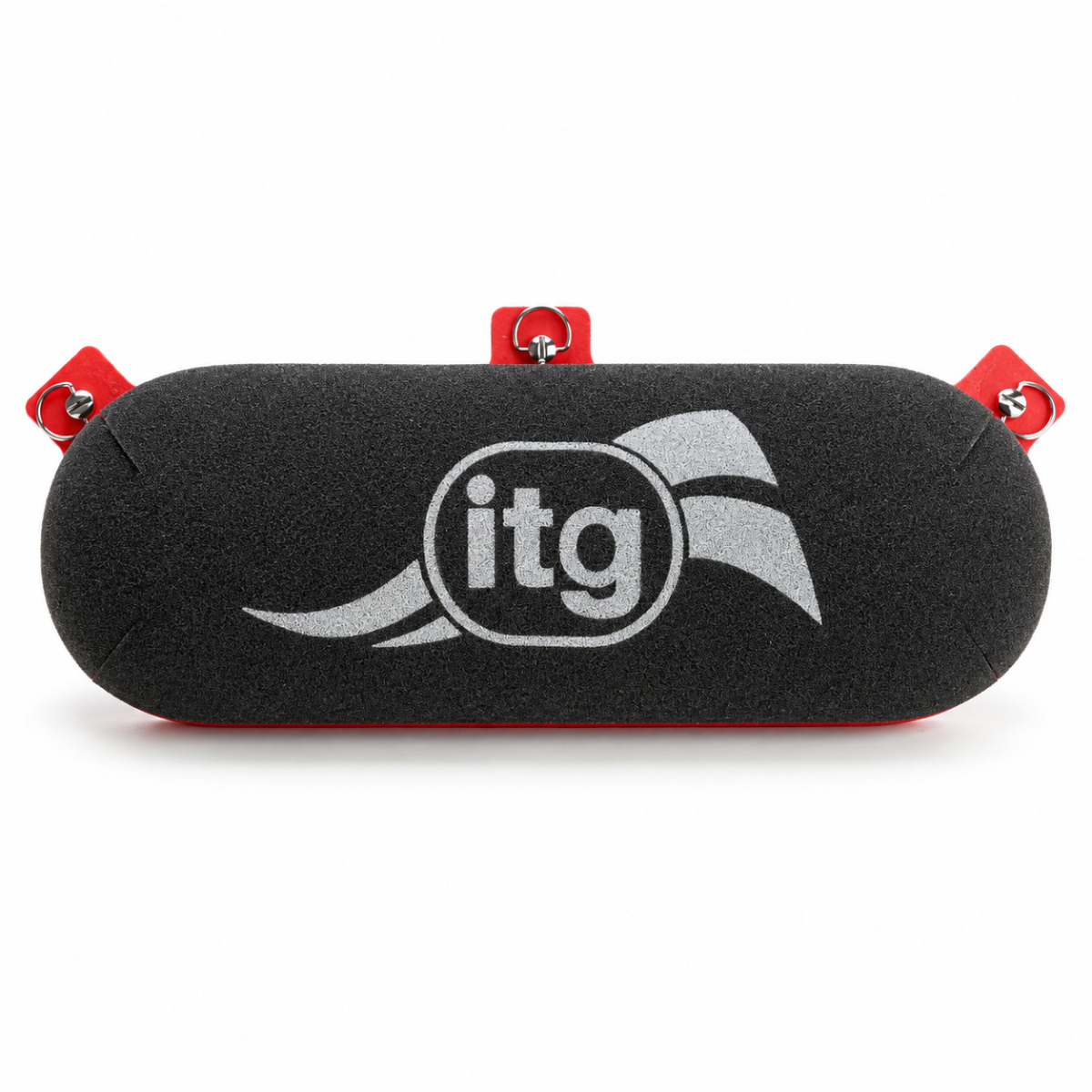

ITG Megaflow JC50 Domed Air Filter - 65 mm

The ITG Megaflow JC50 domed air filter is a foam filter designed to cover multiple intake inlets or funnels. Its 436 x 148 mm size mounts onto a compatible air cleaner baseplate from the JC50 range, to be selected based on the air intake configuration.

The JC50/S/65 version features a domed “Sausage” profile, an internal height of 65 mm, and an external height of 90 mm. The internal height corresponds to the available space beneath the filter, while the external height allows you to verify its overall dimensions within the engine compartment.

Before mounting, check the sizes of the mounting base, the mounting components, and the clearance between the intake manifolds and the inner surface of the filter. Also check the available space around the assembly and under the hood.

The filter features a red frame and a washable, reusable foam element. Maintenance requires proper cleaning and re-oiling in accordance with ITG recommendations. The filter must be oiled before use.

Technical Specifications of the ITG Megaflow JC50 Domed Air Filter

• Brand: ITG
• Range: Megaflow
• Type: Foam air filter
• Shape: domed, “Sausage” version
• Length: 436 mm
• Width: 148 mm
• Internal height: 65 mm
• External height: 90 mm
• Frame color: red
• Mounting: on a compatible base from the JC50 range
• Maintenance: washable and reusable
• Oiling: required before use
• Manufacturer part number: JC50/S/65

Key features of the ITG Megaflow JC50 domed air filter

• 436 x 148 mm size to fit multiple intake ports
• “Sausage” domed profile with an internal height of 65 mm
• Mounts on a JC50-compatible mounting base
• Washable and reusable foam filter element
