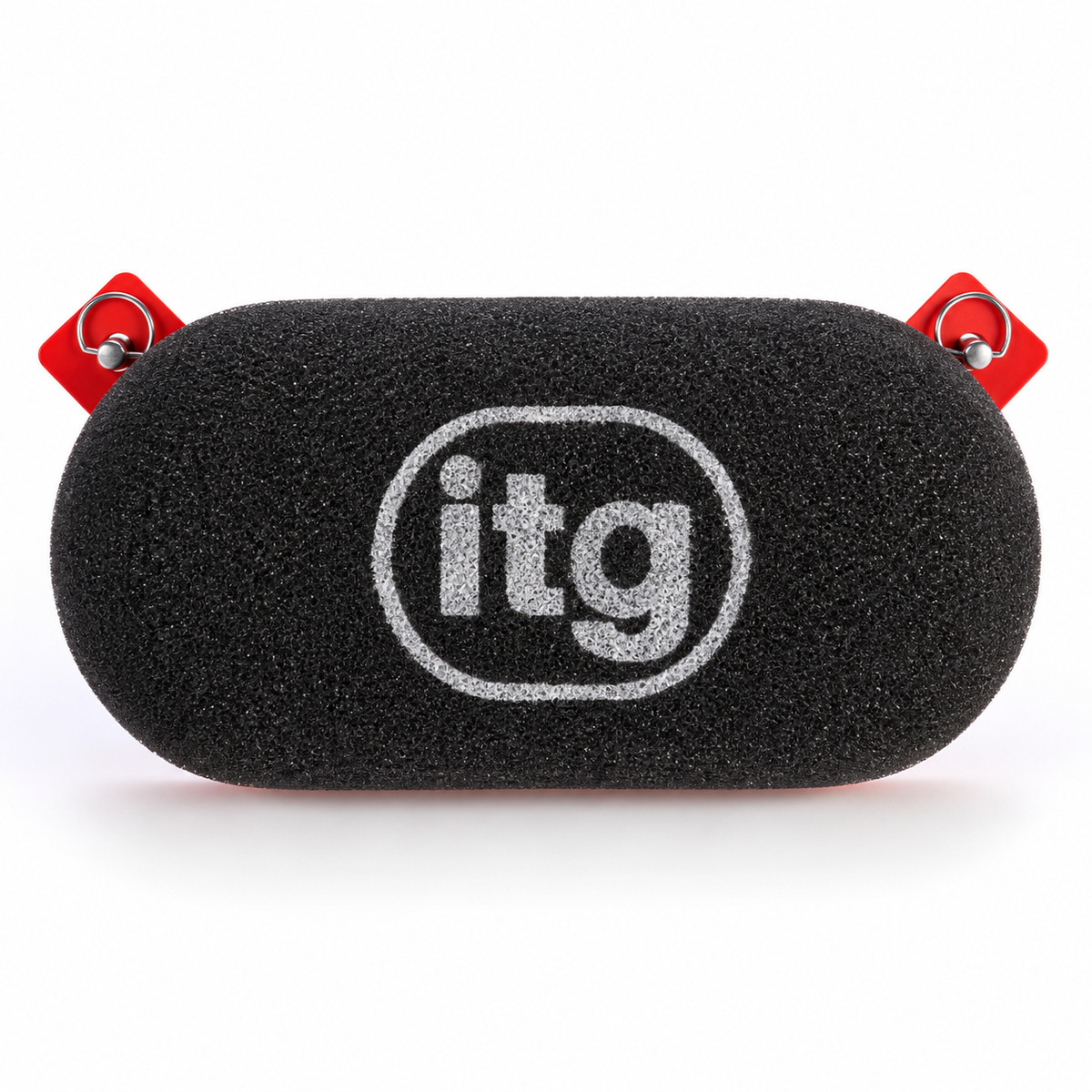

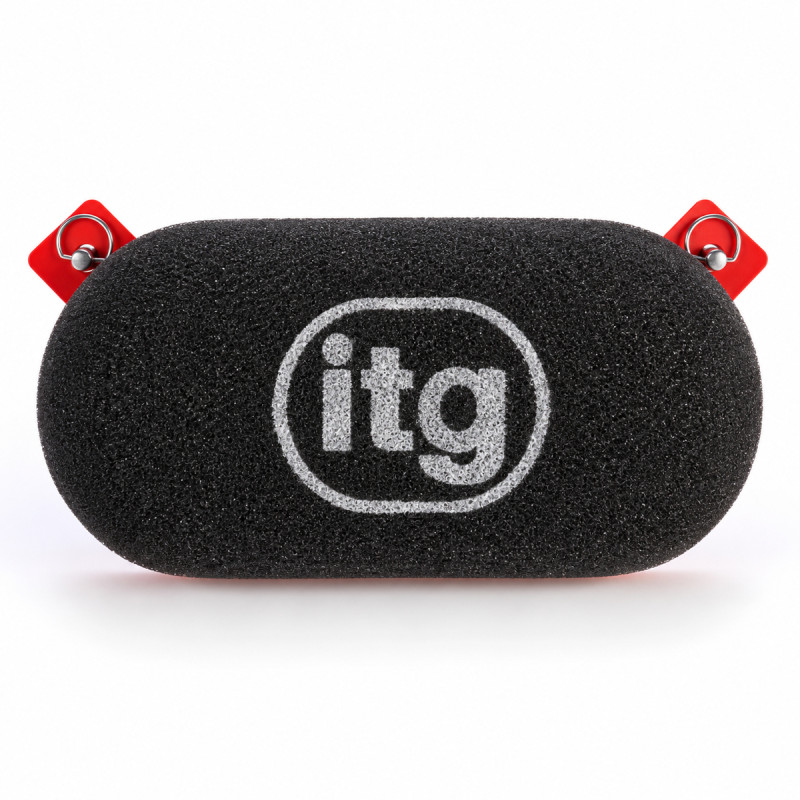

ITG Megaflow JC30 Domed Air Filter - 65 mm

The ITG Megaflow JC30 domed air filter mounts onto a compatible baseplate from the JC30 range. Its 298 x 149 mm dimensions allow it to cover the air intake or intake horns, depending on the mounting configuration.

The JC30/S/65 version features a domed “Sausage” profile, with an internal height of 65 mm and an external height of 90 mm. These sizes must be taken into account to verify clearance at the intake and the available space in the engine compartment.

Before installation, check the space between the intake horns or trumpets and the inner surface of the filter. Select a JC30 mounting base suitable for the intake and its mounting points.

The foam filter element, held in place by a red frame, is washable and reusable. Maintenance involves cleaning and re-oiling with appropriate products. Check the oiling before first use and follow ITG’s recommendations.

Technical Specifications of the ITG Megaflow JC30 Domed Air Filter

• Brand: ITG
• Range: Megaflow
• Type: foam air filter
• Shape: domed, “Sausage” version
• Length: 298 mm
• Width: 149 mm
• External height: 90 mm
• Internal height: 65 mm
• Frame color: red
• Mounting: on a compatible base from the JC30 range
• Maintenance: washable and reusable
• Oiling: required before use
• Manufacturer part number: JC30/S/65

Key features of the ITG Megaflow JC30 domed air filter

• “Sausage” domed profile
• Sizes: 298 x 149 mm
• Internal height: 65 mm
• Mounting on a JC30-compatible base
• Washable and reusable foam filter element
