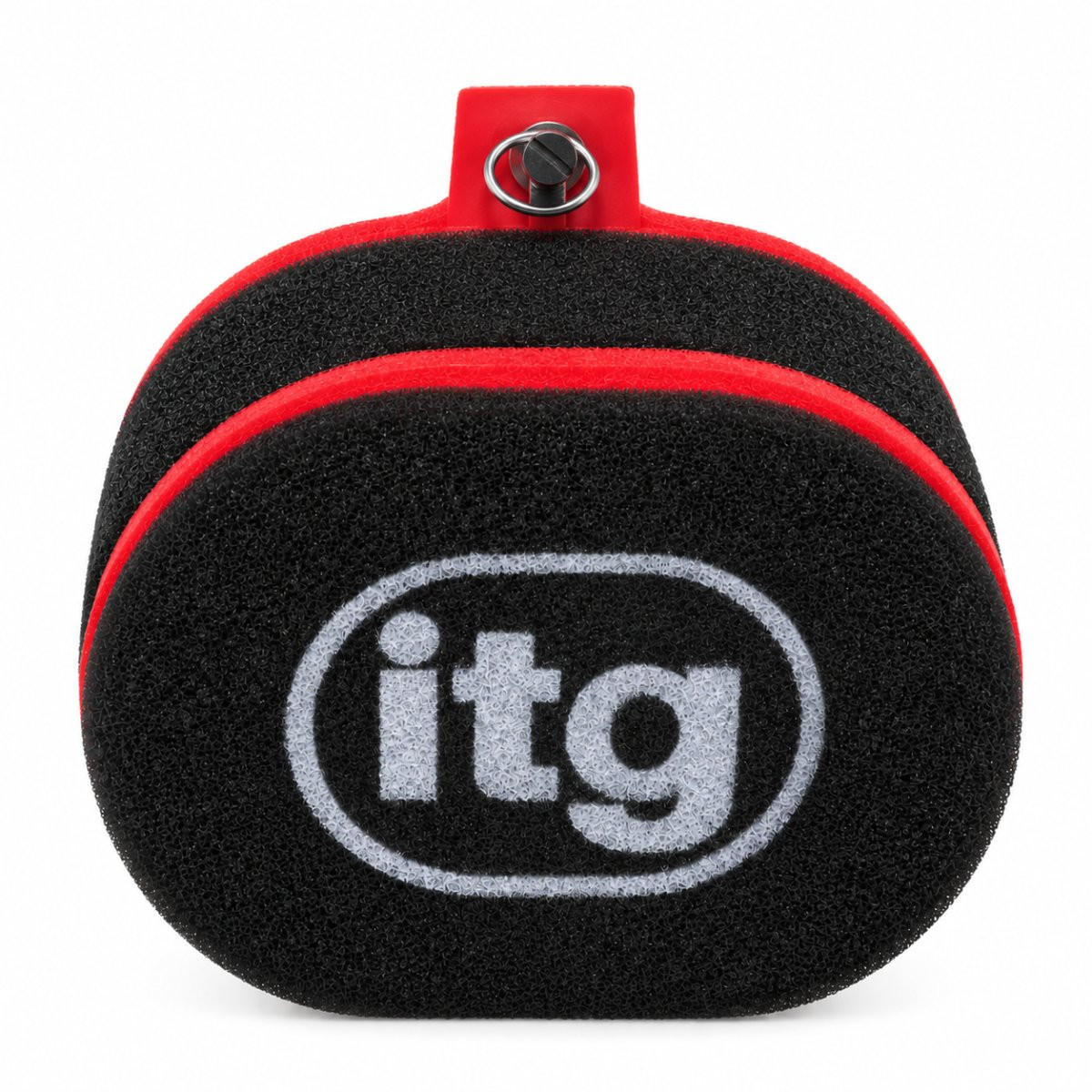

The ITG Megaflow JC20 air filter is a primary filter designed for small, single-carburetor setups. This standard straight-sided version has an internal height of 40 mm and mounts to an ITG JC20 series base plate compatible with the carburetor being used.
The JC20/40 measures 192 mm long by 148 mm wide. Its internal height of 40 mm corresponds to the available clearance inside the filter, particularly for the intake horn or trumpet. Its external height of 65 mm helps maintain a compact footprint in the engine compartment.
The Megaflow system allows the filter to be paired with a base from the same JC20 series, which should be selected based on the carburetor and mounting configuration. The available internal height must also be taken into account to verify clearance for the intake horn.
Technical Specifications of the ITG Megaflow JC20 Air Filter
- Manufacturer Part Number: JC20/40
- Range: Megaflow
- Series: JC20
- Type: Primary air filter
- Shape: straight sides
- Application: small single carburetor

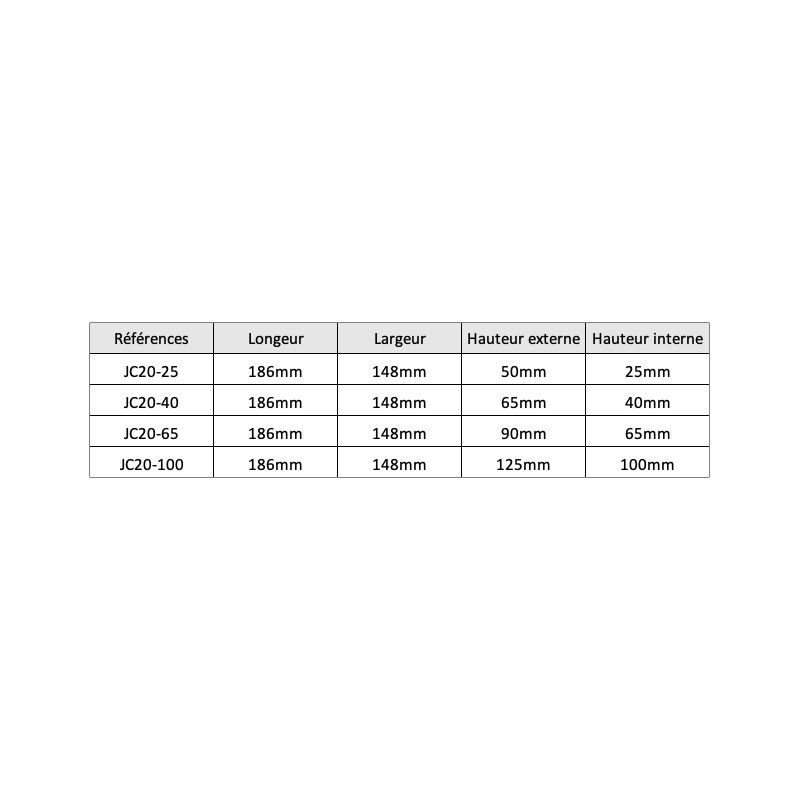

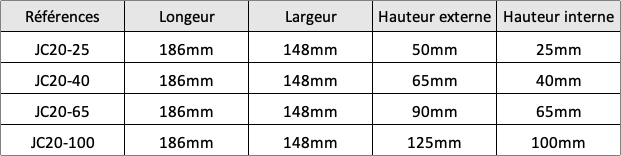

- Length: 192 mm
- Width: 148 mm
- External height: 65 mm
- Internal height: 40 mm
- Compatible base: ITG JC20 series
Key Features of the ITG Megaflow JC20 Air Filter
- Compact JC20 design intended for small, single-barrel carburetors
- 40 mm internal height suitable for mountings with limited space
- External height limited to 65 mm
- Internal and external sizes specified to verify fit before mounting
- Compatible with ITG JC20 series mounting bases
