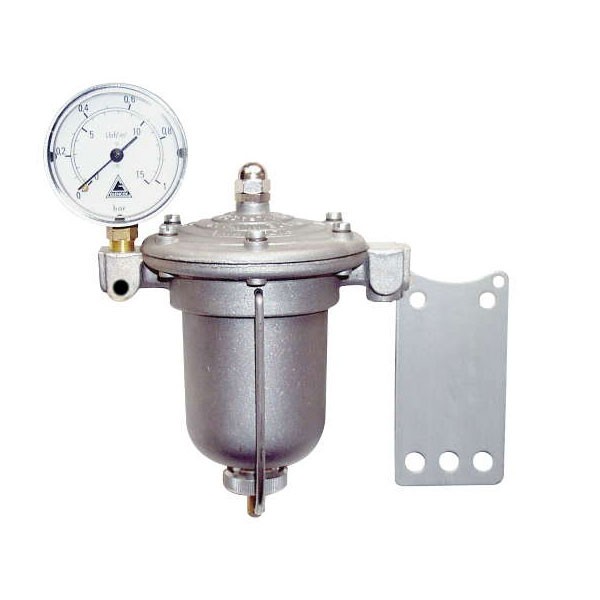

KING regulators are used to regulate fuel pressure for carburetor engines.
They are adjustable and equipped with a filter to prevent fuel starvation and carburetor flooding.
This regulator comes complete with pressure gauge, paper filter, bracket, 8 mm smooth fittings, and bolts for easy installation.
This regulator model is a version with smooth male outlets (8 mm diameter), but it is also available with 1/8 x 27 NPTF female outlets (see ref. M-KING-NPT).

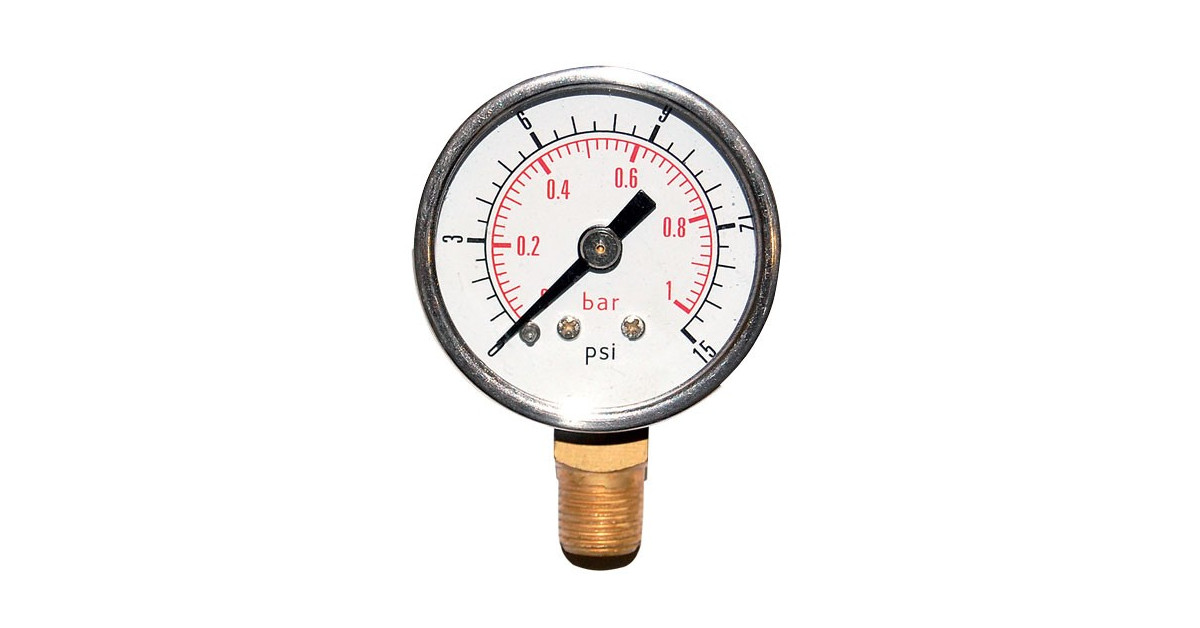

The pressure gauge is calibrated up to a maximum of 1 bar and is mounted using Teflon plumbing.
Note: For carburetor applications only.
Not suitable for high-pressure pumps/injection systems.
Technical data:
Diameter: 85mm
Height: 130mm
Width: 116mm
Weight: 370g
Filtration: 10 microns
Connections: 8mm
Max. pressure: 1 bar
Pressure range: 1.5-7psi
Compatible with E85 fuels
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
