034 Motorsport machined aluminium tail gasket for 2.0T TSI

034 Motorsport machined aluminium tail gasket for 2.0T TSI

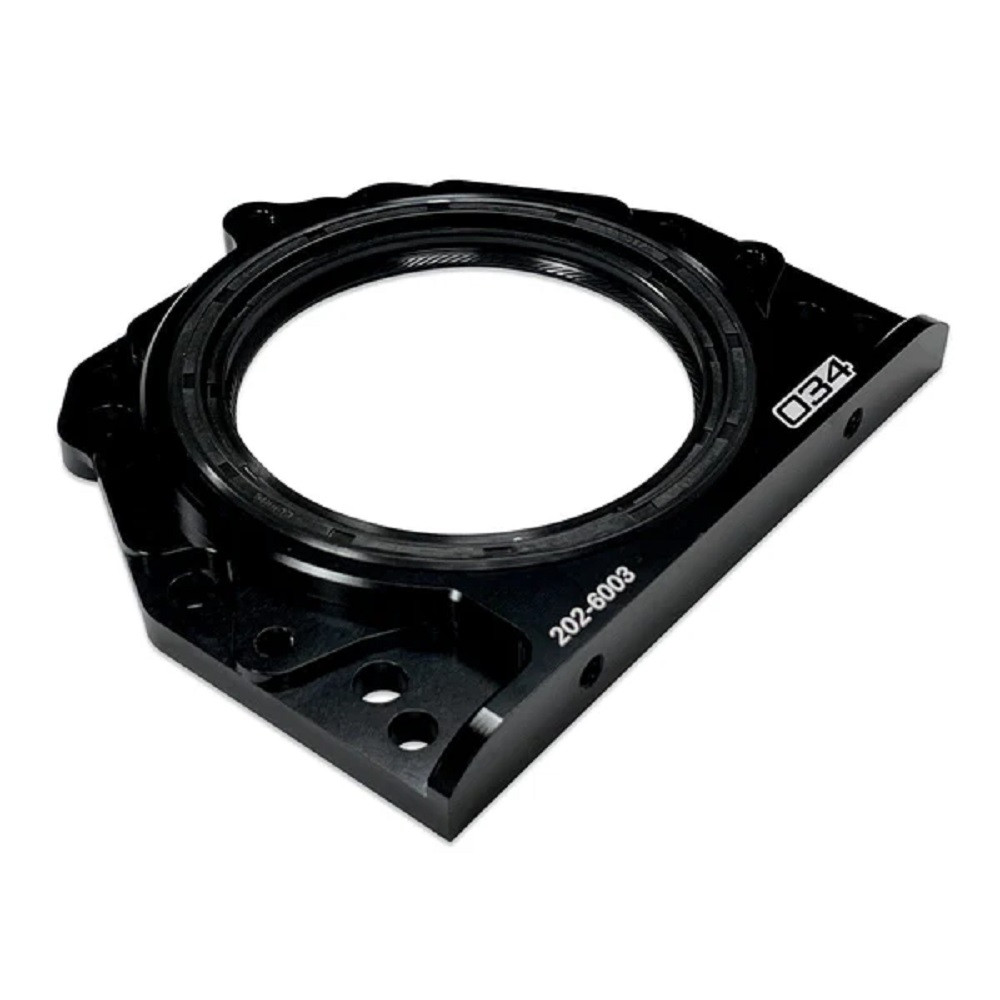

The 034Motorsport aluminium rear main seal is designed to replace the often failing original stamped steel rear main seal on 1.8T or 2.0T FSI engines. This rear main seal is precision CNC machined from 6061-T6 aluminium and incorporates an original Elring Viton seal with an integral tension spring, ensuring optimum sealing with the crankshaft.

The seal has been rigorously tested and has proved durable even under conditions of high heat and intense wear. It is an excellent upgrade to replace a faulty or leaking tail main seal .

Features:

- CNC machined from premium 6061-T6 aluminium

- Triangulated truss ribs for increased strength and rigidity

- Putty groove for a good seal and to prevent compression

- Machined locating pins for precise positioning and to reduce movement

- High-gloss black anodising

- Original Elring seal with integral spring force

- Installation tool included to facilitate installation and protect the gasket from damage

- The seal is pre-installed in a stainless steel housing,

- New hardware (grade 8.8)

Kit contains :

- Brass main tail gasket bracket

- Elring tail main seal

- Mounting hardware
