Blackline limited slip differential - BMW 188L Axle E39 - E46 - E53 - E60 - E81 - E82 - E83 - E85 - E87 - E90 - E92 - F25

Reference: BR-AB-B04

Supplier Ref.: HLF023

Learn more

CHF 710.60 Tax included

CHF 748.00 -5% Discount

Promotion ends in: 22 H 56 M 12 S

In stock

Unavailable in store (Promasens)

Shipped on 2026-10-12 from our warehouse

CHF 748.00 -5%

CHF 710.60 (tax incl.)

Earn 710 loyalty points (that is CHF 25.00 in vouchers)

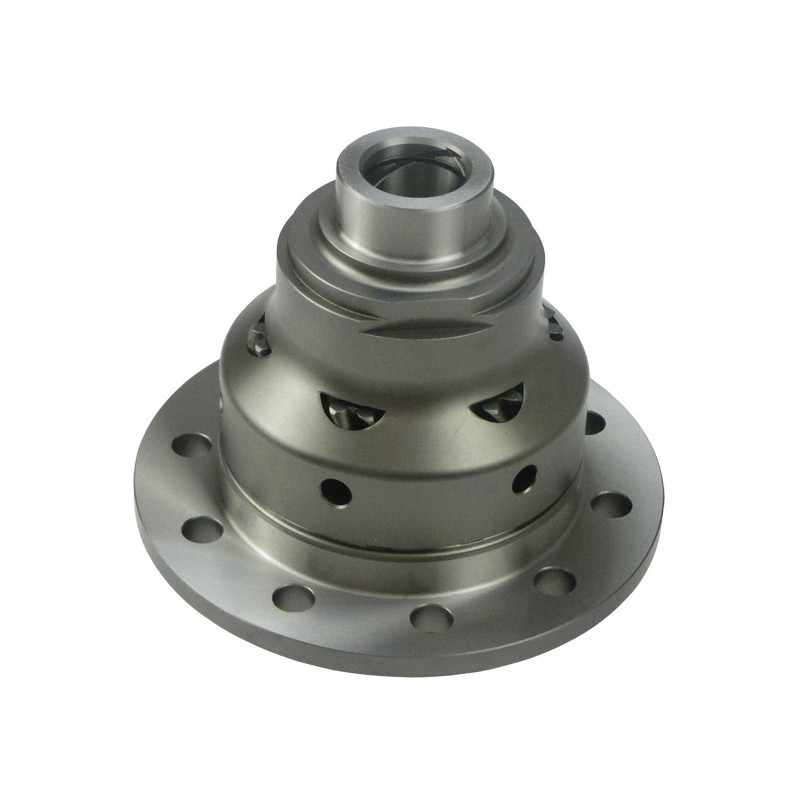

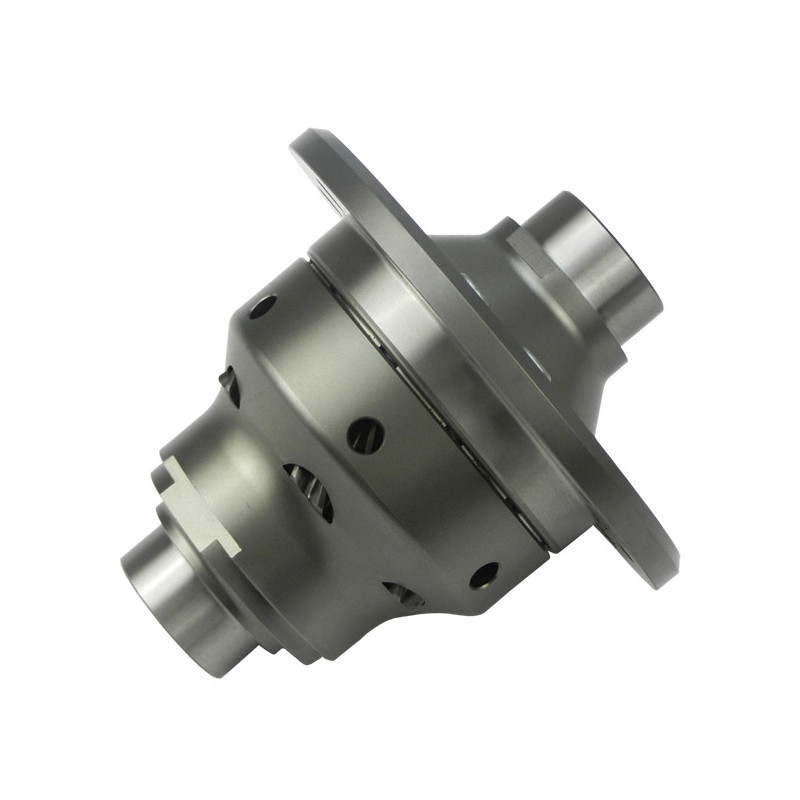

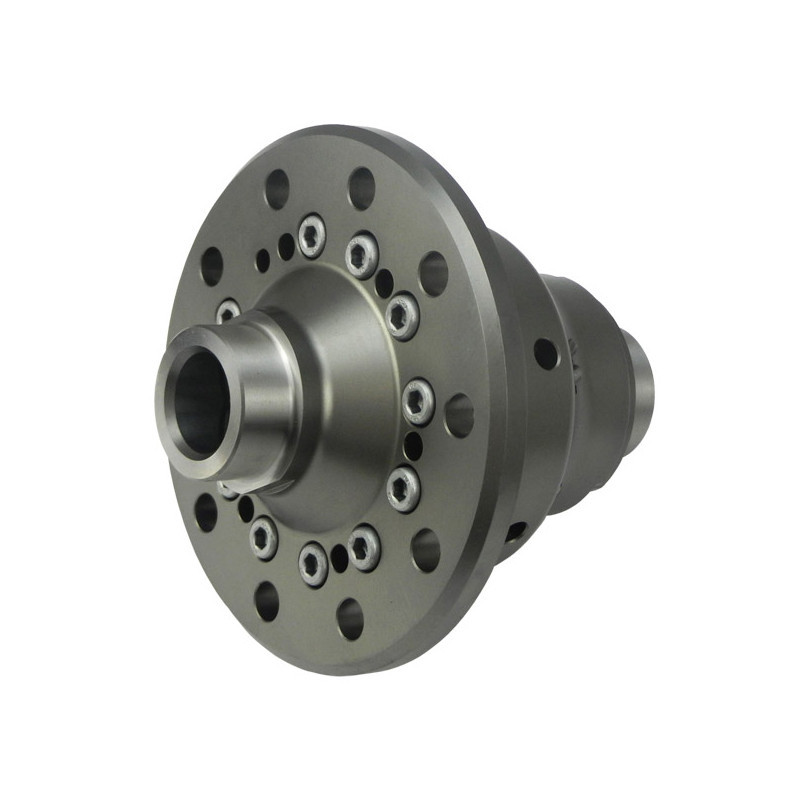

The Blackline limited slip differential for BMW E39, E46, E53, E60, E81, E82, E83, E85, E87, E90, E92, and X3 F25 models with the 188L differential—also known as an LSD (limited slip differential)—improves traction by distributing torque between the two-wheel drive drive wheels based on available grip.

Its helical gear design allows the limited slip differential to transmit more torque to the wheel with the best traction. As torque increases, the gears exert pressure against the differential housing and generate the internal friction necessary for this torque distribution. The system can thus handle a significant difference in drive force between the two wheels, particularly during heavy acceleration out of a turn or when traction is limited.

Under light loads, the helical limited slip differential maintains smooth, progressive, and quiet operation. The wheels can continue to rotate at different speeds when necessary, particularly when cornering. This feature improves traction during spirited driving while maintaining handling suitable for on-road use.

The Blackline limited slip differential uses a parallel-shaft helical gear architecture optimized to distribute forces. Its 5:1 torque split means that when one wheel loses traction, the wheel with the most traction can receive up to five times the torque transmitted to the spinning wheel.

As with any helical-gear limited slip differential, a minimum amount of resistance must remain on the wheel with the least traction to allow torque transfer. Its effectiveness is therefore optimal when both wheels maintain a minimum level of traction. This technology also works particularly well in conjunction with modern ABS systems.

The Blackline HLF023 limited slip differential is designed for many BMW models equipped with the 188L differential. Compatibility varies depending on the chassis, engine, transmission type, and—for certain versions—the part number or final drive ratio. The critical dimension to check before mounting is the ring gear offset of 96.5 mm. Its housing and gears are made of high-resistance 8620 steel.

Technical Specifications of the Blackline limited slip differential for BMWs with the 188L Differential

Manufacturer Part Number: HLF023
Quaife application match: QDF13N
Type: Helical-gear limited slip differential
BMW E39 compatibility—mechanical transmission: 520d, 525i, 528i, 530i, 535i, Alpina B10 3.2 with a final drive ratio of 2.93:1, Alpina B10 3.3
Compatibility with BMW E39 - automatic gearbox: 525d, 535i
Compatibility with BMW E46 - mechanical transmission: 320d with stock final drive ratio of 2.79, 323i, 328i, 330i, 330xd
Compatibility with BMW E46 - automatic gearbox: 320d, 328i, 330xd
Compatibility with BMW X5 E53: X5 3.0d with mechanical transmission - rear differential
BMW E60 compatibility - mechanical transmission: 520d, 530i
BMW E60 compatibility - automatic gearbox: 525d from 03/2007
Compatibility with BMW E81 - mechanical transmission: 118d
Compatibility with BMW E82 - mechanical transmission: 120d
Compatibility with BMW X3 E83: X3 3.0d with mechanical transmission - rear differential
BMW Z4 E85 compatibility - mechanical transmission: Z4 2.2i, Z4 3.0i
Compatibility with BMW Z4 E85 - SMG transmission: Z4 3.0i
BMW E87 compatibility - mechanical transmission: 116d, 120d
Compatibility with BMW E87 - automatic gearbox: 120d up to 01/2007
BMW E90 Compatibility - Mechanical Transmission: 318d, 320d with rear axle part no. 7566218 or 7566274, 325d, 330d, 325i with rear axle part no. 7566172
BMW E90 Compatibility - Automatic Gearbox: 318d, 320d, 325d, 330d, 330dx
BMW E92 compatibility - mechanical transmission: 320d, 325d, 330d, 325i with rear axle part no. 7519942
Compatible with BMW E92 - automatic gearbox: 320d, 325d, 330d, 330dx
BMW X3 F25 compatibility: X3 sDrive20d - rear differential
Differential type: BMW 188L

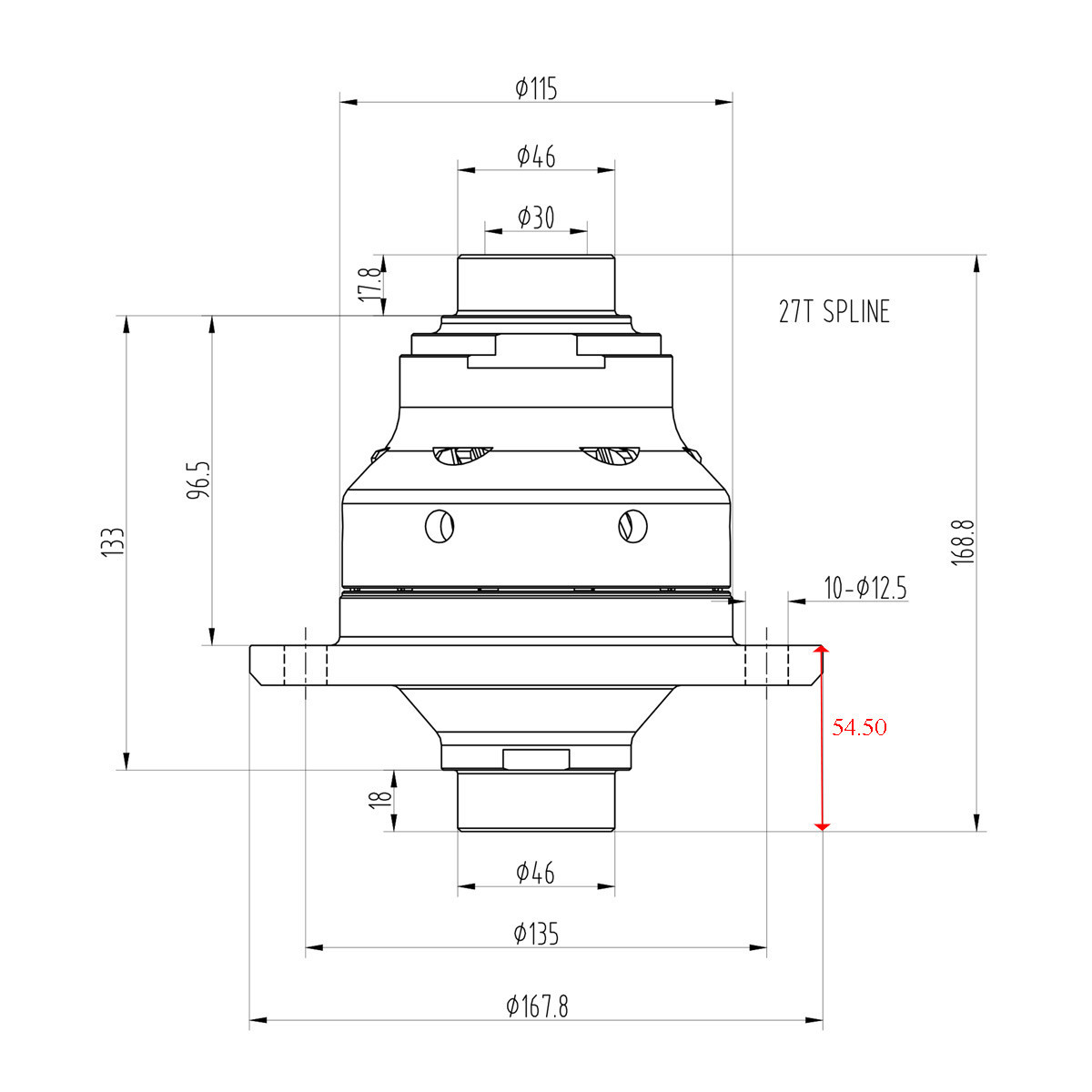

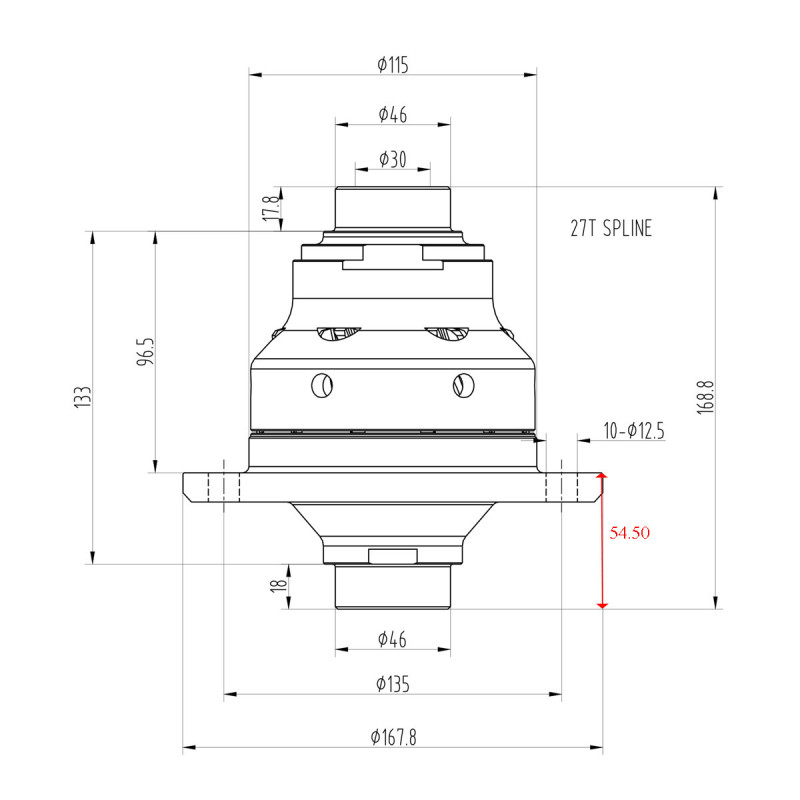

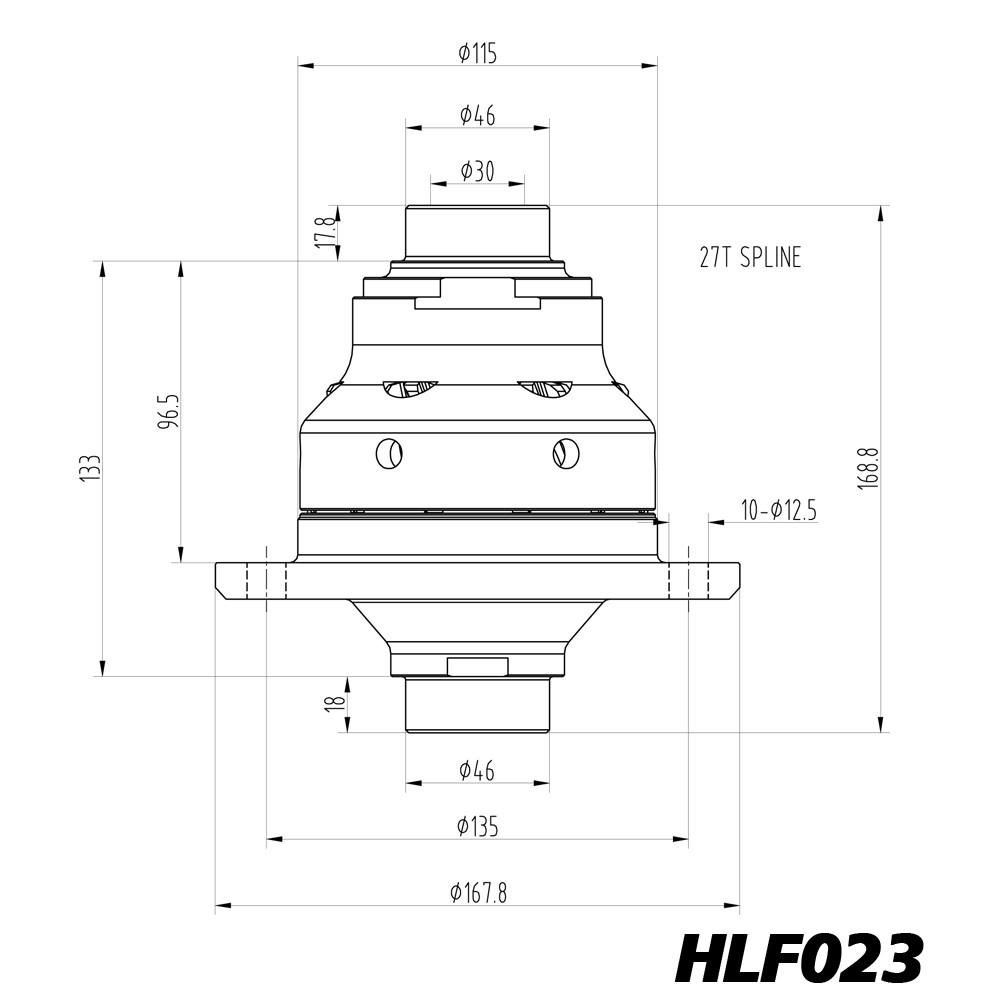

Crown gear offset: 96.5 mm
Torque split ratio: 5:1
Housing and gear material: High-resistance 8620 steel
Mounting: Direct replacement for the original differential on compatible models

Key features of the Blackline limited slip differential for BMW with 188L differential

Torque split between the wheels based on available traction.
Delivers more torque to the wheel with the best traction.
Immediate and progressive reaction to changes in traction.
Smooth, progressive, and quiet operation.
No friction discs for reduced maintenance requirements.
Power delivery that is easily controllable, especially during spirited driving and drifting.
Housing and gears made of high-resistance 8620 steel.
Direct mounting for the original differential.

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
