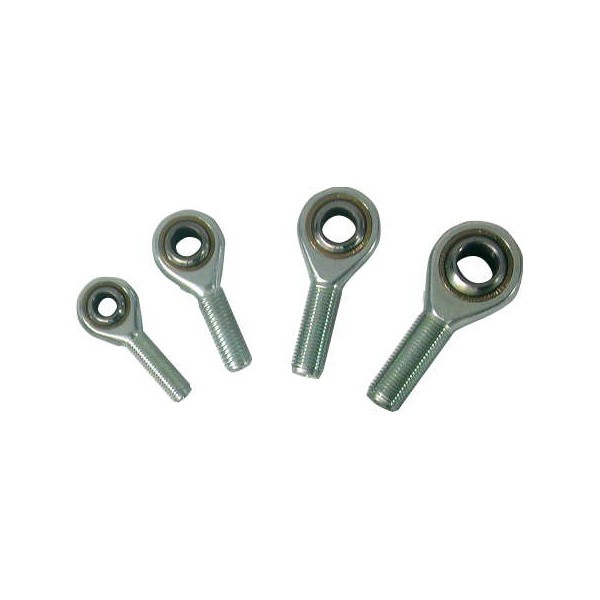

Rod ends reduce movement and play in the running gear. The ball joint or rod end replaces the original rubber rod ends and/or rubber bushes.
Standard” SE type rod ends and bearings are used in areas where there is little stress (gearbox linkage, for example).
This maintenance-free, metric SE male Rodobal reinforced rod end with right-hand thread is made in 3 parts:
- a C22 steel body
- a bronze CuZn40Al1 ring coated with Teflon (PTFE)
- an inner ball in 100Cr6 steel, hardened and then hard-chromed.

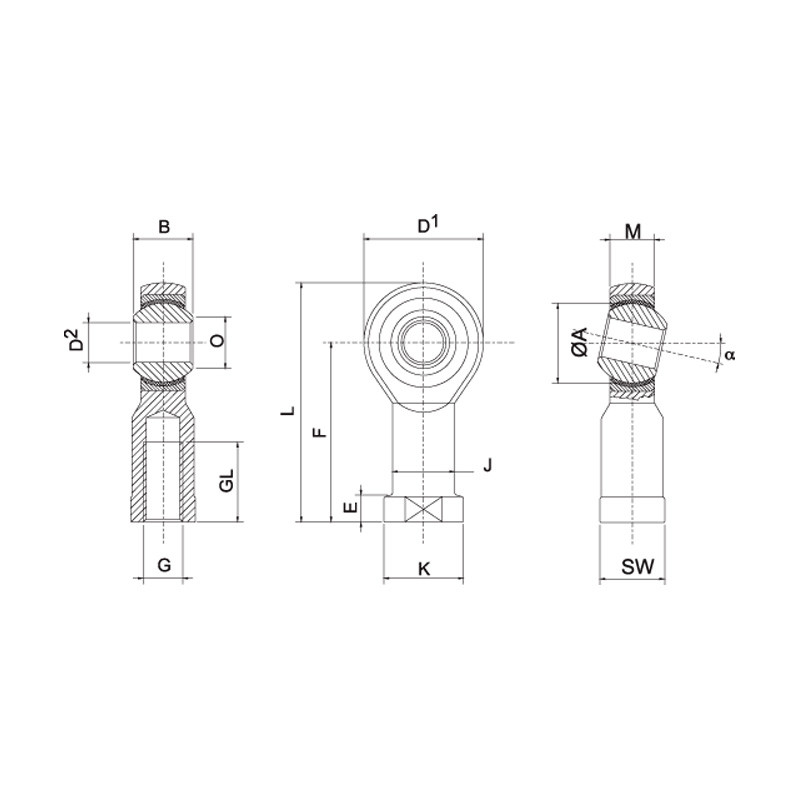

Features :
Thread: M24x2
Eye diameter: 25mm
Core thickness: 31mm
Rod end thickness: 22mm
Rod end outer diameter: 60mm
Total length: 124mm
Thread length: 57mm
Max. radial load: 6780DaN
Rod end angle: 15
Thread: right-hand
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
