Reinforced Ball seal SE Male Pitch to Left 24mm / 2mm - RO-RML-25SE - RML25SE - 3661768327920

Rodobal SE Male reinforced rod end left-hand thread 24mm / 2mm

Reference: RO-RML-25SE

Supplier Ref.: RML25SE

Learn more

CHF 77.20 Tax included

CHF 77.20 (tax incl.)

Earn 77 loyalty points

Rod ends reduce movement and play in the running gear. The ball joint or rod end replaces the original rubber rod ends and/or rubber bushes.
Reinforced' or MTE-type competition spherical bearings and rod ends are used on axles or areas subject to greater stress.

This maintenance-free, metric SE male Rodobal reinforced rod end with left-hand thread is made in 3 parts:

a C22 steel body
a bronze CuZn40Al1 ring coated with Teflon (PTFE)
an inner ball in 100Cr6 steel, hardened and then hard-chromed.

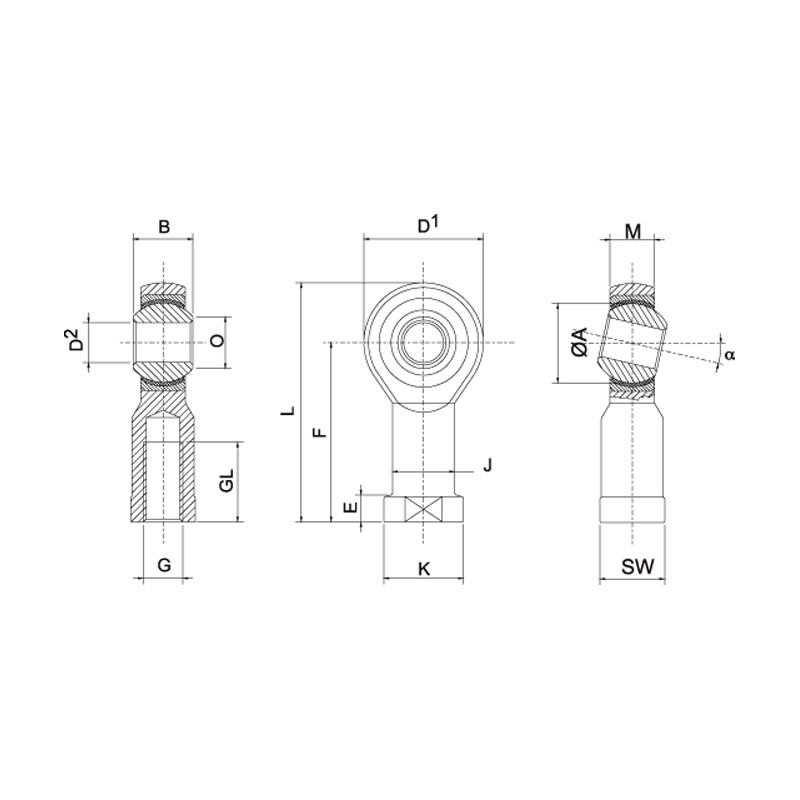

Features :

Thread: M24x2
Eye diameter: 25mm
Core thickness: 31mm
Rod end thickness: 22mm
Rod end outer diameter: 60mm
Total length: 124mm
Thread length: 57mm
Max. radial load: 6780DaN
Rod end angle: 15
Thread: left-hand

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
