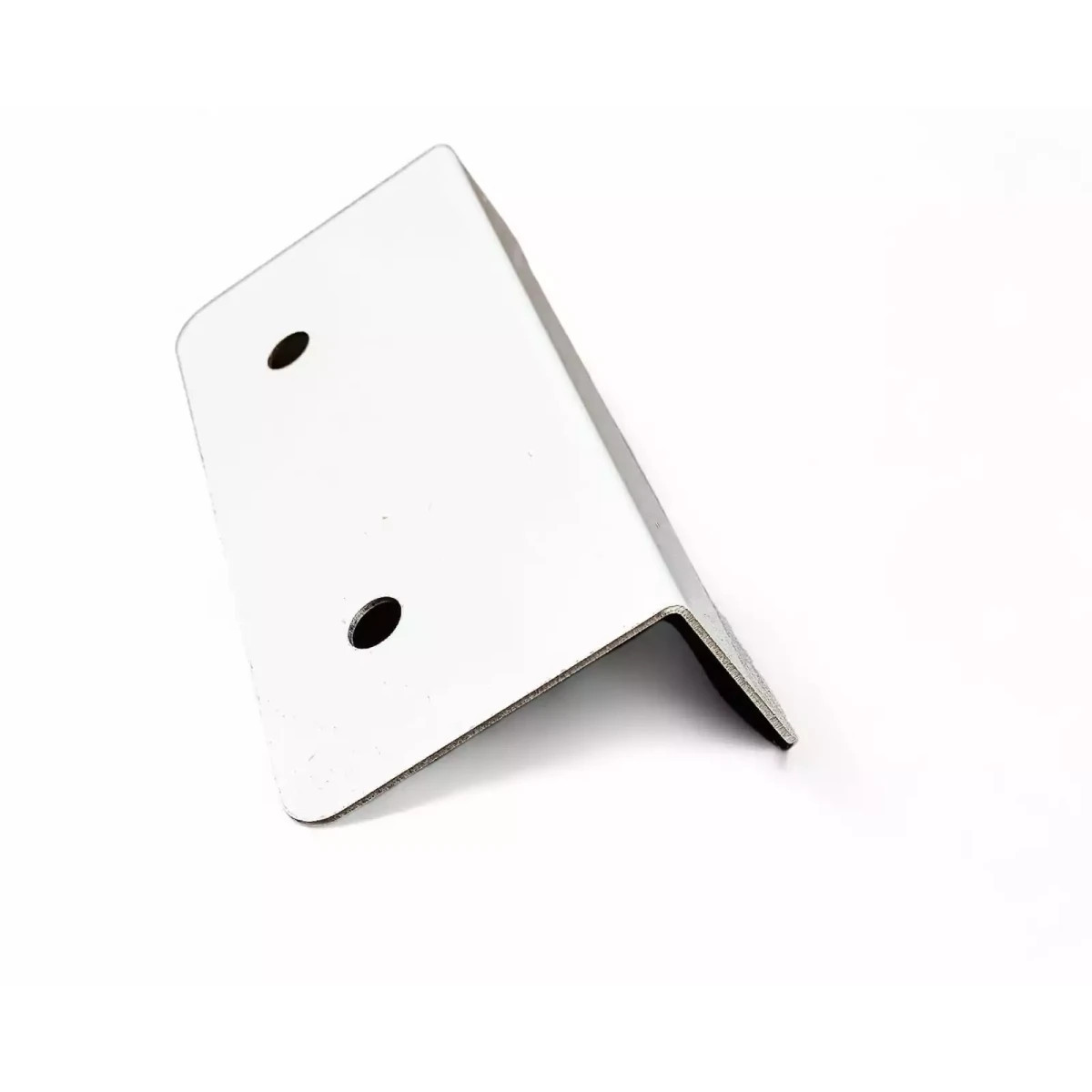

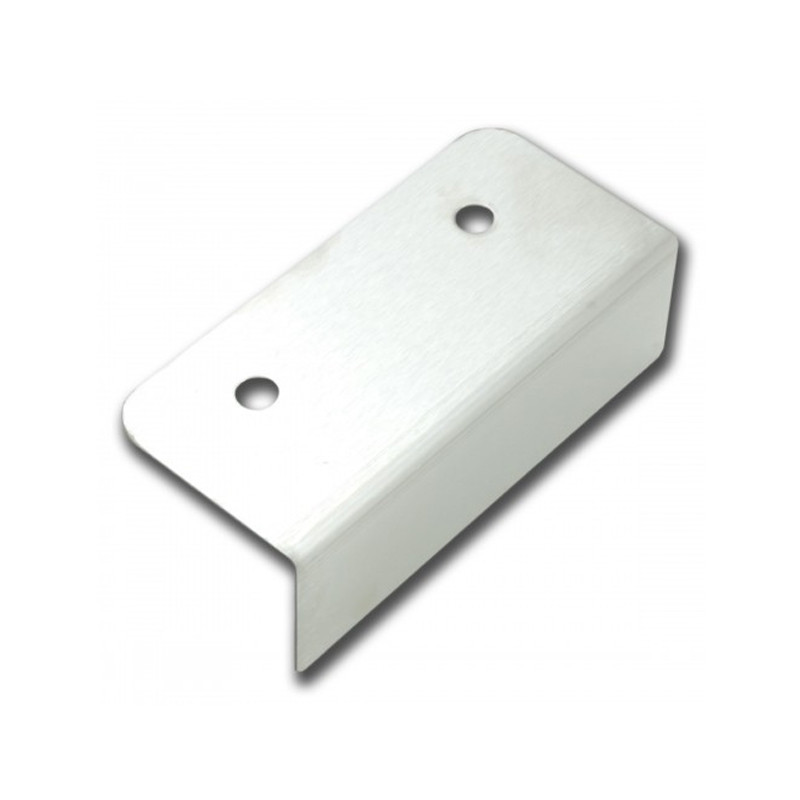

The OBP dual brake fluid reservoir bracket allows for the neat mounting of two off-board brake fluid reservoirs in the engine compartment. It is particularly well-suited for braking systems that use master cylinders supplied by separate reservoirs.
Made of 1.6 mm thick stainless steel, this OBP bracket offers a simple and robust solution for mounting two reservoirs side by side. Its universal design makes it easy to integrate into a competition, rally, or track car, or into a vehicle with a modified braking system.
The bracket features two 11 mm mounting holes for compatible OBP brake fluid reservoirs or other brands. With a width of 160 mm, it allows both reservoirs to be mounted on a single bracket, resulting in a compact and organized setup in the engine compartment.
This dual-reservoir bracket is part of the OBP reservoir bracket range, which is also available in single and triple configurations depending on the number of reservoirs to be installed.
Technical Specifications
- Brand: OBP Motorsport
- Manufacturer Part Number: OBPCB007
- Type: Double bracket for brake fluid reservoirs
- Number of reservoirs: 2
- Material: stainless steel
- Thickness: 1.6 mm
- Number of holes: 2
- Bolt hole diameter: 11 mm
- Width: 160 mm
- Top depth: 70 mm
- Rear height: 50 mm
- Application: Mounting of two offset brake fluid reservoirs
- Compatibility: OBP Motorsport brake fluid reservoirs or other compatible sizes
- Mounting: universal
- Manufactured in the United Kingdom
