Simple Brake Fluid Reservoir Bracket for OBP

Reference: OBP-CB008

Supplier Ref.: OBPCB008

Learn more

CHF 10.86 Tax included

Available to order

Unavailable in store (Promasens)

Within 15 days on average.

CHF 10.86 (tax incl.)

Earn 10 loyalty points

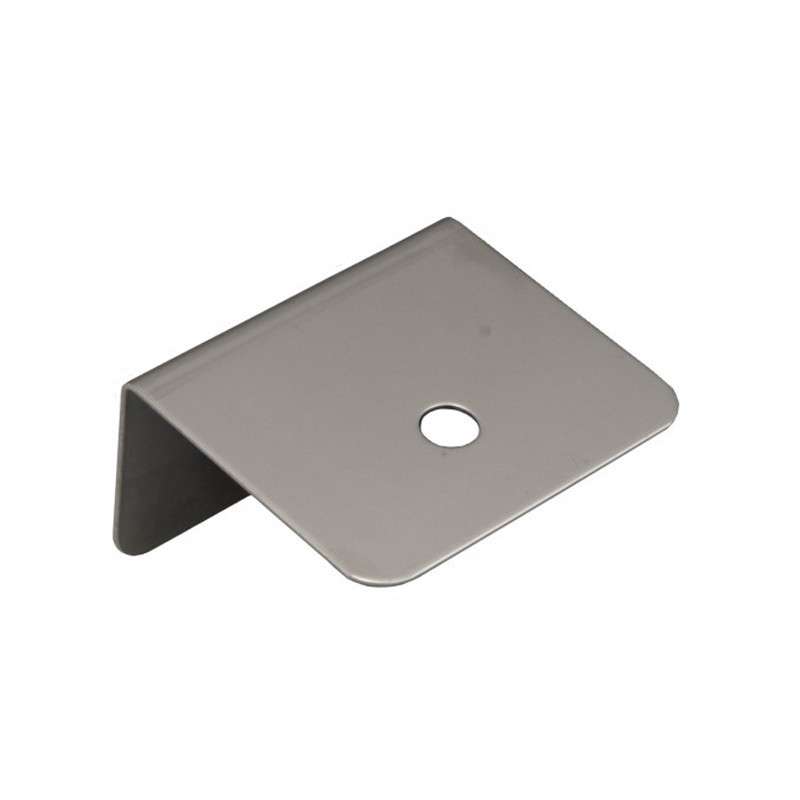

The OBP single brake fluid reservoir bracket is designed to mount an off-board brake fluid reservoir in the engine compartment. It allows for a compact and organized installation when a master cylinder is fed by a separate reservoir.

Made of 1.6 mm thick stainless steel, this OBP bracket offers a rugged design suitable for braking systems in competition, rally, and track vehicles, or for modifications requiring the mounting of a remote reservoir.

This single-reservoir version measures 80 mm wide, 70 mm deep at the top, and 50 mm high at the rear. It features an 11 mm mounting hole for a compatible OBP brake fluid reservoir.

OBP also offers this range of brackets in double and triple versions to accommodate multiple reservoirs depending on the hydraulic system configuration.

Technical Specifications

Brand: OBP Motorsport
Manufacturer Part Number: OBPCB008
Type: Single brake fluid reservoir bracket
Number of reservoirs: 1
Material: stainless steel
Thickness: 1.6 mm
Width: 80 mm
Top depth: 70 mm
Rear height: 50 mm
Number of holes: 1
Bolt hole diameter: 11 mm
Application: Brake fluid reservoir mounting off-board
Compatibility: compatible OBP brake fluid reservoirs
Mounting: universal
Country of manufacture: United Kingdom

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
