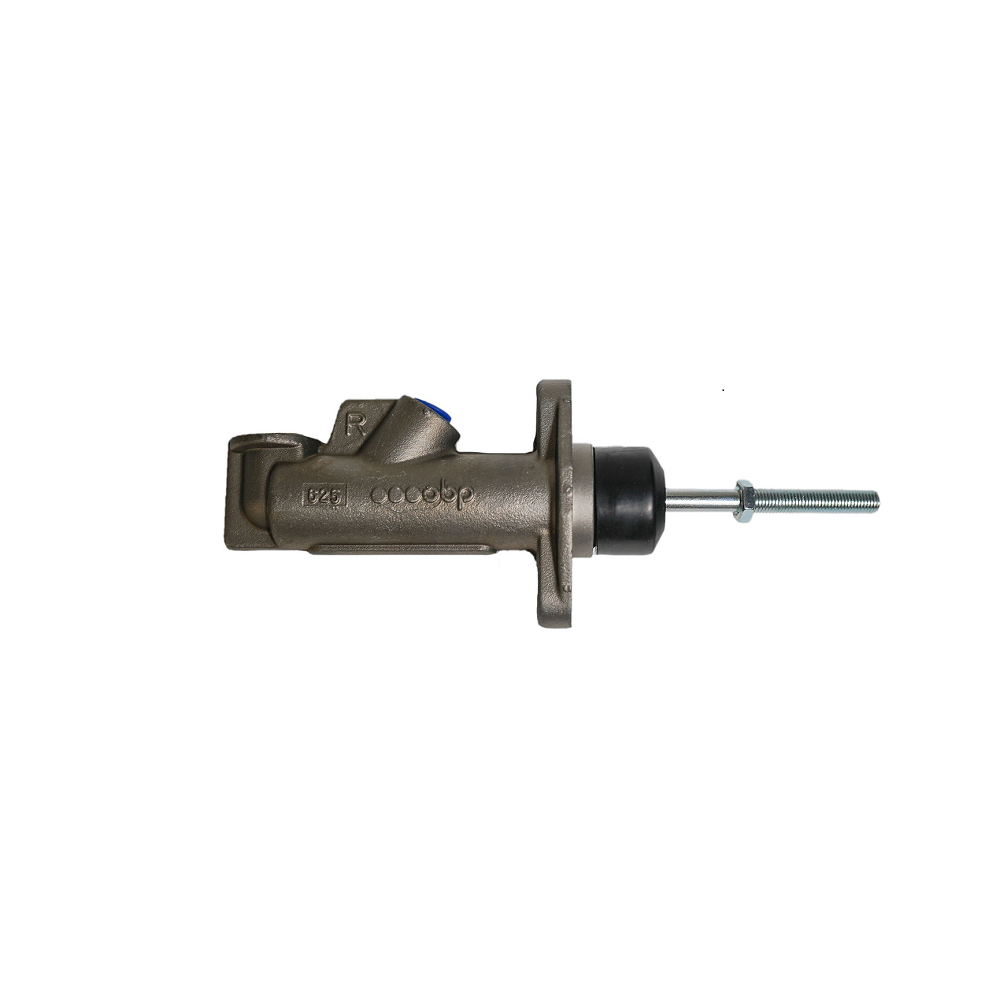

OBP Alu Master cylinder 0.7 (Diameter 17.8 mm)
Reference:
OBP-MC07
Supplier Ref.:
OBPCB001
With an inlet thread of 7/16x20 UNF and an outlet thread of 3/8x24 UNF, it installs easily in your braking system.
The master cylinder stem has a 5/16 UNF thread and measures 84mm in length.
Bolt spacing on the vertical mounting flange is 63.5mm.
Overall dimensions of the master cylinder are 210x40x70mm.
The piston stroke is 31.5mm, allowing a maximum flow rate of 7.8ml.
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
