AP Racing Master Cylinder, Ø 15.9 mm - 115 mm 5/16in-24 UNF push rod
Reference:
AP-CP4623-90T115
Supplier Ref.:
CP4623-90PRT115
Part number CP4623-90PRT115 is an AP Racing master cylinder with a 15.9 mm bore for competition-grade hydraulic brake and clutch systems. It features an out-of-round flange with a 115 mm 5/16 inn-24 UNF threaded rod, measured from the mounting point.
The out-of-round flange facilitates access to the mounting bolts. The hydraulic openings are metric.
The forged aluminum body and the 60° out-of-round flange meet the demands of compact mountings. The range also includes versions with non-captive rods. Its BLACK clamp identifies the 15.9 mm diameter.
Technical Specifications
- Brand: AP Racing.
- Manufacturer Part Number: CP4623-90PRT115.
- Range: CP4623.
- Actuation: Push.
- Mounting: 60° out-of-round flange.
- Master cylinder diameter: 15.9 mm - 0.625 in - 5/8 in.
- Identification clamp color: BLACK.
- Total stroke: 25.4 mm.
- Hydraulic inlet: M12 × 1.0.
- Hydraulic outlet: M10 × 1.0.
- Stroke before supply shutoff: 0.68 to 1.09 mm - short.
- Center distance of mounting holes: 57.15 mm.
- Mounting hole diameter: 8.69 to 8.81 mm.
- Shaft thread: 5/16 inn-24 UNF.
- Rod length from mounting point: 115 mm.
- Body material: Forged aluminum.

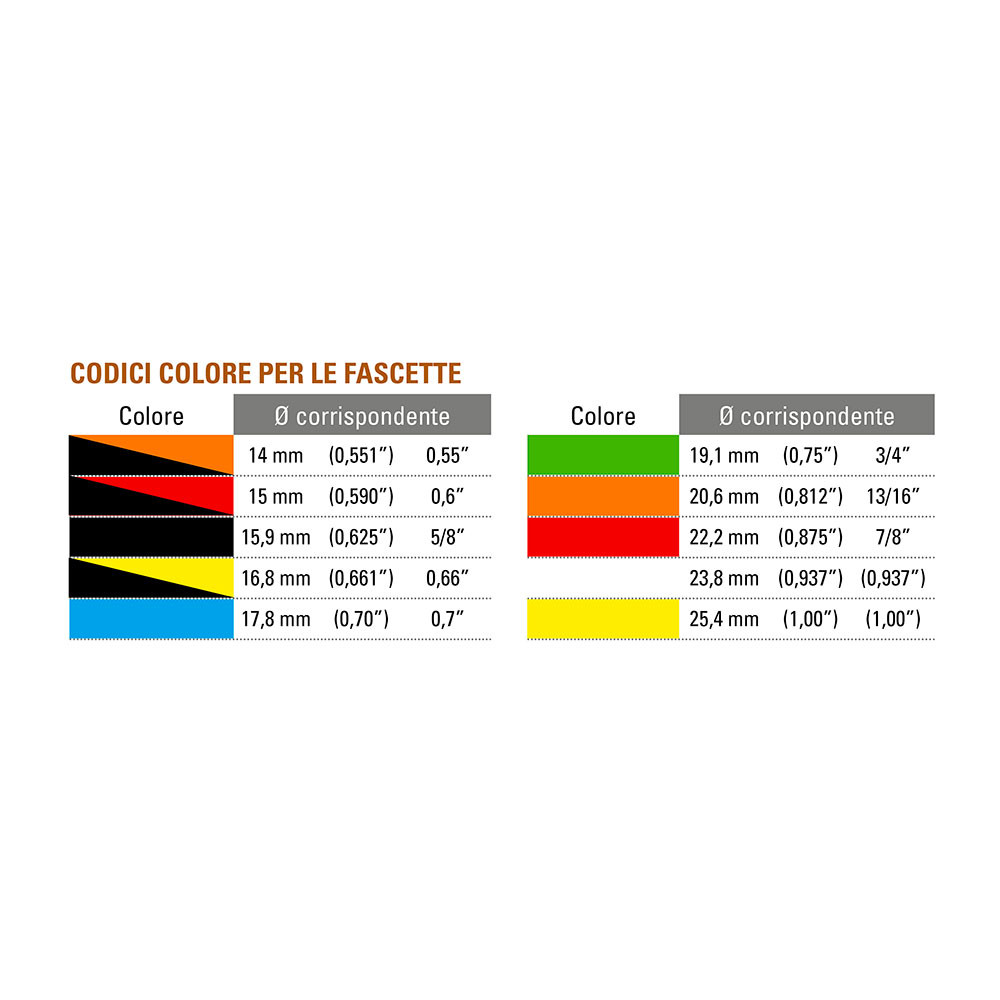

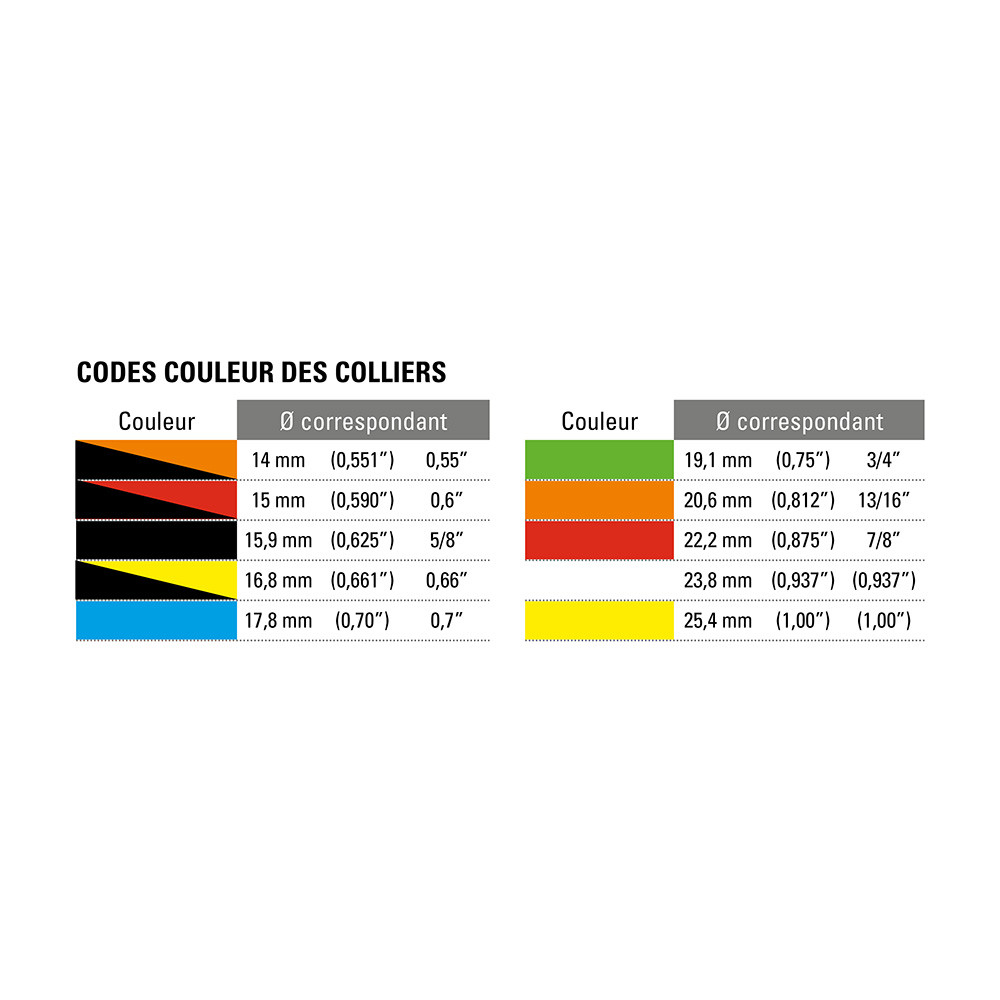

Color-coded diameter identification
AP Racing master cylinders come with a small colored plastic clamp wrapped around the body to make it easier to identify their diameter. The part number and nominal diameter are also marked on the body.
The following table applies to push-type master cylinders. This part number has a BLACK clamp corresponding to 15.9 mm - 0.625 in - 5/8 in.
| Color | Diameter in mm | Diameter in inches |
|---|---|---|
| BLACK / ORANGE | 14 mm | 0.551 in |
| BLACK / RED | 15 mm | 0.590 in |
| BLACK | 15.9 mm | 0.625 in - 5/8 in |
| BLACK / YELLOW | 16.8 mm | 0.661 in |
| BLUE | 17.8 mm | 0.70 in |
| GREEN | 19.1 mm | 0.75 in - 3/4 in |
| ORANGE | 20.6 mm | 0.812 in - 13/16 in |
| RED | 22.2 mm | 0.875 in - 7/8 in |
| WHITE | 23.8 mm | 0.937 in - 15/16 in |
| YELLOW | 25.4 mm | 1.00 in |
Replacement Parts and Repair Kit
Repair kit part number: AP Racing CP2623-90RK, sold separately.
Mounting and Connections
Check the mounting, connections, and alignment of the control unit. The 115 mm dimension refers to the length of the rod from the mounting point, not the length of the body. The shaft thread is for the mechanical connection; it is separate from the hydraulic threads.
Master cylinders are individually adjusted during manufacturing: do not interchange rods, pistons, or internal components between different assemblies.
Photo and Master Cylinder Selection

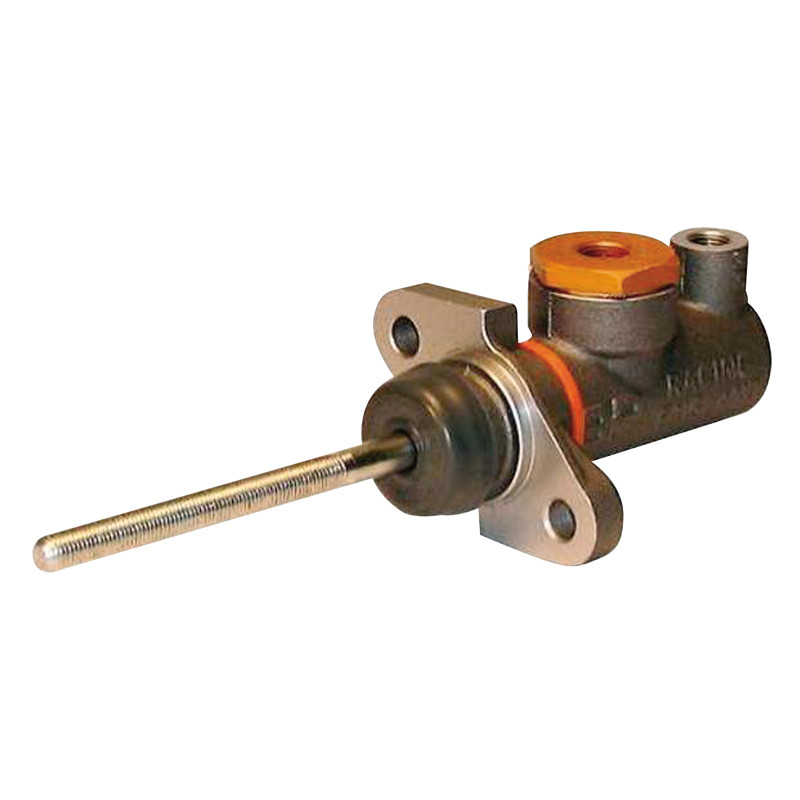

The photo shows the AP Racing CP4623 range and is not binding regarding the color of the identification clamp. To select the model suitable for your mounting, refer to the part number and technical specifications listed in this data sheet.
Before ordering, be sure to check the master cylinder diameter, threading, rod length, and fastening type. If you have any questions, our technicians can help you select the correct part number for your system. Feel free to contact them.
Key Features
- Forged aluminum body.
- 60° out-of-round flange: facilitates access to mounting hardware.
- Compact design.
- Short stroke before the fluid supply shuts off.
- Metric hydraulic inlet and outlet.
- Visual identification: BLACK clamp for the 15.9 mm diameter.
