AP Racing Master Cylinder, Ø 22.2 mm - 115 mm M8 x 1.25 push rod
Reference:
AP-CP262394PRM11
Supplier Ref.:
CP2623-94PRM115
The AP Racing master cylinder (Ø 22.2 mm), part number CP2623-94PRM115, is designed for hydraulic controls for brake and clutch systems in racing applications. Its compact design makes it particularly suitable for installations where space is limited.
Its forged aluminum body is lighter than that of the cast aluminum version, offering a weight savings of 50 g. It features a vertical mounting flange, a short stroke before the fluid supply shuts off, and UNF imperial hydraulic threads.
This version features a master cylinder diameter of 22.2 mm - 0.875 in - 7/8 in and an M8 x 1.25 threaded push rod measuring 115 mm from the mounting flange. Its RED plastic clamp allows for quick identification of the diameter.
Technical Specifications
- Brand: AP Racing.
- Manufacturer Part Number: CP2623-94PRM115.
- Range: CP2623.
- Actuation: Push.
- Mounting: Vertical flange.
- Master cylinder diameter: 22.2 mm - 0.875 in - 7/8 in.
- Identification clamp color: RED.
- Total stroke: 25.4 mm.
- Hydraulic inlet: 7/16 in-20 UNF.
- Hydraulic outlet: 3/8 in-24 UNF.
- Stroke before supply shuts off: 0.68 to 1.09 mm - short.
- Mounting hole center distance: 57.2 mm.
- Mounting hole diameter: 8.7 mm.
- Shaft thread: M8 x 1.25.
- Rod length from mounting point: 115 mm.
- Body material: Forged aluminum.
- Listed weight: 300 g.
- Weight savings: 50 g compared to the cast aluminum version.

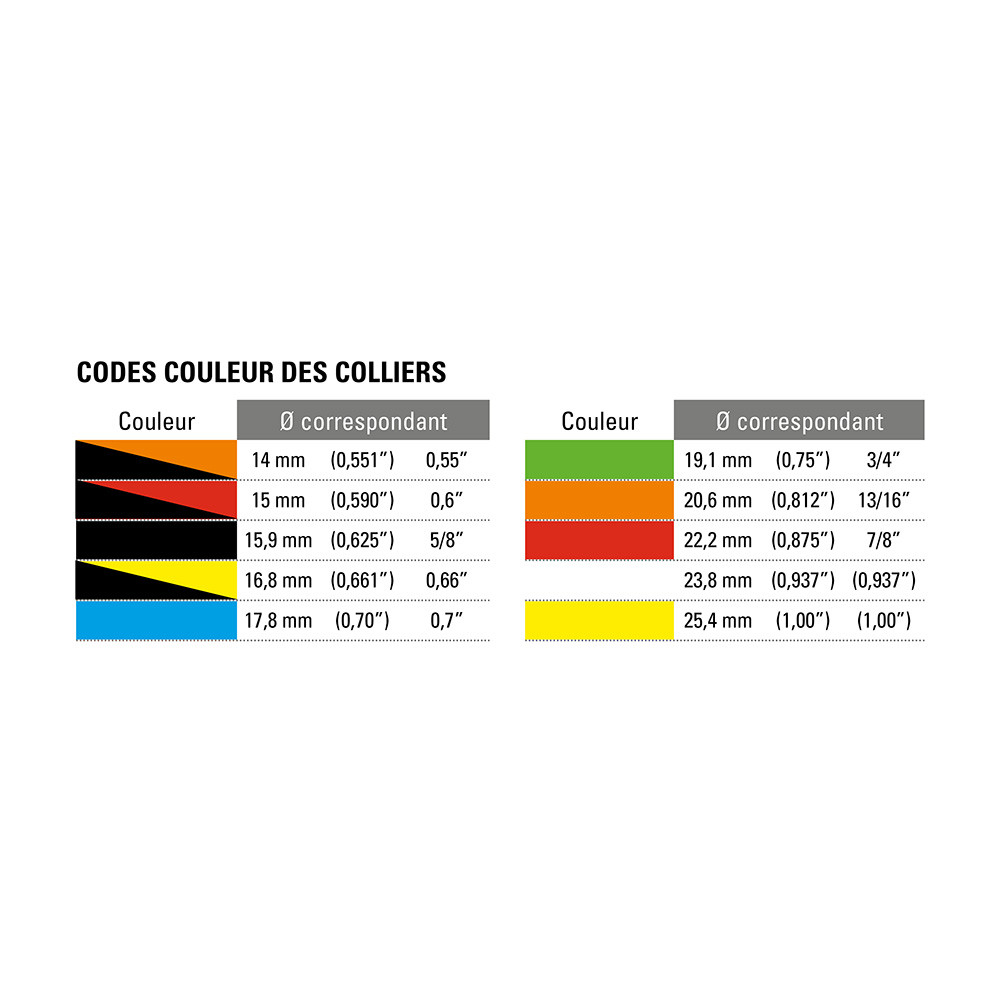

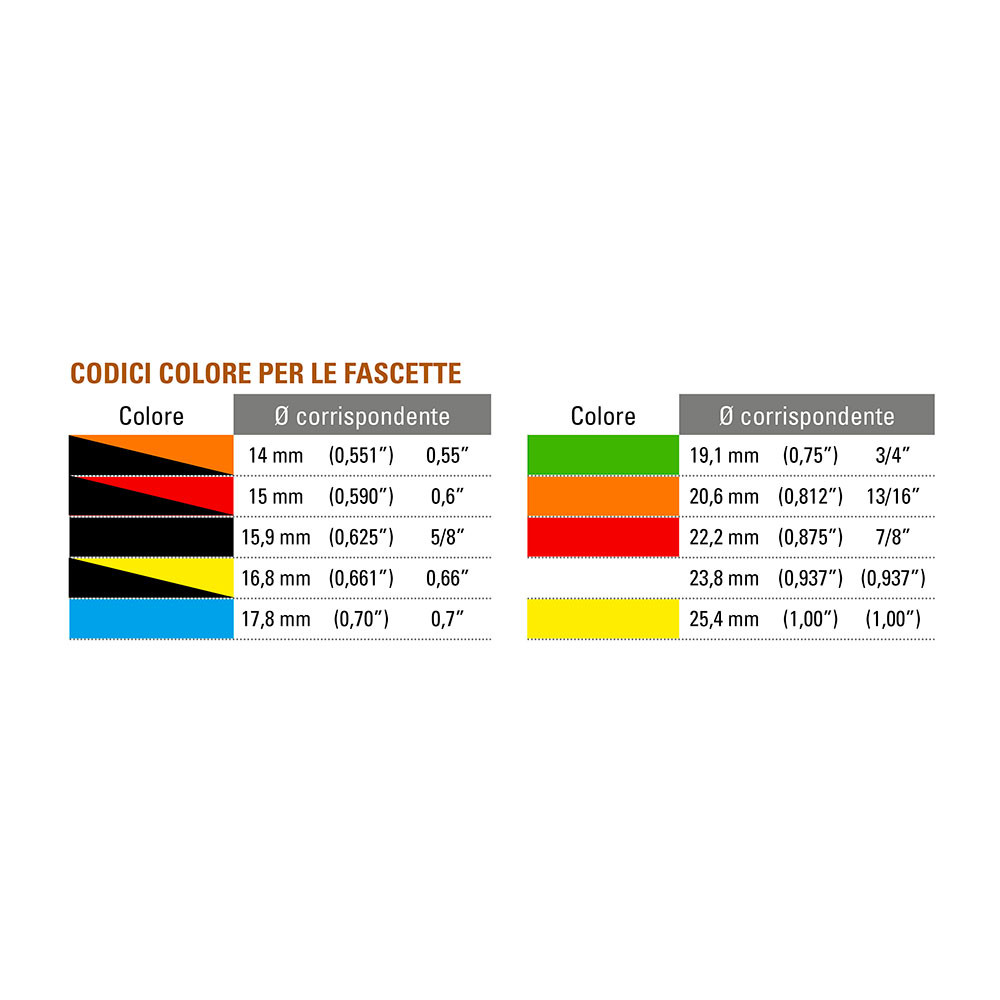

Color-coded diameter identification
AP Racing master cylinders come with a small colored plastic clamp wrapped around the body to make it easier to identify their diameter. The part number and nominal diameter are also marked on the body.
The following table applies to push-type master cylinders. This part number features a RED clamp corresponding to 22.2 mm - 0.875 in - 7/8 in.
| Color | Diameter in mm | Diameter in inches |
|---|---|---|
| BLACK / ORANGE | 14 mm | 0.551 in |
| BLACK / RED | 15 mm | 0.590 in |
| BLACK | 15.9 mm | 0.625 in - 5/8 in |
| BLACK / YELLOW | 16.8 mm | 0.661 in |
| BLUE | 17.8 mm | 0.70 in |
| GREEN | 19.1 mm | 0.75 in - 3/4 in |
| ORANGE | 20.6 mm | 0.812 in - 13/16 in |
| RED | 22.2 mm | 0.875 in - 7/8 in |
| WHITE | 23.8 mm | 0.937 in - 15/16 in |
| YELLOW | 25.4 mm | 1.00 in |
Non-captive rod versions
The CP2623 range also includes non-captive rod versions, available under separate part numbers. These allow the master cylinder to be replaced without removing the pedal or lever rod. The part number CP2623-94PRM115 shown here is a captive rod version.
Replacement Parts and Repair Kit
Repair kit part number: AP Racing CP2623-94RK, sold separately.
Mounting and Connections
Check the mounting, connections, and alignment of the control unit. The 115 mm dimension refers to the length of the rod from the mounting point, not that of the body. The shaft thread is for the mechanical connection; it is separate from the hydraulic threads.
Master cylinders are individually adjusted during manufacturing: do not interchange rods, pistons, or internal components between different assemblies.
Photo and Master Cylinder Selection

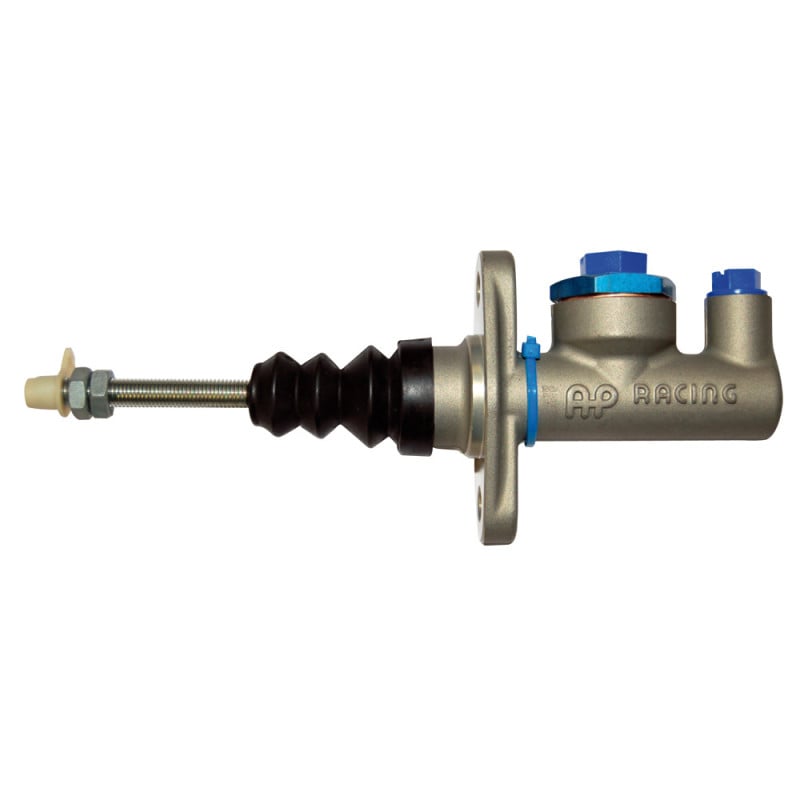

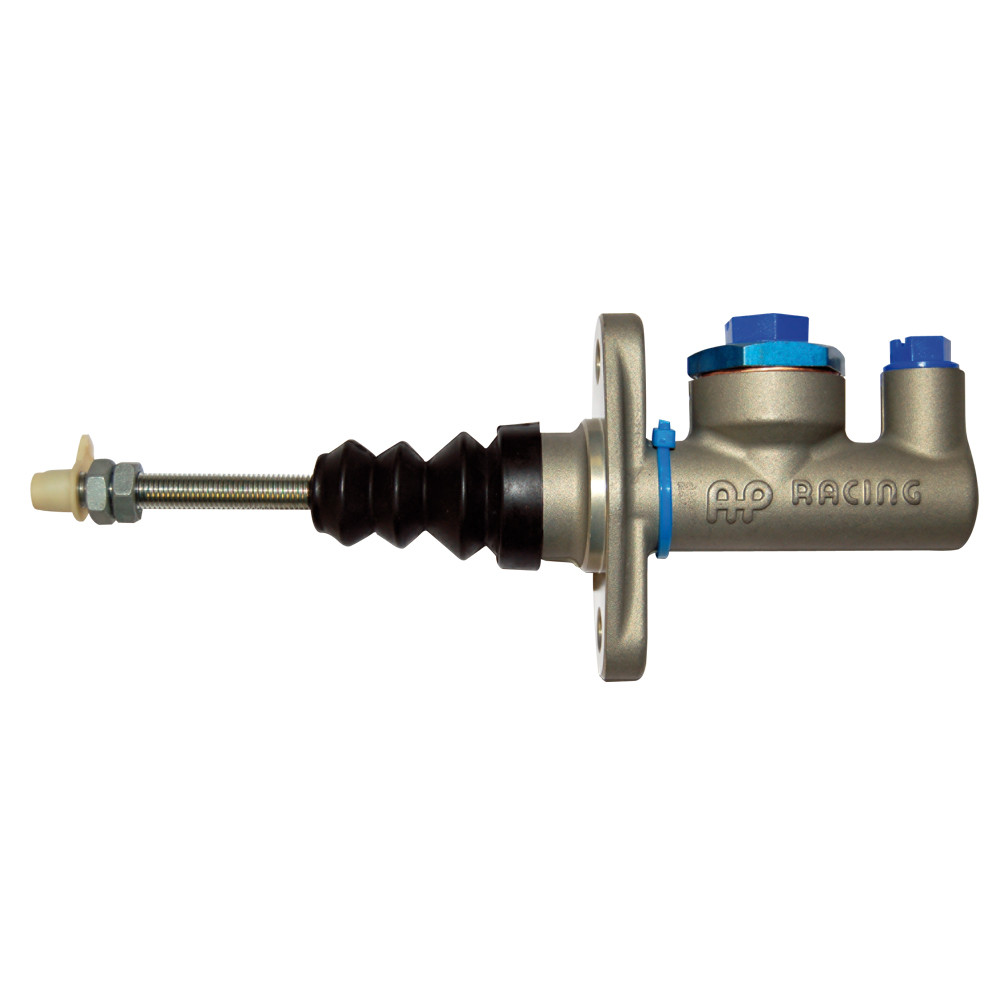

The photo shows the AP Racing CP2623 range and is not binding with regard to the color of the identification clamp. To select the model suitable for your mounting, refer to the part number and technical specifications provided in this data sheet.
Before ordering, be sure to check the master cylinder diameter, threading, rod length, and fastening type. If you have any questions, our technicians can help you select the correct part number for your system. Feel free to contact them.
Key Features
- Forged aluminum body: 50 g lighter than the cast aluminum version.
- Compact design: suitable for installations with limited space.
- Short stroke before fluid supply shuts off: 0.68 to 1.09 mm.
- Dual application: hydraulic brake and clutch controls.
- Visual identification: RED clamp for the 22.2 mm diameter.
-
Metric threadM8x125
