AP Racing 22.2 mm Master Cylinder CP7854-94PRTE - AP-CP7854-94PRTE - CP7854-94PRTE - 3661768605127

AP Racing Master Cylinder, Ø 22.2 mm, with pivot

Reference: AP-CP7854-94PRTE

Supplier Ref.: CP7854-94PRTE

Learn more

CHF 446.19 Tax included

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 446.19 (tax incl.)

Earn 446 loyalty points (that is CHF 15.00 in vouchers)

The AP Racing Ø 22.2 mm trunnion-mounted master cylinder, part number CP7854-94PRTE, is a push-type model designed for single-circuit competition hydraulic systems. Its one-piece piston and pushrod assembly and its extra-short stroke before the fluid supply is cut off contribute to the systemâ€™s efficiency.

The hard-anodized aluminum alloy body is equipped with a bellows for protection. The pivot operates on needle bearings.

Technical Specifications

Brand: AP Racing.
Manufacturer Part Number: CP7854-94PRTE.
Range: CP7854.
Actuation: Push.
Mounting: Trunnion with needle bearings.
Master cylinder diameter: 22.2 mm - 0.875 in - 7/8 in.
Identification clamp color: RED.
Total stroke: 30 mm.
Hydraulic inlet: 7/16 in-20 UNF.
Hydraulic outlet: 3/8 in-24 UNF.
Stroke before supply shuts off: 0.48 to 0.63 mm - extra short.
Shaft thread: 5/16 in-24 UNF.
Body material: Hard-anodized aluminum alloy.

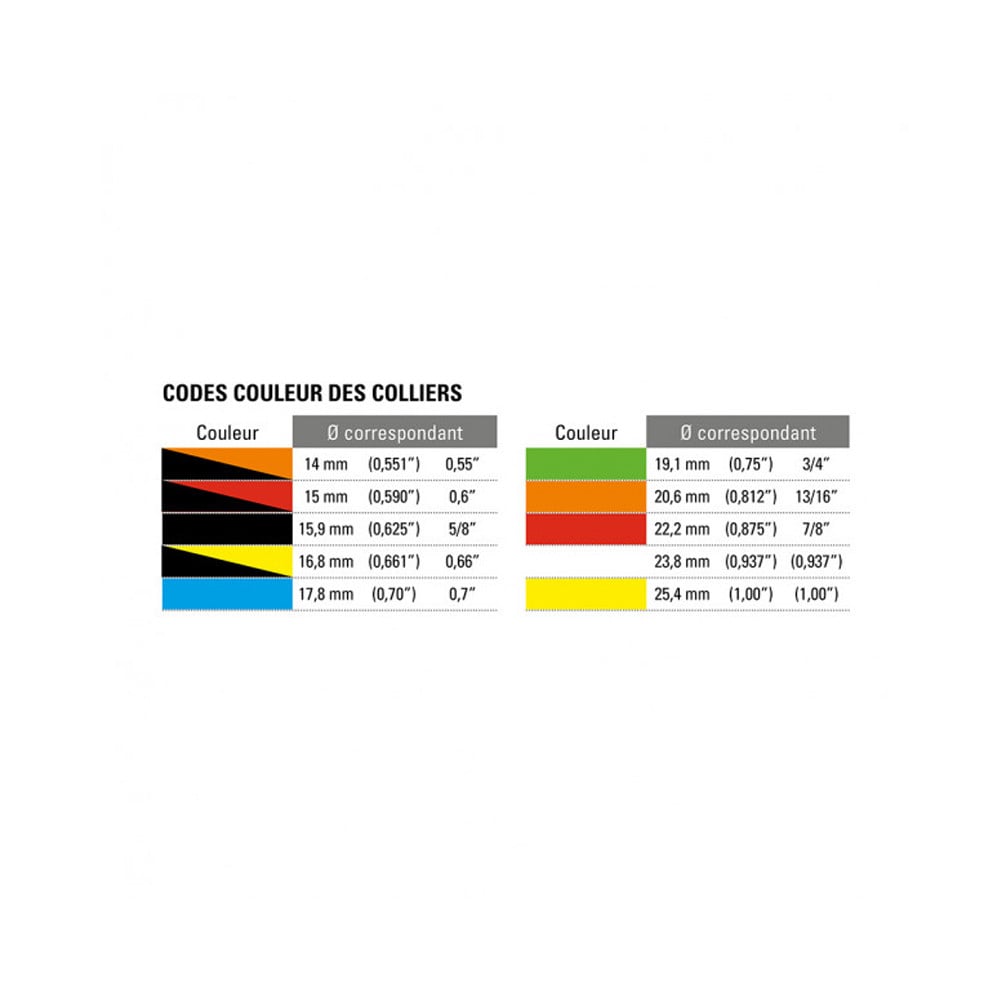

Color-Coded Diameter Identification

AP Racing master cylinders are supplied with a small colored plastic clamp wrapped around the body to facilitate diameter identification. The part number and nominal diameter are also marked on the body.

The following table applies to push-type master cylinders. This part number has a RED clamp corresponding to 22.2 mm - 0.875 in - 7/8 in.

Color	Diameter in mm	Diameter in inches
BLACK / ORANGE	14 mm	0.551 in
BLACK / RED	15 mm	0.590 in
BLACK	15.9 mm	0.625 in - 5/8 in
BLACK / YELLOW	16.8 mm	0.661 in
BLUE	17.8 mm	0.70 in
GREEN	19.1 mm	0.75 in - 3/4 in
ORANGE	20.6 mm	0.812 in - 13/16 in
RED	22.2 mm	0.875 in - 7/8 in
WHITE	23.8 mm	0.937 in - 15/16 in
YELLOW	25.4 mm	1.00 in

Replacement Parts and Repair Kit

Repair kit part number: AP Racing CP7855-94RK, sold separately.

Mounting and Connections

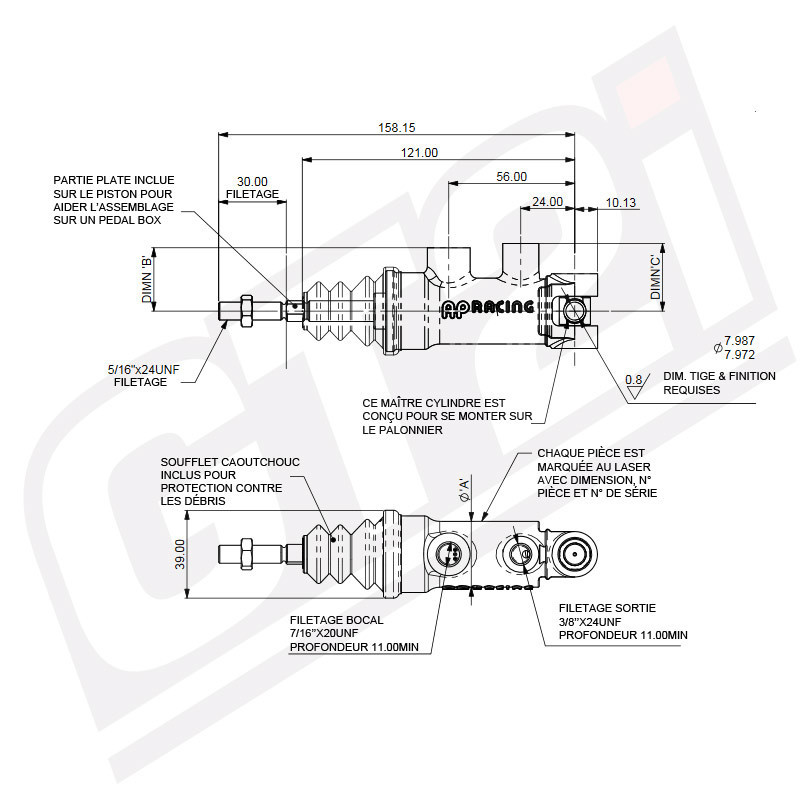

Check the sizes of the pedal support and mounting bracket on the AP Racing diagram. The -93, -94, -95, and -96 versions have a larger body than the smaller bore versions. Adapt the UNF fittings and reservoir during mounting.

Photo and Master Cylinder Selection

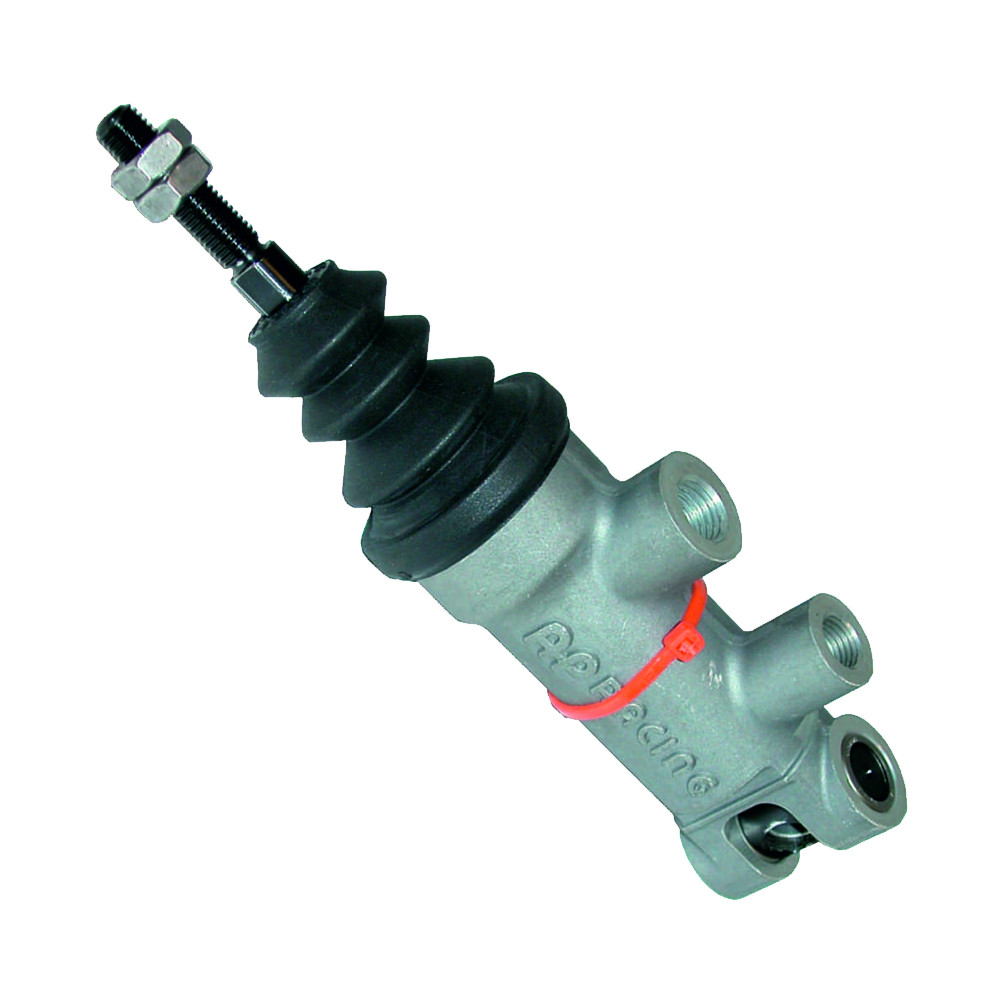

The photo shows the AP Racing CP7854 range and is not binding regarding the color of the identification clamp. To select the model suitable for your mounting, refer to the part number and technical specifications listed in this sheet.

Before ordering, be sure to check the master cylinder diameter, thread sizes, and fastening type. If in doubt, our technicians can help you select the correct part number for your system. Feel free to contact them.

Key Features

Hard-anodized aluminum body.
One-piece piston and pushrod: high-efficiency design.
Extra-short stroke before the supply is shut off: 0.48 to 0.63 mm.
Pivot mounted on needle bearings.
Protective bellows.
Visual identification: RED clamp for the 22.2 mm diameter.

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
