MOD 7 Evo XF Data dashboard

This MOD 7 EVO XF-DATA dashboard is easy to configure without the need for a computer, everything is done directly on the dashboard.

Its main functions are:

- DISPLAY

Home screen with MOD7 RACING image
2 pages of information if you are not using the engaged report
3 pages of information if you are using the gear engaged by calculation
4 pages of information if you use the gear engaged for sequential gearboxes

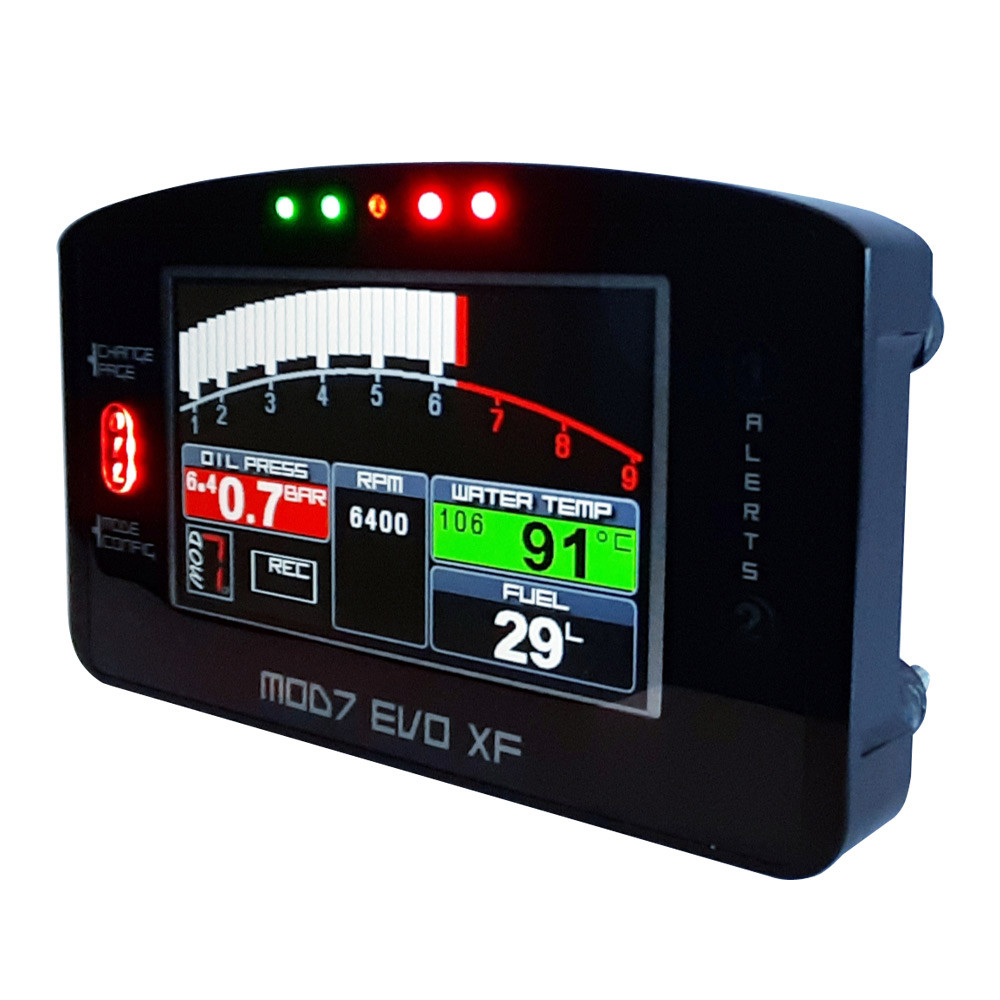

Sectional engine speed bar graph, with programmable red zone

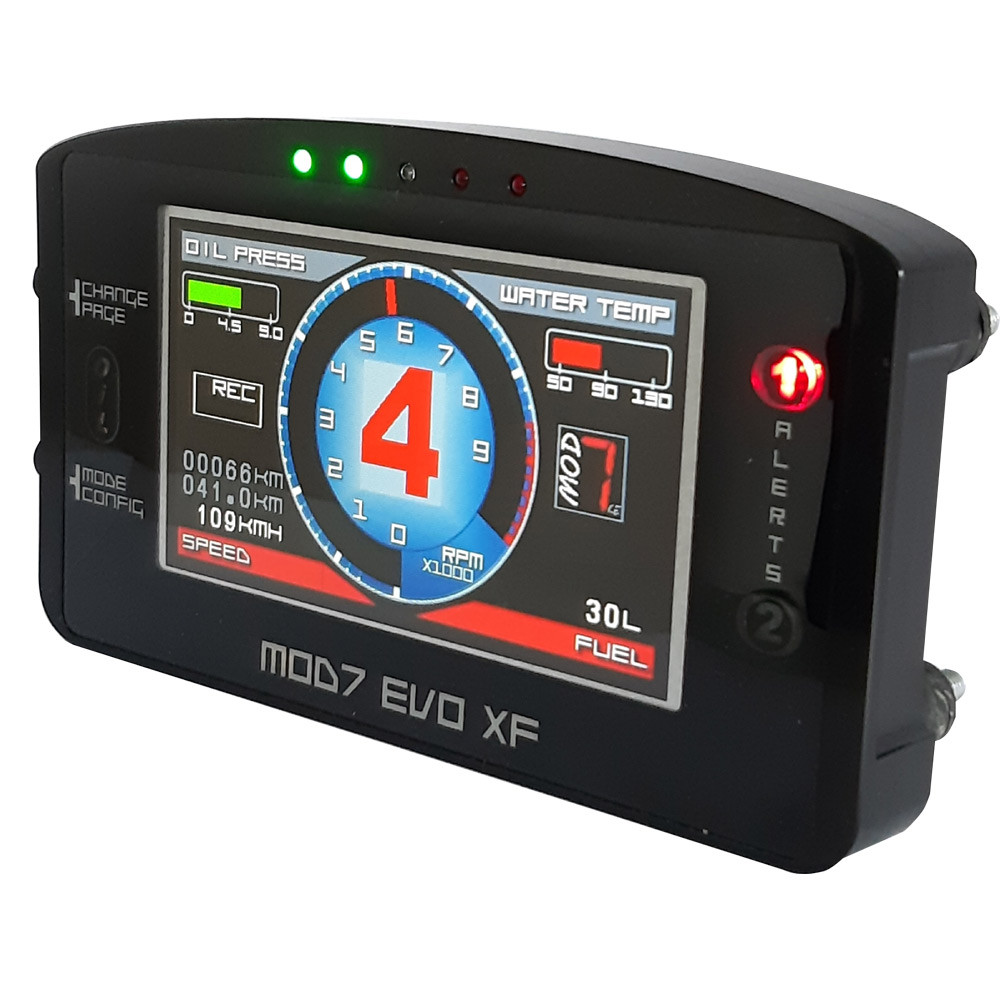

New-design needle speedometer
Vumeter-style oil pressure and water temperature (horizontal bar graph)

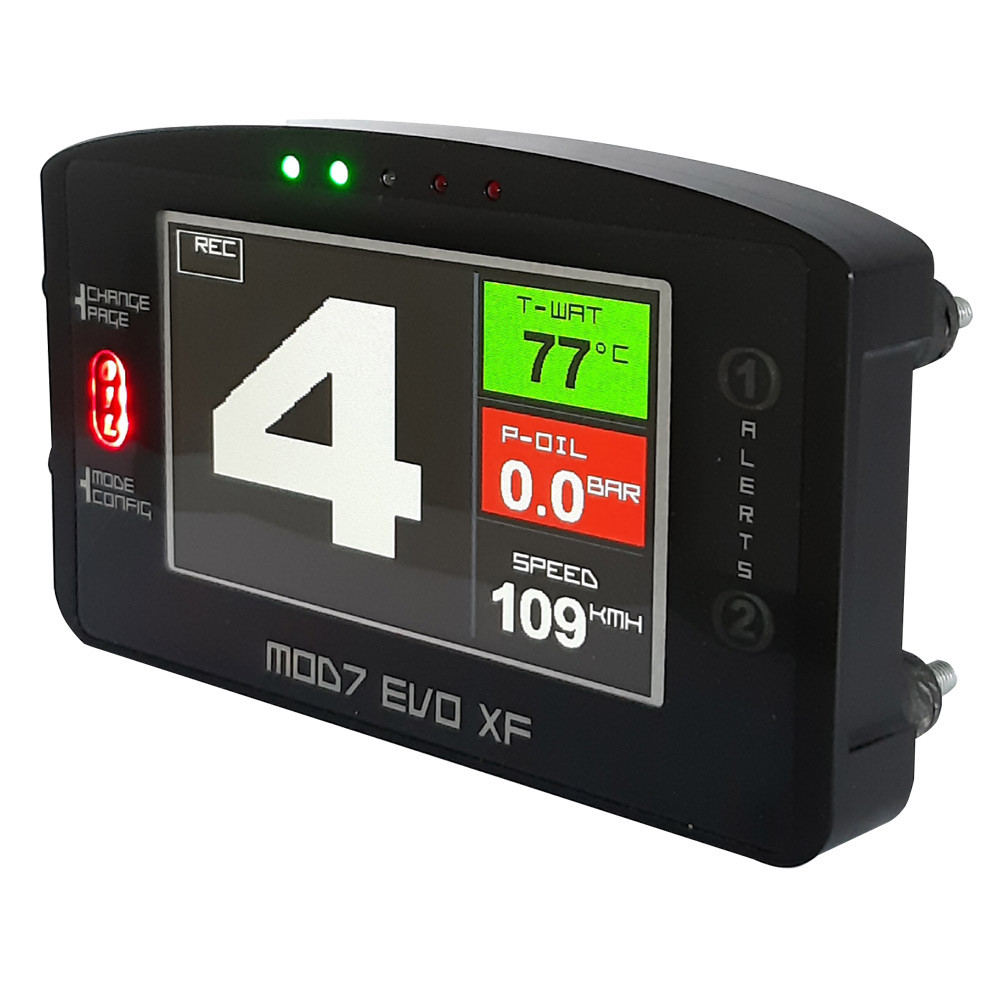

Gear engaged in very large numbers on pages 3 and 4
Display brightness adjustable to 3 levels for optimum comfort

- ENGINE SPEED

Display from 0 to 10000 rpm
Page1: sectional Bargraph format up to 9000 rpm with programmable red zone
Page2 : Needle format up to 10000 rpm
Digital format up to 10000 rpm
Information taken from injection ECU output or primary coil
Maximum speed memory and display when engine is switched off

- GEAR ENGAGED

For sequential gearboxes if the 3rd analogue function is activated
For conventional gearboxes, H and Crabots, operating without sensors by calculating rpm and speed
Self-learning of gears while driving

- SHIFT LIGHT

5 ultra-bright LEDs: 2 green, 1 orange, 2 red
Progressive lighting (sequential), then flashing when they are all lit up
Each LED has its own lighting mode

- WATER TEMPERATURE

Can be read from the car's original sensor with possible correction (recalibration)
Programmable red LED high temperature alert 1
Change of display colour from GREEN to RED in the event of an alert
Maximum temperature memory and permanent display on Page 1
Possibility of reading a MOD7 sensor with connector

- OIL PRESSURE

Requires 10 bar VDO sensor (not supplied)
Programmable red LED OIL alert for low pressure from 0.5 to 2.0 bar
Change of display colour from GREEN to RED in the event of an alert
Maximum pressure memory and permanent display in Page 1

- 3rd ANALOG FUNCTION to be PROGRAMMED either
- GEAR ENGAGED

Works for sequential gearbox with potentiometer
Display on all pages in 2 formats
Displays R, N, 1, 2, 3, 4, 5 and 6

- FUEL GAUGE

Reads the car's original fuel gauge
Display on page 2
Programmable in 10-litre increments from 00 to 60 litres max.

- FUEL PRESSURE

Reads a 10 bar VDO sensor (not supplied)
Display on page 1
Low pressure warning AL2 orange LED programmable from 2.5 to 4.0 bars

- TURBO PRESSURE

Reads 2 bar VDO sensor (not supplied)
Display on page 1
High pressure warning AL2 orange LED programmable from 0.5 to 2.0 bars

- SPEED

Display up to 300 km/h on page 2
Reading of 'ils' magnetic sensor supplied with magnet
Drive wheel circumference adjustment from 1m40 (10") to 2m30 (21")
Maximum speed memory and display when engine is switched off

- DISTANCES

Total distance covered up to 50000km
Daily trip up to 999.9km with manual reset to 0.0

- DATA ANALYSIS

On-board data acquisition option as standard
Acquisition of rpm, speed, gear ratio, water temperature and oil pressure functions
Acquisition every 0.2ms (5 times per second)
Maximum recording time: 2 hours

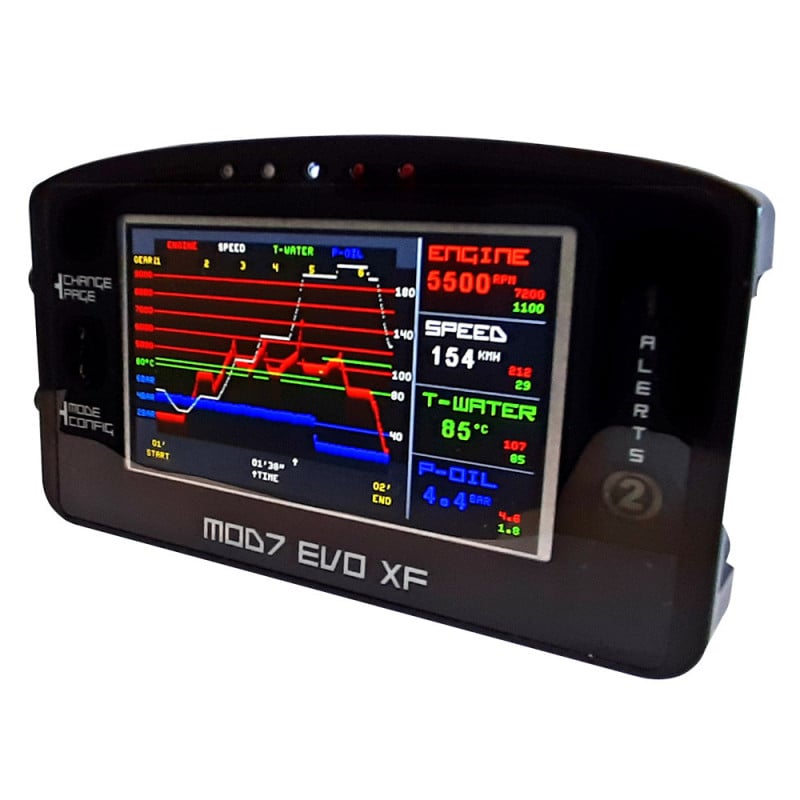

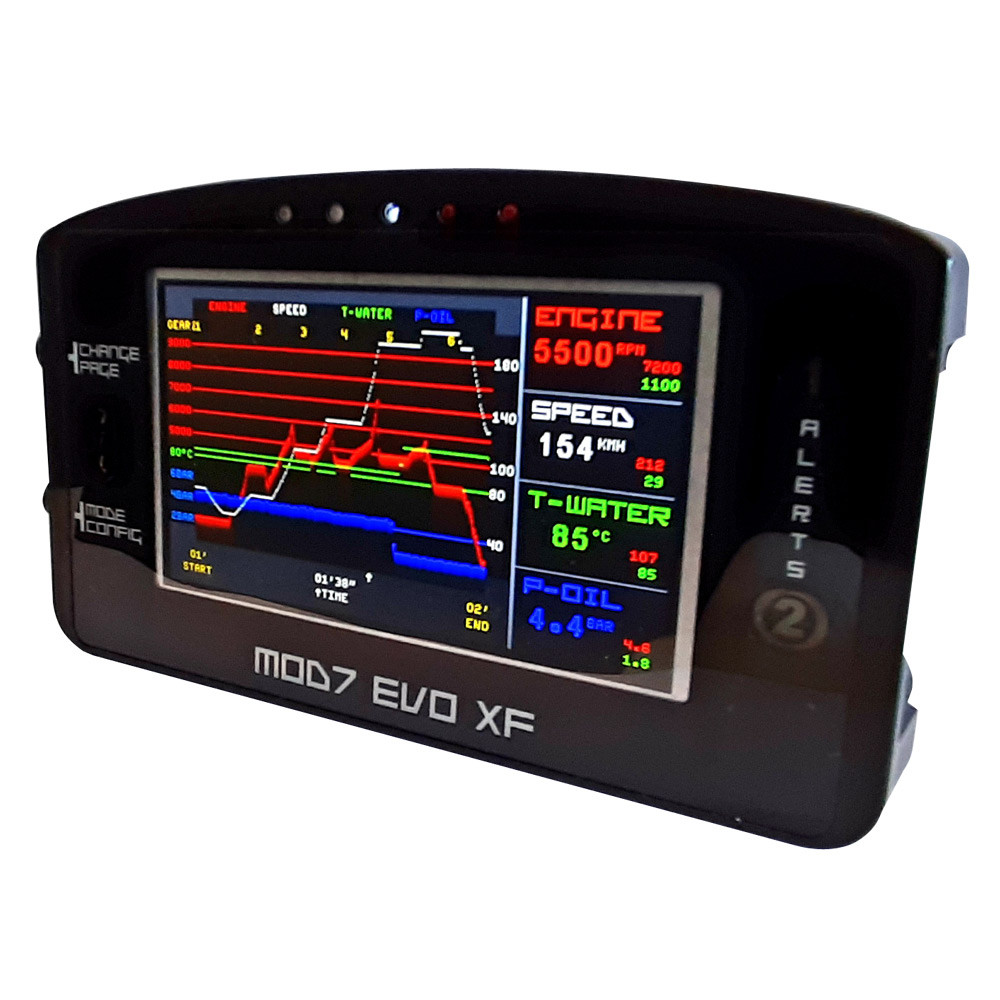

Playback after recording directly on the dashboard screen
Stop/resume recording without erasing
Display screen divided into 2 sections: graph and numerical values

Fixed by 4 silent blocks

Dimensions: 160x92x19mm
Total weight with sensors and beams: approx. 380g
