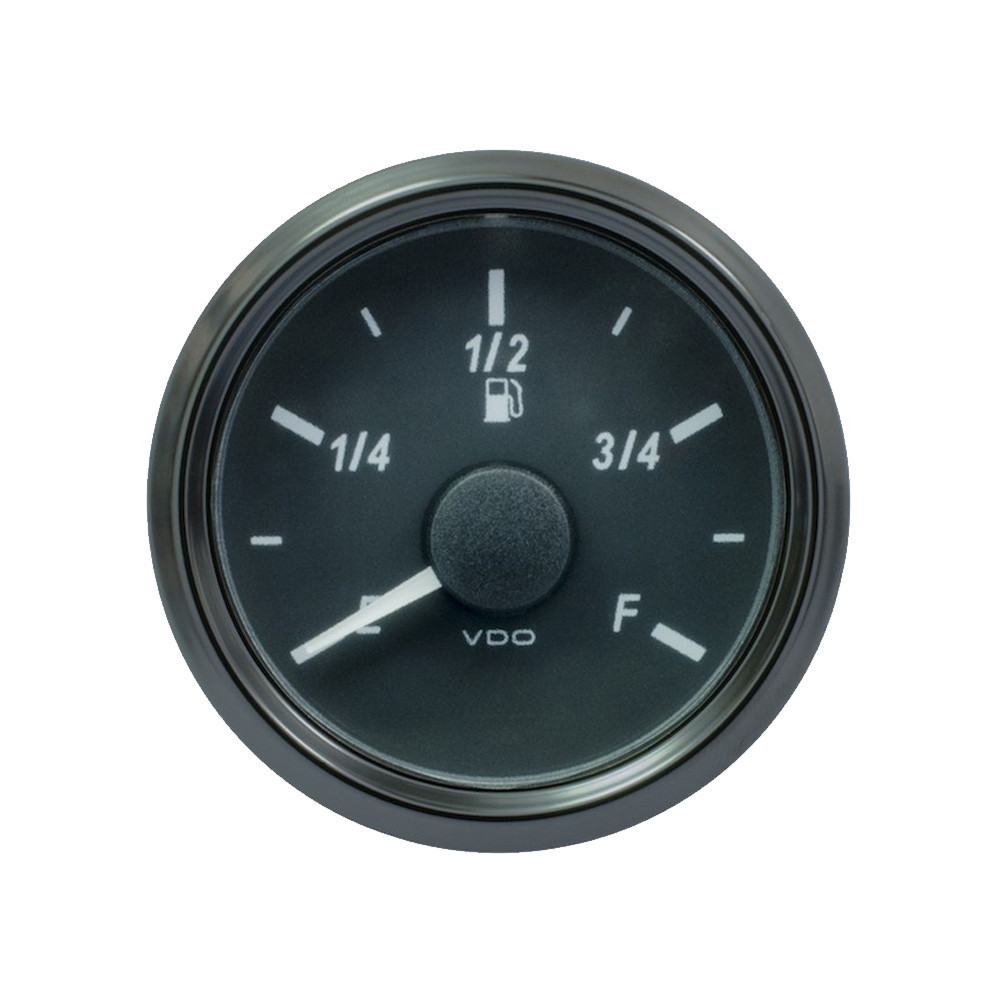

The VDO SingleViu Fuel Level Gauge displays the fuel level in the tank on a black dial. Its 52 mm bolt hole diameter allows for installation on the dashboard. The scale indicates the tank level from empty to full.
The analog connection uses 0 to 90° (empty to full). Verify compatibility with the signal or curve of the sensor being used before wiring. The SingleViu range also supports the CAN bus with the SAE J1939 protocol. The operating mode must match the installation.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C3833140001
- Type: Fuel Level Gauge
- Range: SingleViu
- Bolt hole diameter: 52 mm
- Display range: Empty to 1/2 full
- Operating voltage: 8 to 32 V DC
- Dial: Black
- Analog signal: 0 to 90° (empty to full)
- Communication: Analog or CAN SAE J1939
- Connector: 8-pin Molex
- Lighting: LED
- Connecting cable: Must be ordered separately
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely by the VDO brand. Check the sensor’s curve, which must match the gauge’s input.
