VDO Oil Pressure Sensor, 0–10 bar, M12×150, with 1.50 bar alert

Oil pressure measurement with this VDO oil pressure sensor is based on a resistive signal ranging from 10 to 184 ?. This part number covers 0 to 10 bar and uses an M12×150 connector.

The 10 to 184 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 1.50 bar ± 0.15 bar warning contact provides a function separate from the measurement, to control a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 360-081-030-019C
• Type: Oil pressure sensor
• Measurement range: 0 to 10 bar
• Thread: M12×150

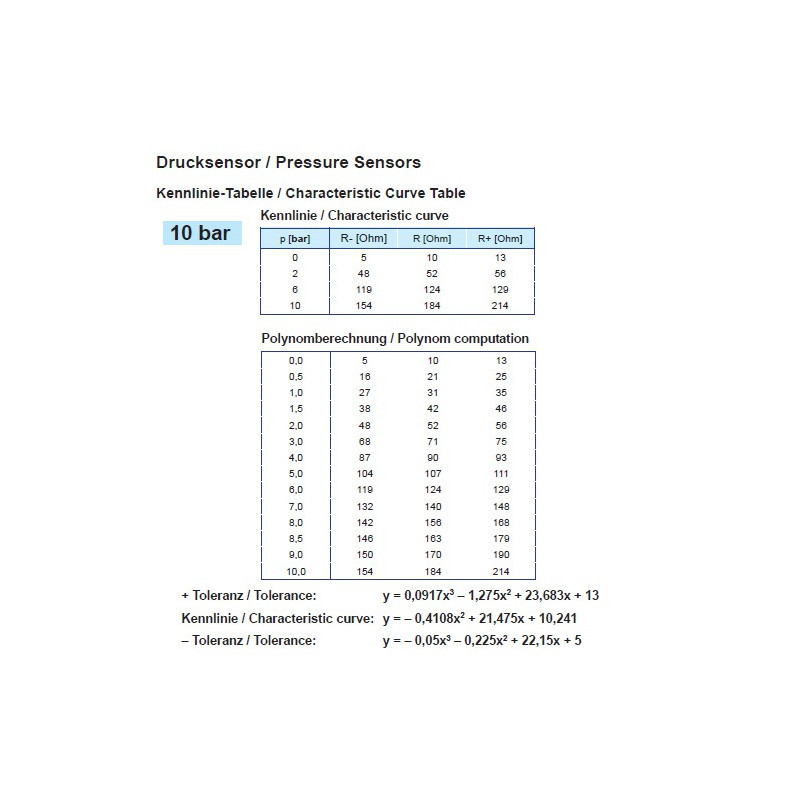

• Resistive signal: 10 to 184 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte : 1.50 bar ± 0.15 bar

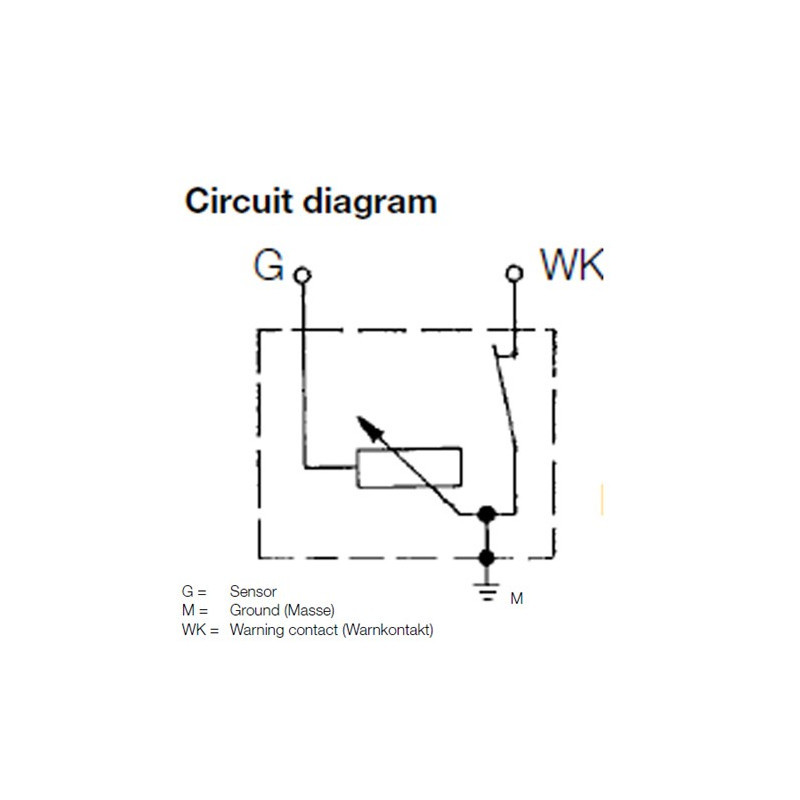

• Type of grounding: Grounded through the probe body

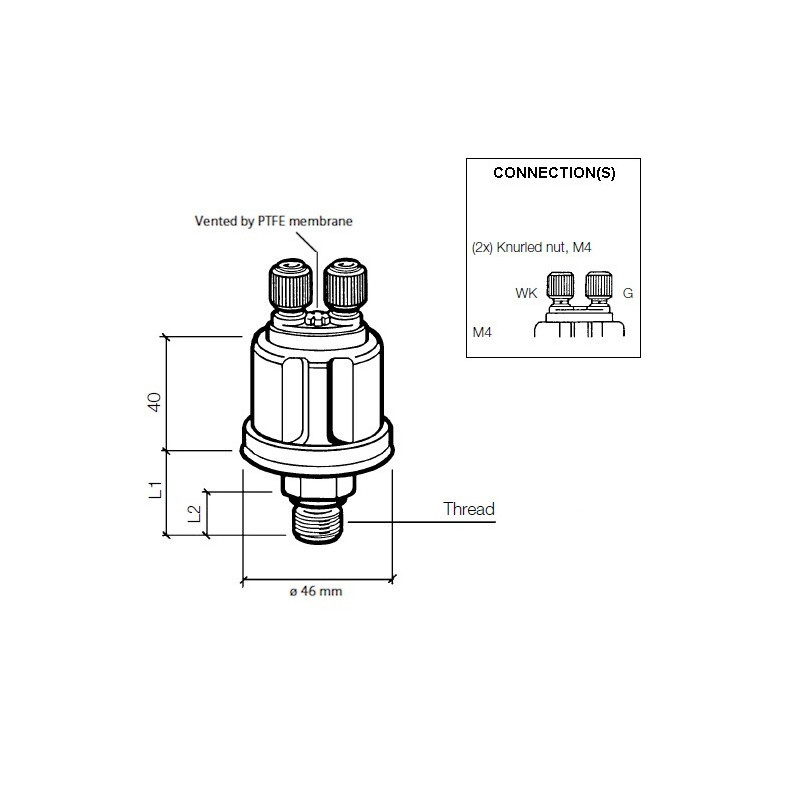

• Measurement connection: M4 plastic knurled nut
• Alarm contact connection: M4 plastic knurled nut
• Threaded length L2: 12 mm
• Thread and hex length L1: 20.5 mm
• Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the M12×150 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
