VDO 310 mm Tubular Fuel Dipstick - 54 mm SAE Flange

VDO
Reference: V-000310
Supplier Ref.: 224-011-000-310G
CHF 86.67 Tax included
Available to order
Unavailable in store (Promasens)
Within 30 days on average.
Earn 86 loyalty points

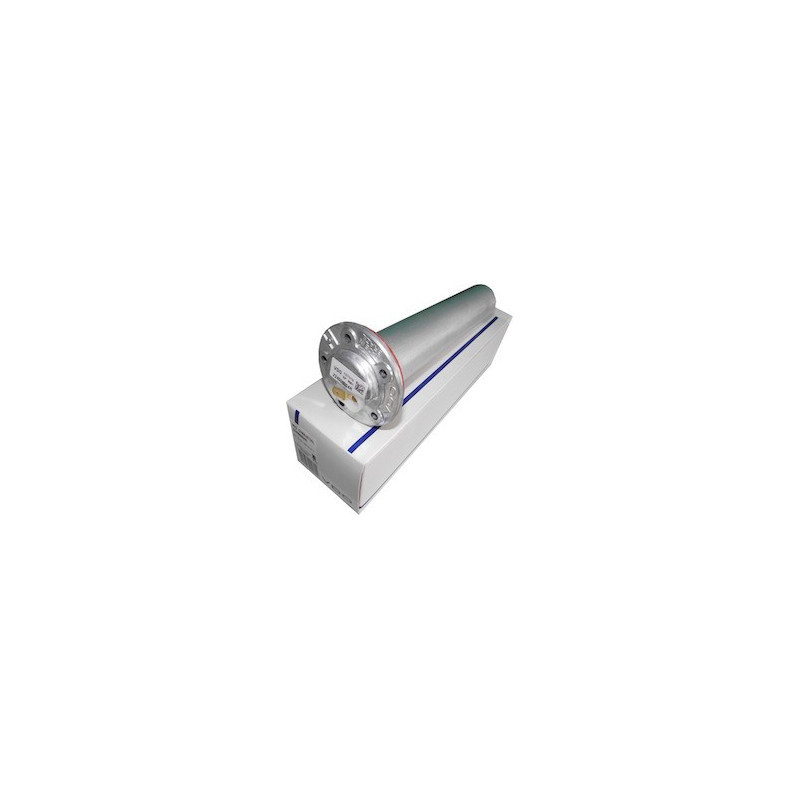

The 310 mm VDO tubular fuel dipstick measures the fuel level in the tank. It transmits a resistance of 84.0 ? ± 2.5 ? when empty and 2.5 ? ± 1.5 ? when full to a compatible gauge.

This version has a fixed-length tube. Its resistance outlet drops as the fuel level rises; the gauge must use the curve corresponding to this fuel level sensor.

Technical Specifications

  • Brand: VDO
  • Manufacturer Part Number: 224-011-000-310G
  • Type: Tubular level sensor

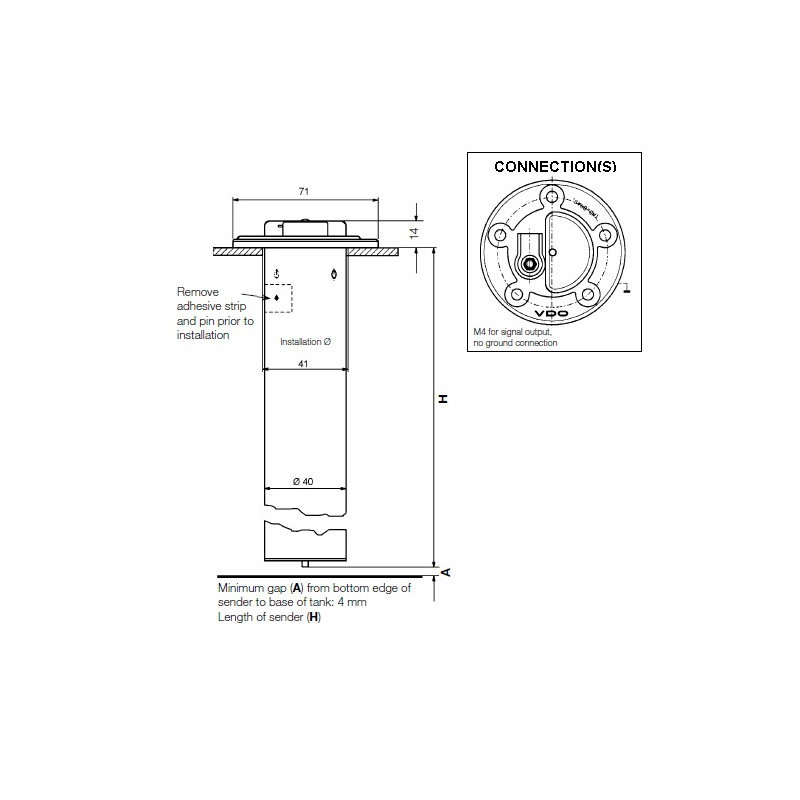

  • Tube length: 310 mm ± 2.0 mm

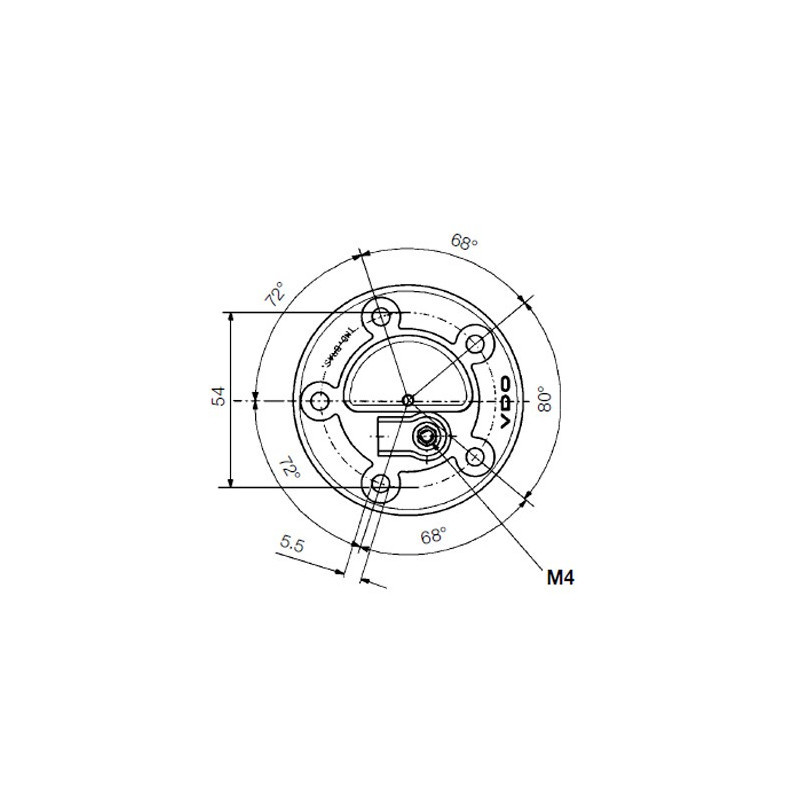

  • Mounting: 5-hole SAE flange, 54 mm mounting circle
  • Open-circuit resistance: 84.0 ? ± 2.5 ?
  • Full-scale resistance: 2.5 ? ± 1.5 ?
  • Operating voltage: 6 to 24 V DC
  • Alarm contact: None

Compatibility and Mounting

Select an indicator compatible with the resistance values and their direction of change. Check the flange mounting and the available depth in the tank.

  • Sensor type
    Tubular Gasoline Dipstick
