VDO SingleViu Fuel Level Gauge, Ø52 mm, 3 to 180 ?

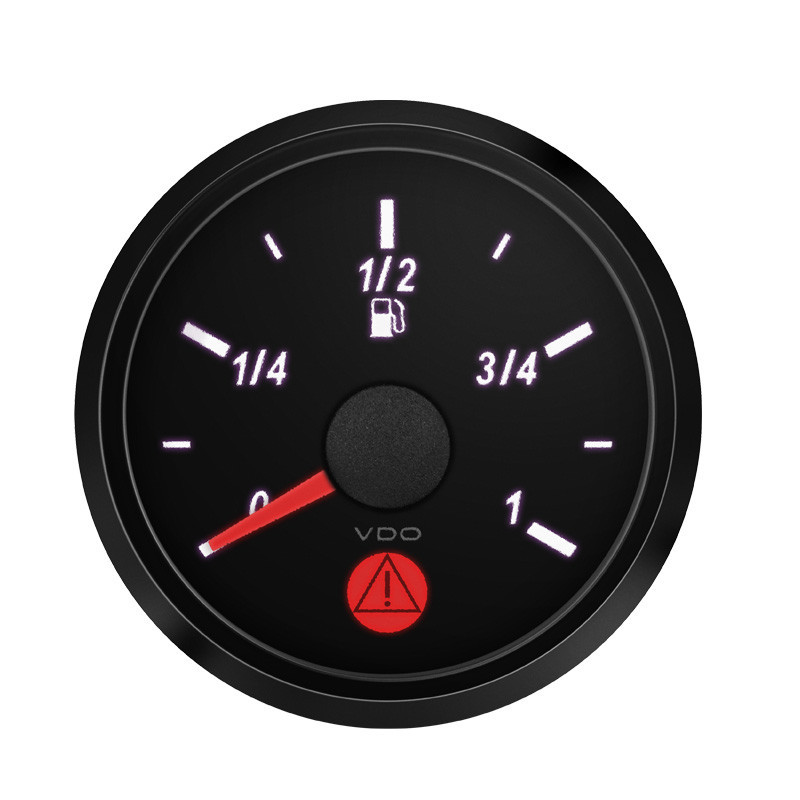

The VDO SingleViu Fuel Level Gauge displays the fuel level in the tank on a black dial. Its 52 mm bolt hole diameter allows for installation on the dashboard. The scale indicates the tank level from empty to full.

The analog connection uses an empty-to-full range of 3 to 180 ?. Verify compatibility with the signal or curve of the sensor being used before wiring. The SingleViu series also supports the CAN bus with the SAE J1939 protocol. The operating mode must match the installation.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: A2C3833100001
• Type: Fuel Level Gauge
• Range: SingleViu
• Bolt hole diameter: 52 mm
• Display range: Empty to 1/2 full
• Operating voltage: 8 to 32 V DC
• Dial: Black
• Analog signal: Empty to Full: 3 to 180 ?
• Communication: Analog or CAN SAE J1939
• Connector: 8-pin Molex
• Lighting: Programmable multicolor LED
• Connecting cable: Must be ordered separately

Compatibility and Mounting

Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely by the VDO brand. Check the shape of the sensor, which must match the indicator’s input.
