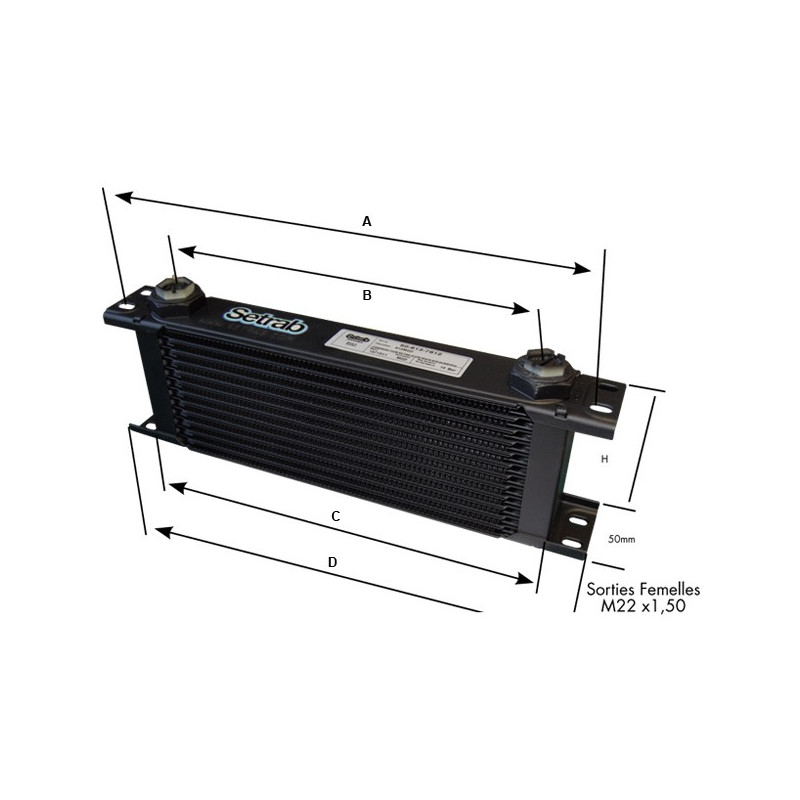

Setrab 13-row Serie 6 M22x150 oil cooler

A vital part of any competition vehicle, the Setrab 6 Series aluminum oil cooler provides effective engine oil temperature control.

The best position for the oil cooler is in front of the water cooler in order to have sufficient air flow. In order not to impede the cooling of the water, it is essential to place the oil cooler against the water cooler (in front of or behind the water cooler depending on the position of the fan). This will not affect the cooling of the water.

Number of rows: 13

Height: 99mm
Capacity in liter: 0.24
Weight: 0.88kg
Female outlets: M22x150
Core width: 235mm
Operating pressure: 0-10bar
Max pressure: 12bar
Operating temperature: -40 to 150°C

A: 310mm
B: 250mm
C: 283mm
D: 330mm
Width: 50mm

Less detail

The range of 536 Series Push Fit Hose Ends have been designed and manufactured to match the 536 Series Hose. All 536 Series Push Fit Hose Ends are manufactured to the same high standards as the red and blue alloy hose ends. The Goodridge developed Sure Lock barbed end securely locks into the hose, giving a cost effective, safe and reliable connection. Once pushed on you will have to cut it off.
This Goodridge 90° swept tube female concave seat aluminum push-in fitting compatible with 536 Series hose is ideal for all low pressure applications and breathers.

Application: gasoline, oil, water, air, coolant

Thread: JIC 3/4x16

Hose: Dash 08

Material: aluminum

Less detail

The Goodridge 536 Dash 8 series hose is a product manufactured with a special reinforced textile inner braid and covered with a blue and black elastomeric protective cover. This high quality hose is designed for use in low pressure applications with the 536 Series hose line.
When the superior performance of stainless braided nitrile hose is not required, Series 536 is an excellent choice offering high quality, reliability, durability and affordability.

Caution: Not recommended for suction systems

Application: gasoline, E85 or oil

Inner diameter: 12.70mm

Outer diameter: 19.08mm

Operating pressure: 17bars

Mini burst pressure: 69bars

Bend radius: 127mm

Weight: 0.22kg/m

Temperature : -40°C to 100°C

Length: 1 linear meter

Hose : Dash 8

Also available in black version : G-536-08-BK

Less detail

Less detail

Male to male JIC/metric Goodridge convex thread adapter.

Thread: M22x150 / JIC 3/4x16

Hose type: Dash 8

Less detail

This sandwich plate or filter flange can be placed between the engine bloc and the oil filter.

Female outlets: M18x150

(2 adapters: Dash 08 JIC 3/4x16 - M18x150 included)

Probe outputs: Female 1/8 NPTF

Attaches with an expansion screw (2 screws included : 20x150 (Peugeot, Renault, Citroën...) and 3/4UNF

Oil filter port: internal Ø 52mm - external Ø 74mm

Less detail

A vital part of any competition vehicle, the Setrab 6 Series aluminum oil cooler provides effective engine oil temperature control.

The best position for the oil cooler is in front of the water cooler in order to have sufficient air flow. In order not to impede the cooling of the water, it is essential to place the oil cooler against the water cooler (in front of or behind the water cooler depending on the position of the fan). This will not affect the cooling of the water.

Number of rows: 13

Height: 99mm
Capacity in liter: 0.24
Weight: 0.88kg
Female outlets: M22x150
Core width: 235mm
Operating pressure: 0-10bar
Max pressure: 12bar
Operating temperature: -40 to 150°C

A: 310mm
B: 250mm
C: 283mm
D: 330mm
Width: 50mm

Less detail

This Goodridge JIC Concave 90° swept tube is part of the most complete line of lightweight, reusable alloy hose fittings that are specifically designed to fit 200 and 210 series hose.
Its aerospace-grade, triple-seal, double O-ring nitrile design ensures a secure, leak-free connection every time.
All 236 and 336 series nipples are available in bright red and blue anodized and provide permanent alignment with 360 degree swivel ends.

Applications: fuel, oil, coolants, methanol, water.

Thread: JIC 7/8x14

Hose: Dash 10

Material: aluminum

Less detail

GOODRIDGE DASH 10 nitrile hose (per m)

The N type hose has many advantages. Indeed, because of a double stainless steel protection, it resists better to pressure, vaccum and external shocks.

The internal nitrile composition allows the use of all types of fuels: gasoline, diesel, ethanol, nitromethane, oil, refrigerants...

Operating temperature : -49°C to +150°C

Inside diameter : 14.27 mm

Outside diameter : 20.24 mm

Working pressure (bar) : 69

Minimum burst pressure (bar) : 350

Radius of curvature (mm) : 101.6

Weight (kg/m) : about 0.348

Less detail

This Goodridge Straight JIC Concave Swivel is part of the most complete line of lightweight, reusable alloy hose fittings that are specifically designed to fit 200 and 210 series hose.
Its aerospace-grade, triple-seal, double O-ring nitrile design ensures a secure, leak-free connection every time.
All 236 and 336 series nipples are available in bright red and blue anodized and provide permanent alignment with 360 degree swivel ends.

Applications: fuel, oil, coolants, methanol, water.

Thread: 7/8x14

Hose: Dash 10

Material: aluminum

Less detail

Male to male JIC/metric Goodridge convex thread adapter.

Thread: M22x150 / JIC 7/8x14

Hose type: Dash 10

Less detail

This sandwich plate or filter flange can be placed between the engine bloc and the oil filter.

Female outlets: M18x150

(2 adapters: Dash 10 JIC 7/8x14 - M18x150 included)

Probe outputs: Female 1/8 NPTF

Attaches with an expansion screw (2 screws included : 20x150 (Peugeot, Renault, Citroën...) and 3/4UNF

Oil filter port: internal Ø 52mm - external Ø 74mm
