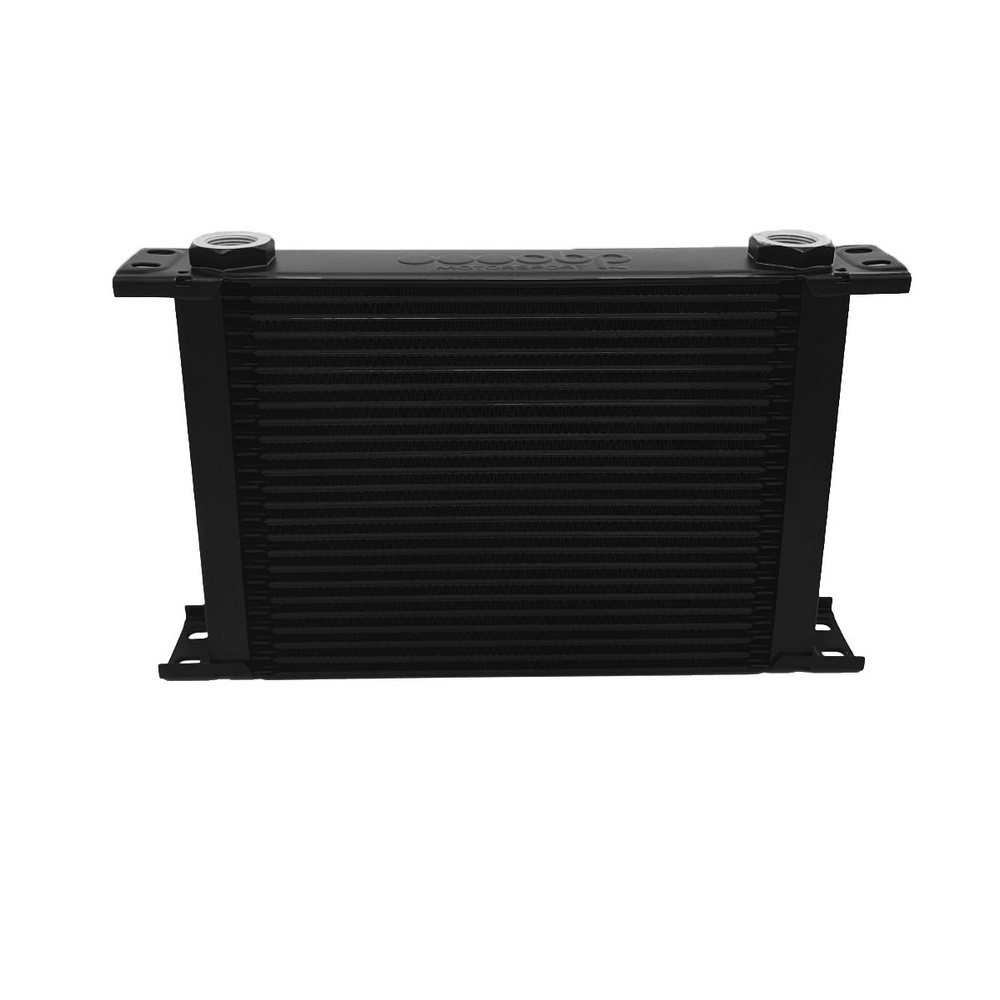

OBP oil cooler Matrix 235 M22x150 25 rows
This OBP oil cooler is an essential part of any competition vehicle, as it regulates the oil temperature and maintains optimum lubrication, thus preventing the engine from overheating.
This OBP oil cooler is ideally positioned in front of the water cooler to ensure adequate air flow.

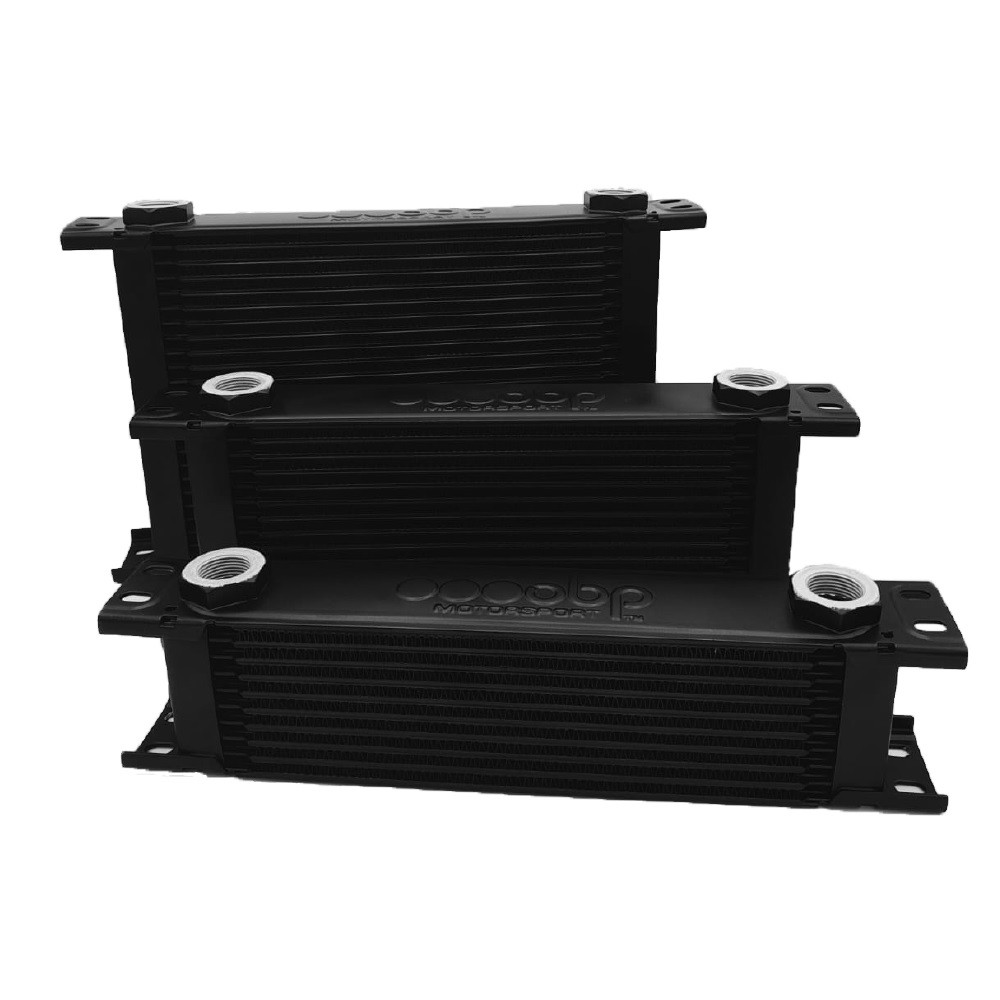

Available in 10, 13, 16, 19 or 25 rows.
Technical specifications :
- Working pressure: 0-145psi (0 - 10Bar)
- Maximum pressure: 170psi (12Bar)
- Burst pressure: 535psi (37Bar)
- Test pressure: 145psi (10Bar)
- Leak test pressure: 4bar (60psi)
- Operating temperature : -40° to 150°C
Dimesions of the OBP 25 row oil cooler :
- Distance between hole centres: 242mm
- Height: 195mm
- Length: 330mm
- Depth: 50mm
- Weight: 1.76kg
OBP M22x150 male/male to Dash adapters are required, part numbers: OBP-M22-xx for female connectors available for Dash6, Dash8, Dash10, Dash12 or Dash 16.
