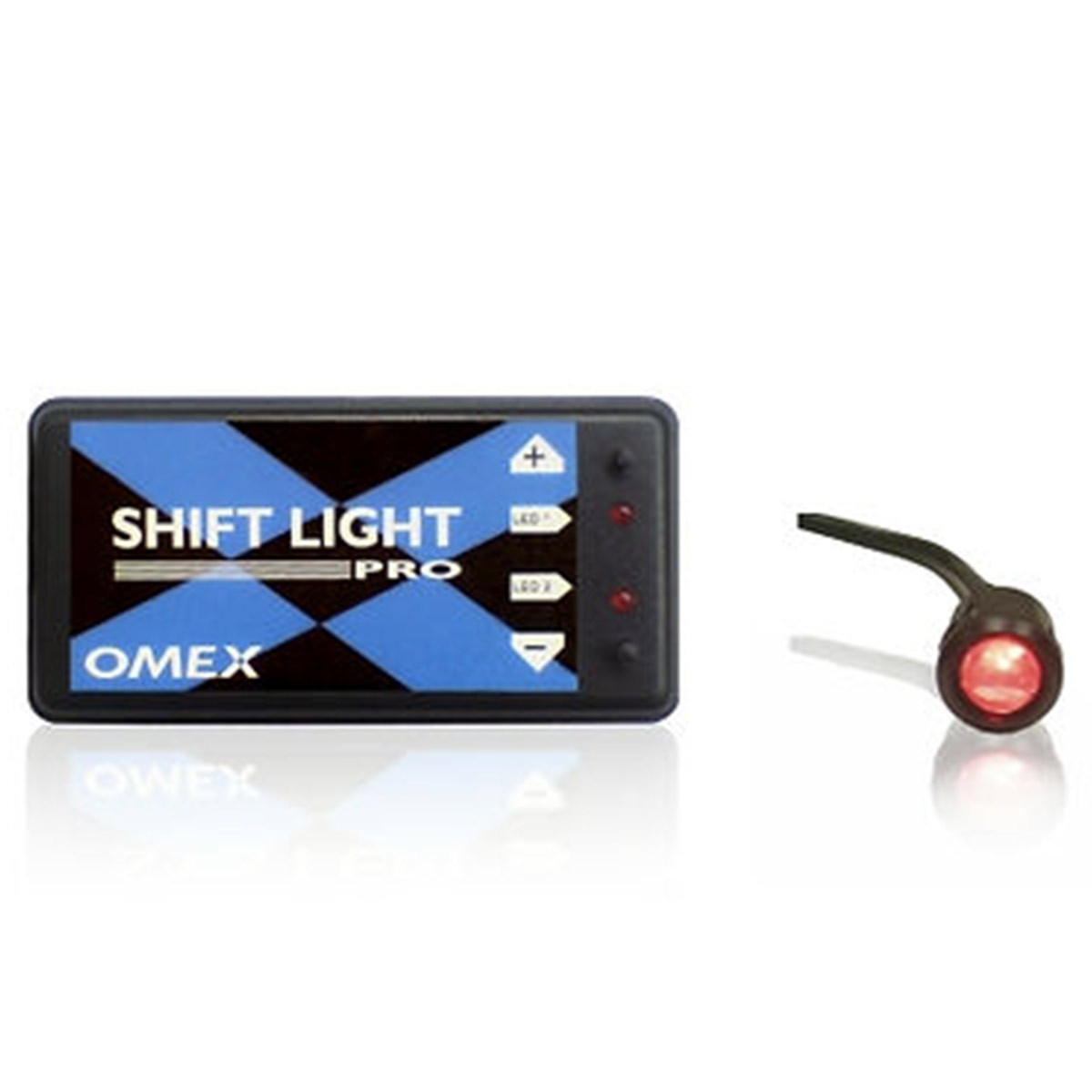

The Omex Shift Light Pro OMSLP is a shift light designed to fully harness your engine’s performance. By precisely indicating the ideal shift point, it helps the driver keep the engine within its optimal power band and gain precious fractions of a second with every shift—a decisive advantage in rallying, on the track, or in competition.

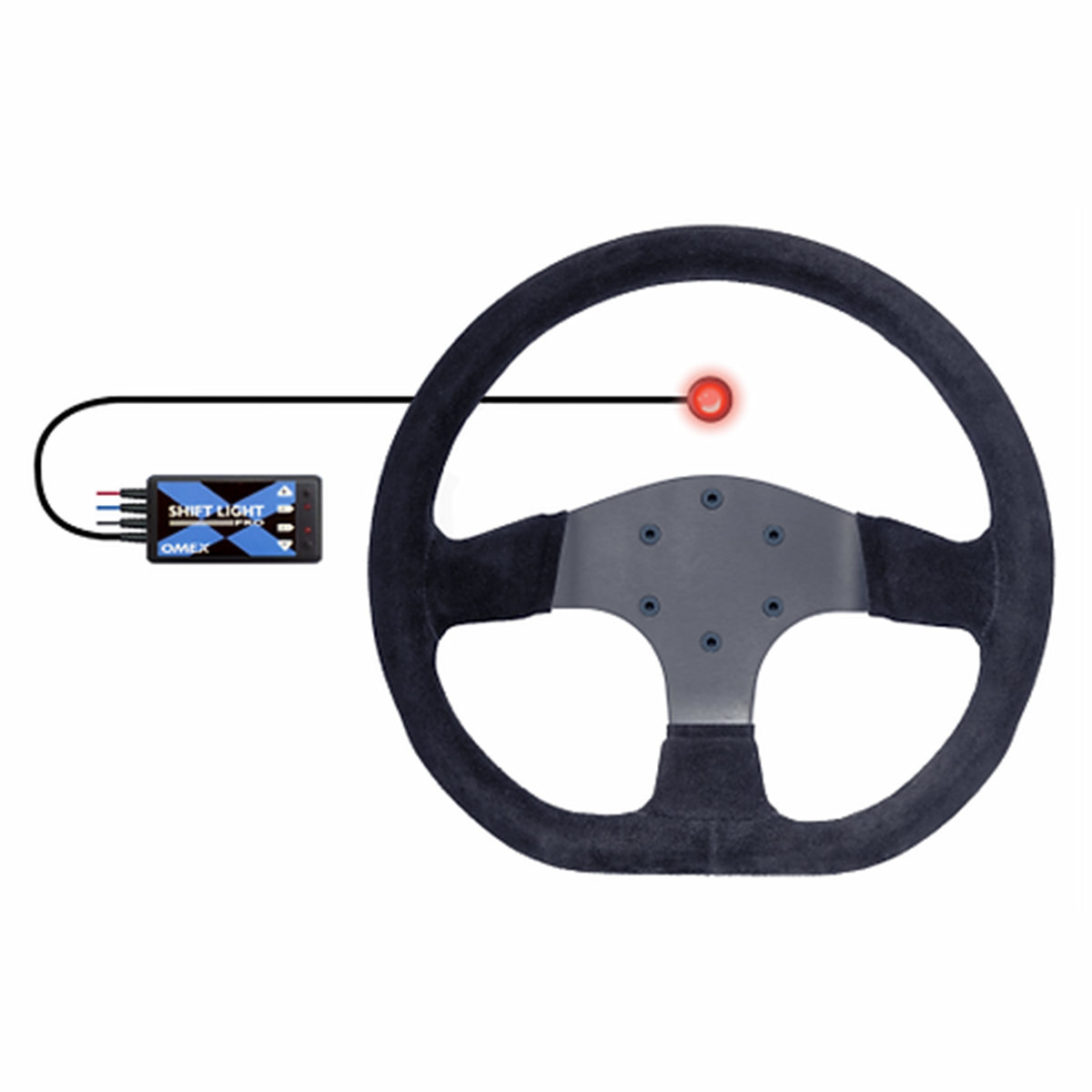

Its high-brightness, off-board LED can be mounted directly in the driver’s field of view, while the electronic control unit remains concealed behind the dashboard. This design facilitates its integration into competition cockpits where space is limited, while maintaining a discreet installation on modified street vehicles.
Omex’s exclusive digital adjustment allows the trigger RPM to be programmed with a resolution of 100 RPM, ensuring simple and highly precise calibration (±10 RPM at 6,000 RPM) without being affected by any inaccuracies in the rev-counter.
Manufactured in the United Kingdom at an ISO 9000-certified facility, the Shift Light Pro benefits from Omex’s more than 25 years of experience in developing electronics systems for motorsports. Each unit is individually tested before shipment, and its epoxy-encapsulated housing ensures excellent resistance to vibrations, water splashes, impacts, and electromagnetic interference.
⚠️ Installation: This product requires knowledge of automotive electrical systems and the ability to identify the vehicle’s various electrical circuits. A basic wiring diagram is included with the product, but the vehicle-specific wiring diagram may be necessary to ensure a proper installation.
Technical Specifications
Brand: Omex Technology
Type: Electronic Shift Light
Functionality:
- High-brightness LED shift shifting indicator

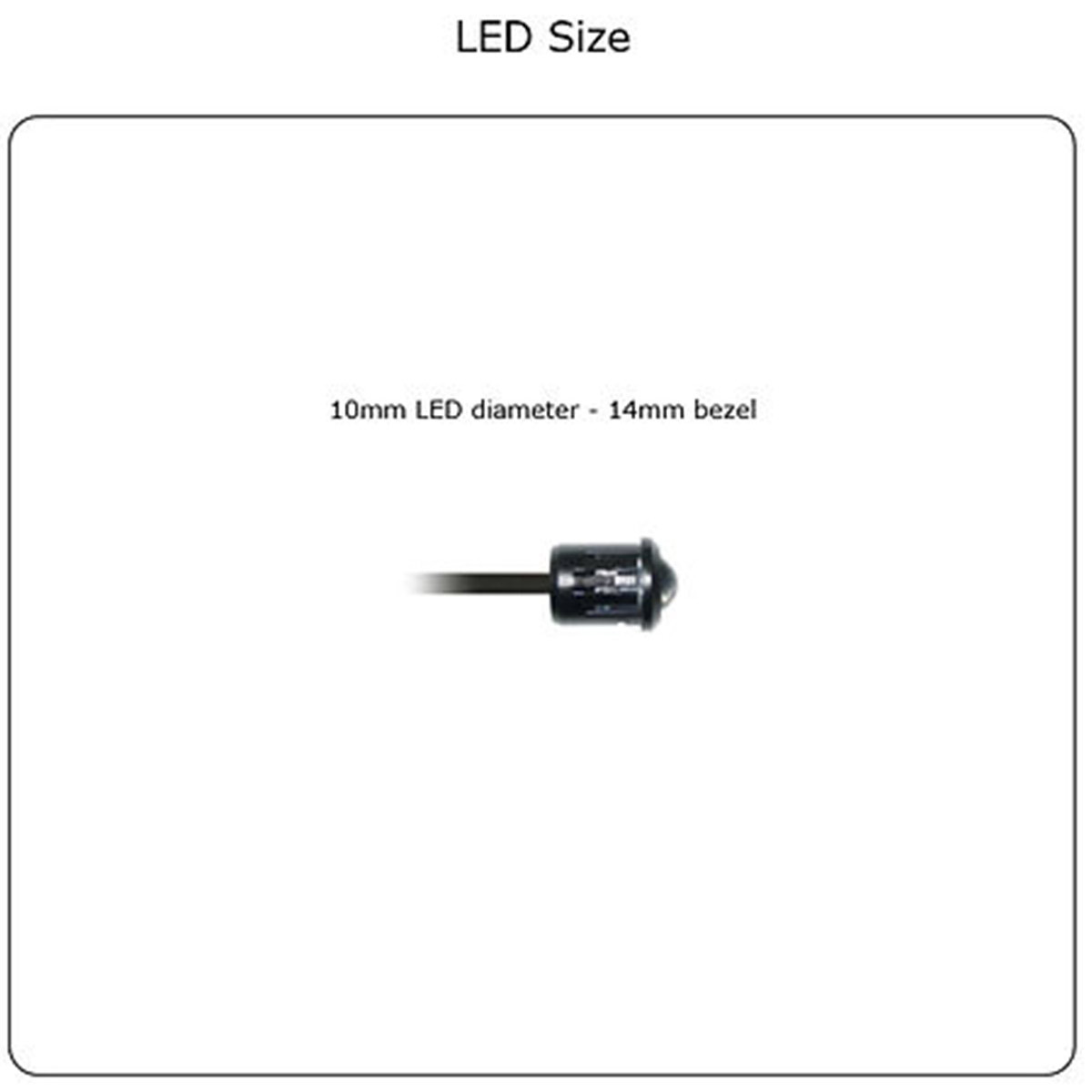

- Offset LED for discreet installation
- Digital adjustment
- Adjustable in 100 rpm increments
- Accuracy: ±10 rpm at 6,000 rpm
Revolutions range:
- 2 cylinders: 1,000 to 20,000 rpm
- 4 cylinders: 1,000 to 20,000 rpm
- 6-cylinder: 1,000 to 12,000 rpm
- 8-cylinder: 1,000 to 10,000 rpm
Compatibility:
- Compatible with any engine revs signal from 0 to 12 V
- Triggered via the ignition coil control signal or the stock rev-counter signal
Not compatible with:
- Vehicles with positive ground
Construction:
- Manufactured in the UK
- ISO 9000-certified factory
- Housing filled with epoxy resin
- Individually tested
- Resistant to vibration, shock, and moisture
- Tested for electromagnetic interference
- Housing sizes: 82 × 40 × 22 mm
