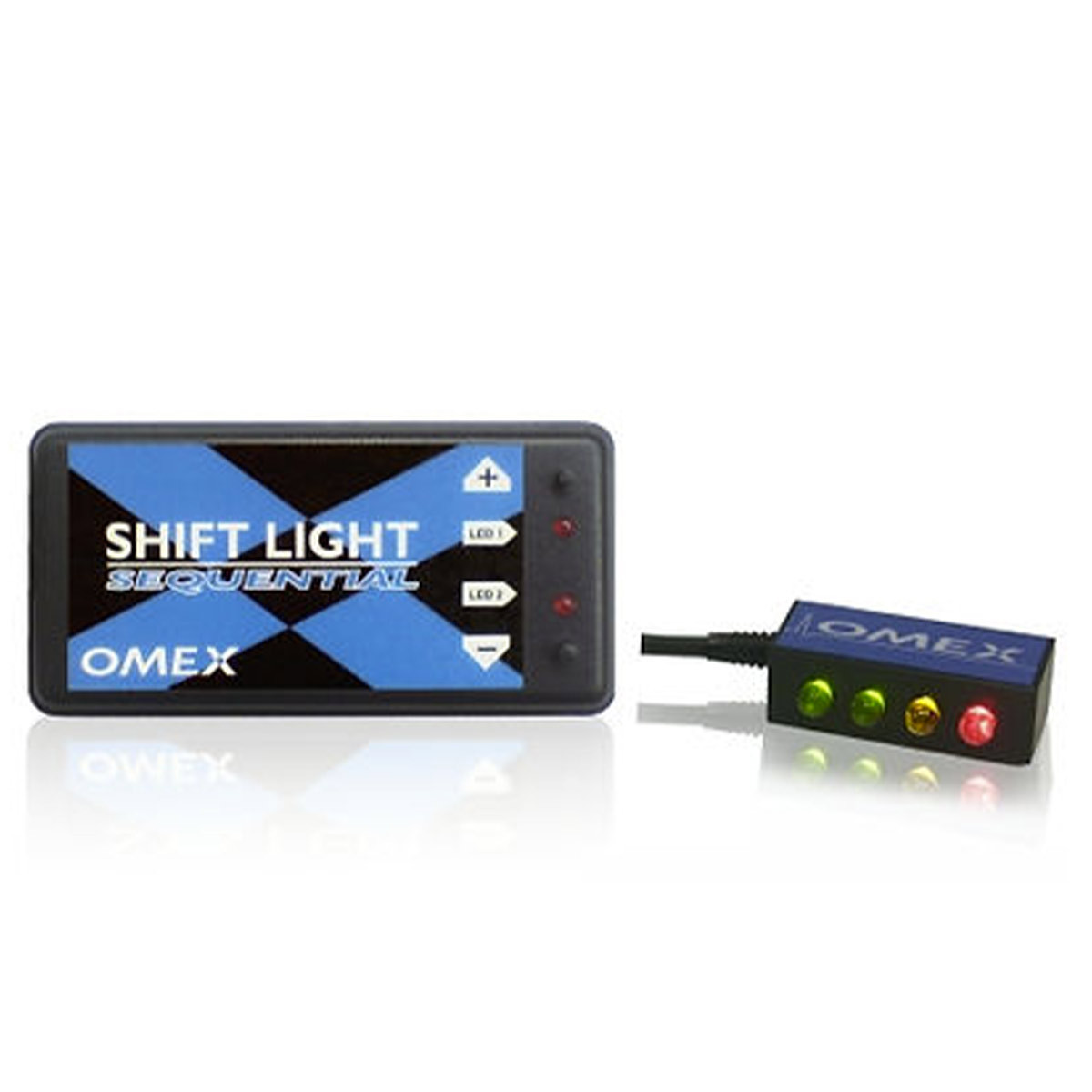

The Omex Sequential Shift Light OMSLS allows you to perform shift shifting at the ideal moment to fully harness your engine’s potential. Thanks to its 4 programmable sequential warning LEDs, it gradually alerts the driver as the engine approaches the set engine revs to ensure quick and smooth shift shifting.
Its digital settings allow you to program the trigger RPM as well as the LED firing intervals in 100 RPM increments, with an accuracy of ±10 RPM at 6,000 RPM.
The remote LED module makes it easy to integrate into even the most compact dashboards and offers discreet mounting, ideal for both race cars and street-tuned vehicles.
Manufactured in the United Kingdom at an ISO 9000-certified facility, each unit is individually tested before release. Its epoxy-filled housing ensures excellent resistance to vibration, shock, and moisture.
Technical Specifications
Brand: Omex Technology
Type: Sequential LED Shift Light
Operation:
- Programmable sequential warning LEDs
- Digital adjustment
- Adjustable in 100 rpm increments
- Accuracy: ±10 rpm at 6,000 rpm
Revolutions range:
- 2 cylinders: 1,000 to 20,000 rpm
- 4 cylinders: 1,000 to 20,000 rpm
- 6-cylinder: 1,000 to 12,000 rpm
- 8-cylinder: 1,000 to 10,000 rpm
Compatibility:
- Triggered by a 0 to 12 V engine revs signal
- Compatible with the ignition coil control signal or the stock rev-counter signal
Not compatible with:
- Vehicles with positive ground
Construction:
- Manufactured in the UK
- ISO 9000-certified factory
- Housing filled with epoxy resin
- Individually tested product
- Housing sizes: 82 × 40 × 22 mm
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
